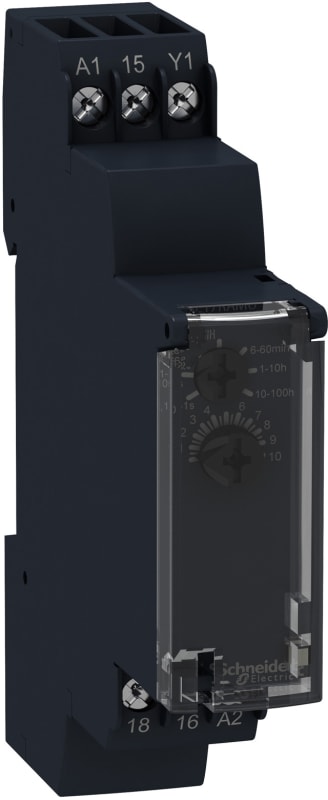

Schneider Electric Modular timing relay, 0.7 A, 1 CO, 1 S..100 h, on delay, solid state output, 24..240 V AC/DC RE17LAMW

Schneider Electric RE17LAMW Time relay 17,5mm with zinc-plated tiltrekk 0,1s-100t solid state output 24-240VAC/DC.

Manufacturer part number (MPN)

RE17LAMW EAN / GTIN: 3606480552625 HS code: 8536.90 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Timer Relays Discrete output type: Solid state Width: 17.5 mm Product or component type: Modular timing relay Component name: RE17L Time delay range: 1...10 s; 10...100 h; 6...60 s; 0.1...1 s; 1...10 min; 6...60 min; 1...10 h nominal output current: 0.7 A Height: 90 mm Depth: 72 mm Control type: Selector switch front panel [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz Voltage range: 0.85...1.1 Us Supply frequency: 50...60 Hz +/- 5 % control signal pulse width: 0.05 s typical Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1 [Uimp] rated impulse withstand voltage: 5 kV during 1.2/50 µs power on delay: 100 ms Connections - terminals: Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Dielectric strength: 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 Housing material: Polycarbonate Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1 Temperature drift: +/- 0.05 %/°C Voltage drift: +/- 0.2 %/V Setting accuracy of time delay: +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 Time delay type: Power on-delay - A- Power on-delay relay Reset time: 350 ms on de-energisation typical On-load factor: 100 % Power consumption in VA: 0…3 VA at 240 V AC Maximum power consumption in W: 1.5 W at 240 V DC Breaking capacity: 0.5 A AC/DC conforming to UL; 0.7 A AC/DC at 20 °C operating frequency: 10 Hz Maximum output current: 20 A minimum switching current: 10 mA Maximum leakage current: 5 mA Maximum switching voltage: 250 V AC/DC Maximum voltage drop: <4 V 3-wire; <8 V 2-wire Electrical durability: 100000000 cycles Marking: CE Creepage distance: 4 kV/3 conforming to IEC 60664-1 Safety reliability data: MTTFd = 353.8 years; B10d = 320000 Mounting position: Any position in relation to normal vertical mounting plane Mounting support: 35 mm DIN rail conforming to IEC 60715 Function available: A- Power on-delay relay-1 solid state output Product weight: 0.068 kg Functionality: On-delay timing Number of functions: 1 Compatibility code: RE17 Immunity to microbreaks: 20 ms Derating factor: 5 mA/°C Standards: 2004/108/EC; IEC 61000-6-1; 2006/95/EC; IEC 61000-6-3; IEC 61000-6-2; IEC 61812-1; IEC 61000-6-4 Product certifications: GL; CSA; cULus Ambient air temperature for storage: -30…60 °C Ambient air temperature for operation: -20…60 °C IP degree of protection: IP20 (terminal block) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP50 (front panel) conforming to IEC 60529 Vibration resistance: 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 93 % without condensation conforming to IEC 60068-2-30 Electromagnetic compatibility: Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2; Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5; Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6; Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11; Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11; Conducted and radiated emissions: , class B, conforming to EN 55022 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606480552625
• SAP 1000472232
• Code 8941361
