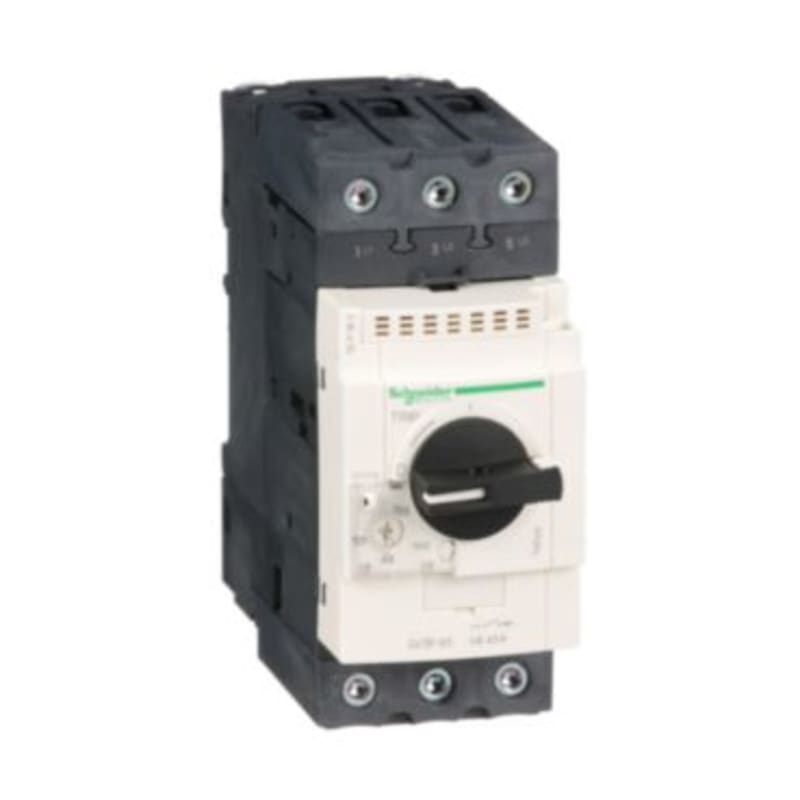

Schneider Electric Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals GV3P65

Schneider Electric GV3P65.

Manufacturer part number (MPN)

GV3P65

EAN / GTIN

3389119405416

HS code

8536.90

Sales unit

pcs

Setting range

48-65 A

Range

TeSys Deca

Product name

TeSys GV3

Product or component type

Motor circuit breaker

Device short name

GV3P

Device application

Motor protection

Trip unit technology

Thermal-magnetic

Poles description

3P

Network type

AC

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Motor power kW

30 kW at 400/415 V AC 50/60 Hz; 45 kW at 500 V AC 50/60 Hz; 55 kW at 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Rotary handle

[In] rated current

65 A

Thermal protection adjustment range

48…65 A conforming to IEC 60947-2

Magnetic tripping current

910 A

[Ith] conventional free air thermal current

65 A conforming to IEC 60947-2

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Suitability for isolation

Yes conforming to IEC 60947-1

Power dissipation per pole

8 W

Mechanical durability

50000 cycles

Electrical durability

50000 cycles for AC-3 at 415 V In

Rated duty

Uninterrupted conforming to IEC 60947-4-1

Tightening torque

5 N.m - on screw clamp terminal

Fixing mode

35 mm symmetrical DIN rail: clipped; Panel: screwed (with 3 x M4 screws)

Mounting position

Horizontal; Vertical

Width

55 mm

Height

132 mm

Depth

136 mm

Product weight

0.96 kg

Colour

Dark grey

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ

Product certifications

CCC; UL; CSA; EAC; ATEX; LROS (Lloyds register of shipping); BV; ABS; DNV-GL; UKCA

IK degree of protection

IK09 enclosure

IP degree of protection

IP20 conforming to IEC 60529

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60 °C

Mechanical robustness

Shocks: 15 Gn for 11 ms contactor open; Shocks: 30 Gn for 11 ms contactor closed; Vibrations: 4 Gn, 5...300 Hz

Operating altitude

3000 m

Number of Units in Package 1

1

Number of Units in Package 2

120

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
