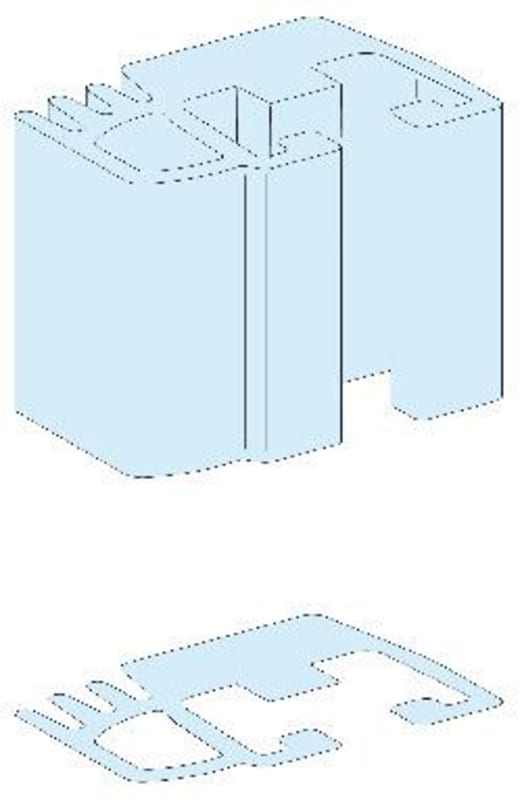

Busbar-vertical-Linergy-LGYE 1250A (LVS04505)

Schneider Electric LVS04505 Busbar-vertical-Linergy-LGYE for mounting in PrismaSeT P- length 1670mm- 1250A.

Manufacturer part number (MPN)

LVS04505

EAN / GTIN

3606481870346

Sales unit

pcs

Package quantity

4 pcs

Rated current

1250 A

Range

Linergy

Range of product

Linergy

Product or component type

Profile busbar

Product name

Linergy LGY

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Linergy

Quantity per set

Set of 1

Installation direction

Vertical, operating position: rear; Vertical, operating position: lateral

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm

[Ui] rated insulation voltage

1000 V

[Uimp] rated impulse withstand voltage

12 kV (degree of pollution: 3)

[Ie] rated operational current

1250 A

[Icw] rated short-time withstand current

25 kA (1 s) for 3 supports (rear position); 30 kA (1 s) for 4 supports (rear position); 40 kA (1 s) for 3 supports (lateral position); 40 kA (1 s) for 5 supports (rear position); 50 kA (1 s) for 4 supports (lateral position); 60 kA (1 s) for 5 supports (lateral position); 50 kA (1 s) for 7 supports (rear position)

Permissible current

1290 A at 35 °C: <= IP31; 1170 A at 35 °C: IP31

Busbar cross section

32.5 x 42.5 mm

Length

1670 mm

Product weight

3.38 kg

Colour

Natural

Type of busbar connection

Single t-slot

Connection pitch

Free connection position

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

80

Country of origin

FR

Warranty (in months)

18

Width

42.5 mm

Model

Profile

Height

32.5 mm

Flexible

No

Surface protection

Untreated

Rated current In

1250 A

HS Code

7604.29
