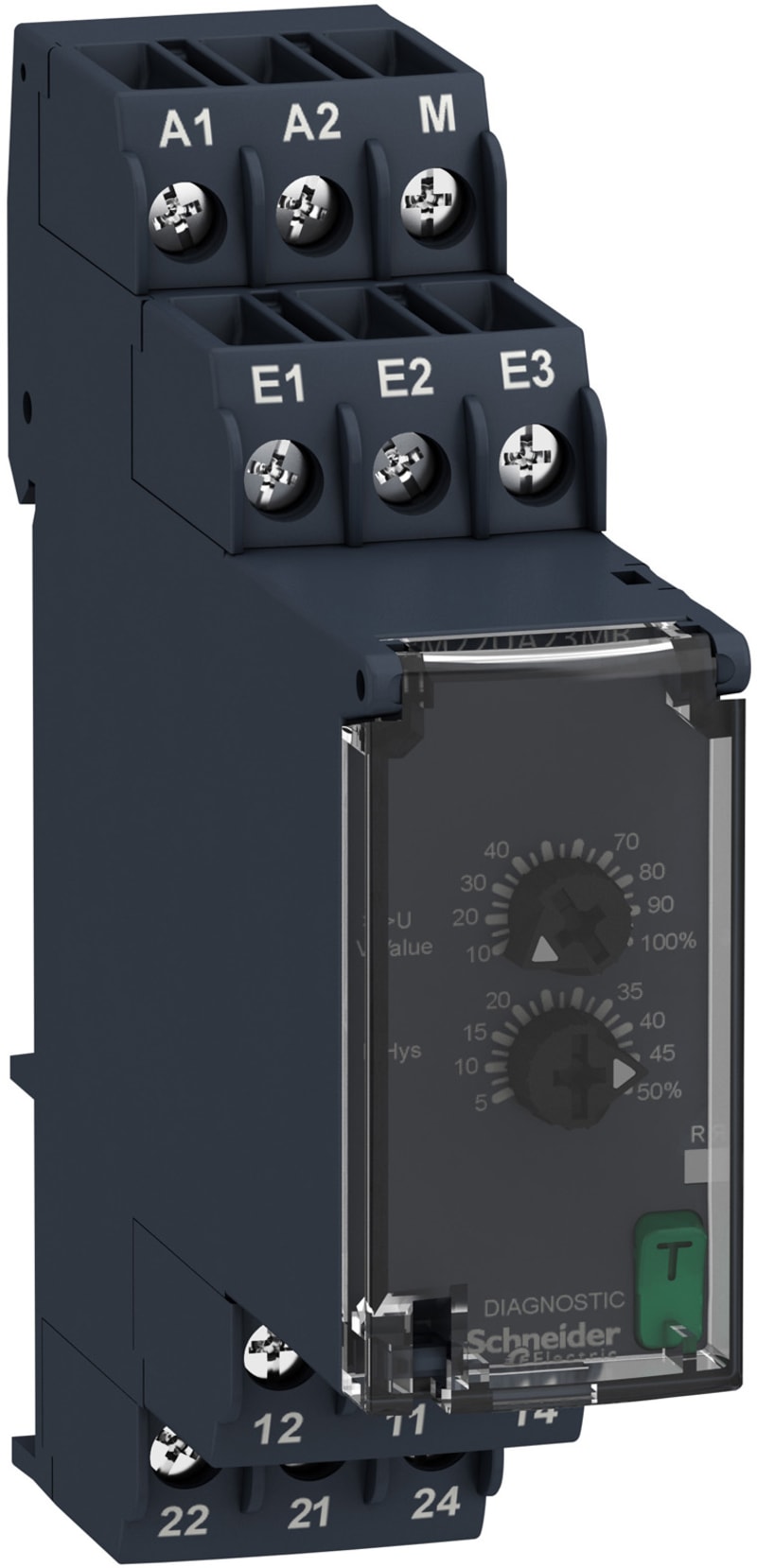

Schneider Electric Overvoltage Control Relay, 15 V-500 V AC/DC, 2 C/O

Schneider Electric RM22UA23MR Zelio control relay, overvoltage monitoring.

Manufacturer part number (MPN)

RM22UA23MR EAN / GTIN: 3606480792229 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: Voltage control relay Relay name: RM22UA Network number of phases: 1 phase Relay monitored parameters: Overvoltage detection Supply circuit type: DC Control type: With test button Contacts type and composition: 2 C/O [Us] rated supply voltage: 24-240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4-264 V AC/DC Measurement range: 15-500 V AC/DC Hysteresis: 5-50 % adjustable of threshold setting Repeat accuracy: +/- 0.5 % for input and measurement circuit Measurement error: < 1 % over the whole range with voltage variation; 0.05 %/°C with temperature variation Time delay type: Without Reset time: 1500 ms at maximum voltage Response time: <= 500 ms Power on delay: 600 ms Output contacts: 2 C/O nominal output current: 8 A Maximum switching voltage: 250 V AC Switch

HS Code

8536.49

• EAN 3606480792229
• SAP 1000713430
• Code 8436844
