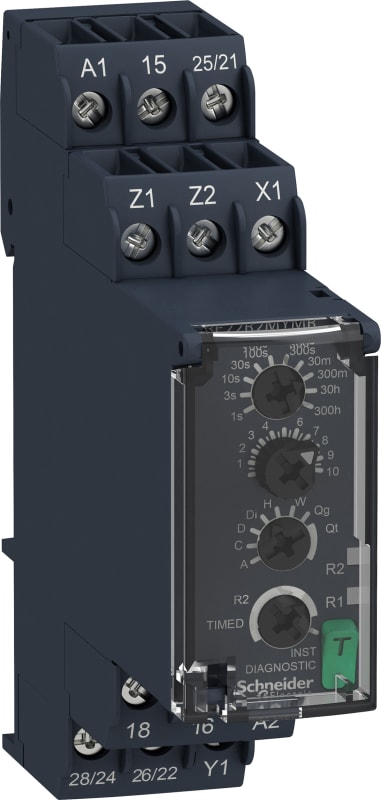

Schneider Electric Modular timing relay, 8 A, 2 CO, 0.05S…300H, multifunction, 24...240 V AC/DC RE22R2MYMR

Schneider Electric RE22R2MYMR — Modular timing relay, 8 A, 2 CO, 0.05s…300h, multifunction, 24.240 V AC/DC.

Manufacturer part number (MPN)

RE22R2MYMR EAN / GTIN: 3606480792533 HS code: 8536.90 Sales unit: pcs Range of product: Harmony Timer Relays Discrete output type: Relay Product or component type: Modular timing relay Device short name: RE22 nominal output current: 8 A Contacts type and composition: 1 C/O timed or instantaneous contact, cadmium free; 2 C/O timed contact, cadmium free Time delay type: Power on-delay; Off-delay; Symmetrical flashing; Interval; Star-delta Time delay range: 3...30 min; 30...300 min; 0.3...3 s; 3...30 h; 10...100 s; 1...10 s; 0.05...1 s; 30...300 s; 30...300 h; 3...30 s Control type: Rotary knob; Diagnostic button; Potentiometer external [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz Release input voltage: <= 2.4 V Voltage range: 0.85...1.1 Us Supply frequency: 50...60 Hz +/- 5 % Connections - terminals: Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1 Temperature drift: +/- 0.05 %/°C Voltage drift: +/- 0.2 %/V Setting accuracy of time delay: +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 Control signal pulse width: 100 ms with load in parallel; 30 ms Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1 Recovery time: 120 ms on de-energisation Immunity to microbreaks: 10 ms Power consumption in VA: 3 VA at 240 V AC Power consumption in W: 1.5 W at 240 V DC Switching capacity in VA: 2000 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 8 A Maximum switching voltage: 250 V AC Electrical durability: 100000 cycles, 8 A at 250 V, AC-1; 100000 cycles, 2 A at 24 V, DC-1 Mechanical durability: 10000000 cycles Rated impulse withstand voltage: 5 kV for 1.2…50 µs conforming to IEC 60664-1 Power on delay: 100 ms Creepage distance: 4 kV/3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Safety reliability data: B10d = 160000; MTTFd = 171.2 years Mounting position: Any position Mounting support: 35 mm DIN rail conforming to IEC 60715 Status LED: LED backlight green (steady) for dial pointer indication; LED yellow (steady) for output relay energised; LED yellow (fast flashing) for timing in progress and output relay de-energised; LED yellow (slow flashing) for timing in progress and output relay energised Function available: A- Power on-delay relay-2 C/O; At- Power on-delay relay w/ pause/summation (X1)-2 C/O; Aw- Power on-delay relay w/ retrigger/restart-2 C/O; C- Off-delay relay w/ control signal-2 C/O; Ct- Off-delay relay w/ control signal and pause/summation-2 C/O; D- Symmetrical flashing relay (starting pulse-off)-2 C/O; Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O; Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O; Di- Symmetrical flashing relay (starting pulse-on)-2 C/O; Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O; Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O; H- Interval relay-2 C/O; Ht- Interval relay w/ pause/summation (X1)-2 C/O; Hw- Interval relay w/ retrigger/restart-2 C/O; Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O; Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O; Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O; Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O; W- Interval relay w/ control signal off-2 C/O; Wt- Interval relay w/ control signal off and pause/summation-2 C/O Width: 22.5 mm Product weight: 0.105 kg Number of functions: 22 Dielectric strength: 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 Standards: UL 508; IEC 61812-1 Directives: 2004/108/EC - electromagnetic compatibility; 2006/95/EC - low voltage directive Product certifications: RCM; CE; EAC; CSA; CCC; UL; GL Ambient air temperature for operation: -20…60 °C Ambient air temperature for storage: -40…70 °C IP degree of protection: IP40 housing: conforming to IEC 60529; IP20 terminals: conforming to IEC 60529; IP50 front panel: conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Vibration resistance: 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn not operating for 11 ms conforming to IEC 60068-2-27; 5 gn in operation for 11 ms conforming to IEC 60068-2-27 Relative humidity: 95 % at 25…55 °C Electromagnetic compatibility: Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4; Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5; Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5; Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3; Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6; Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4; Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11; Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 2.6 cm Package 1 Width: 8.2 cm Package 1 Length: 9.5 cm Package 1 Weight: 116.0 g Unit Type of Package 2: S02 Number of Units in Package 2: 40 Package 2 Height: 15.0 cm Package 2 Width: 30.0 cm Package 2 Length: 40.0 cm Package 2 Weight: 5.153 kg Unit Type of Package 3: P06 Number of Units in Package 3: 640 Package 3 Height: 75.0 cm Package 3 Width: 60.0 cm Package 3 Length: 80.0 cm Package 3 Weight: 74.24 kg Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606480792533
• SAP 1000713412
• Code 8436820
