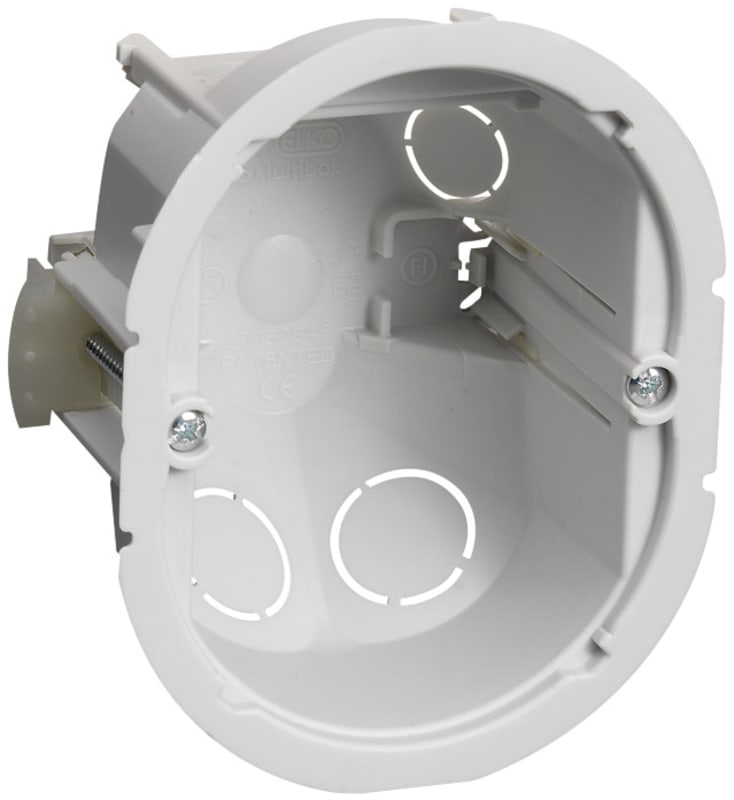

WALL BOX 57/46-1,5 Corrugated
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT36026 Spes.Wall box 1,5 f/corrugated.pipe.
Technical Specifications
- Manufacturer part number (MPN)
- IMT36026
- EAN / GTIN
- 7332418016933
- Sales unit
- pcs
- Package quantity
- 50 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Oval
- Construction type
- Device connection box (round/square)
- Model
- One and a half
- Provided with revolving ring
- No
- Couplable
- No
- Equipped with
- None
- Length
- 98 mm
- Width
- 58 mm
- Depth
- 57 mm
- Inner depth
- 55 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- Suitable for cable diameter
- 16–20 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- No
- Number of inlets
- 4
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP20
- Transparent cover
- No
- Cover attachment
- Screwed
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Max. conductor cross section
- 2.5 mm²
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- No
- Special application
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 7332418016933
- SAP 1000002852
- Code 822004
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV5, 3P, 220A, Icu 36KA, thermal magnetic GV5P220F
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 2P, 2A, C curve, 6KA (IEC/EN 60947-2) A9N61522
Schneider Electric
Sign Holder for sign 8X27MM
ZBZ32
Schneider Electric
Interpact INS80, 4P (28905)
Schneider Electric

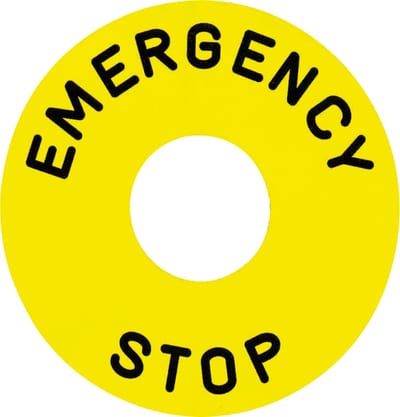

Sign Yellowt Ø60 Emergency STOP
ZB2BY9330
Schneider Electric

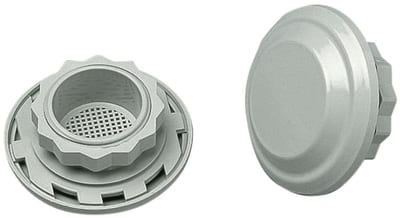

Schneider Electric NSYCAG38LP Airing grille cut-out diameter 38mm IP45
Schneider Electric

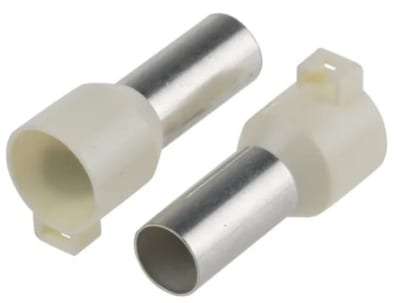

END Ferrule 16 mm² SHORT with Collar
DZ5CA162
Schneider Electric

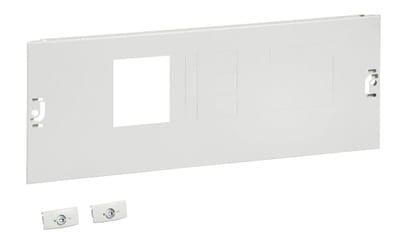

Front plate NSX250 4P Horizontal-PrismaSeT
