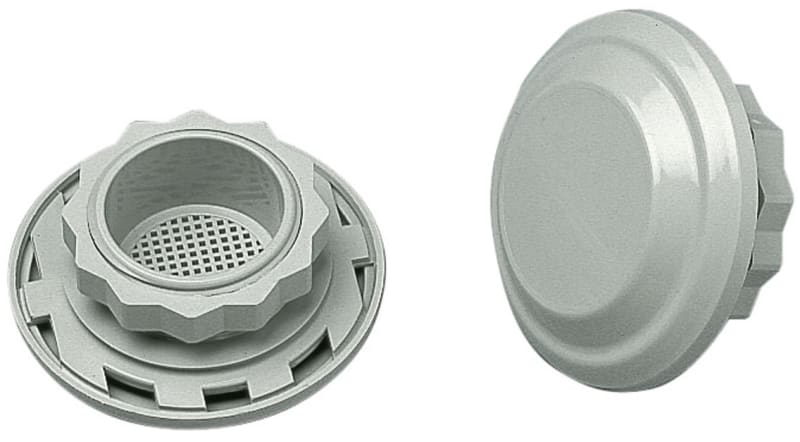

Schneider Electric NSYCAG38LP Airing grille cut-out diameter 38mm IP45
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYCAG38LP Airing grille cut-out diameter 38mm IP45 is listed under Enclosures / Enclosure Cooling. Sales unit: pcs; Package quantity: 2 pcs; Range: ClimaSys; Product: ClimaSys CA; Range compatibility: PanelSeT PLA; PanelSeT PLM; PanelSeT TBS; Product or component type: Plastic ventilation louvre.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCAG38LP
- EAN / GTIN
- 3606480151897
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- ClimaSys
- Product
- ClimaSys CA
- Range compatibility
- PanelSeT PLA; PanelSeT PLM; PanelSeT TBS
- Product or component type
- Plastic ventilation louvre
- Accessory / separate part category
- Thermal management accessory
- Accessory / separate part destination
- ClimaSys ventilation system
- fixing mode
- By screws
- Device composition
- 2 plastic louvre
- Material
- ASA + PC
- Colour
- Grey (RAL 7035)
- Cut-out dimensions
- 38 mm
- Height
- External: 63 mm
- Width
- External: 63 mm
- Depth
- Thread : 15 mm
- IP degree of protection
- IP45
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 11.000 cm
- Package 1 Weight
- 58.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 200
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 12.282 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 1600
- Package 3 Height
- 97.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 111.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Suitable for enclosure building width
- 38 mm
- Suitable for enclosure building depth
- 800 mm
- For max. number of fans
- 1
- Diameter
- 38 mm
- With built-in filter
- No
- Degree of protection (IP)
- IP45
- Surface finishing
- Untreated
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480151897
- SAP 1000088969
- Code 8581270
Product Documentation
More from Schneider Electric
Schneider Electric
END Ferrule 16 mm² SHORT with Collar
DZ5CA162
Schneider Electric
Front plate NSX250 4P Horizontal-PrismaSeT
LVS03606
Schneider Electric

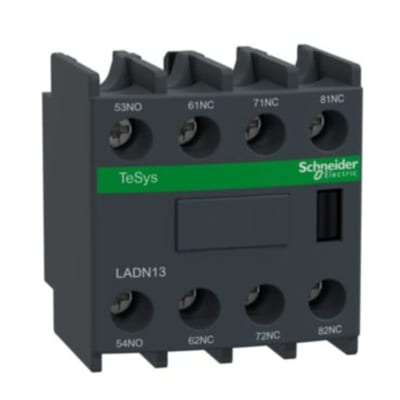

Schneider Electric Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals LADN13
Schneider Electric

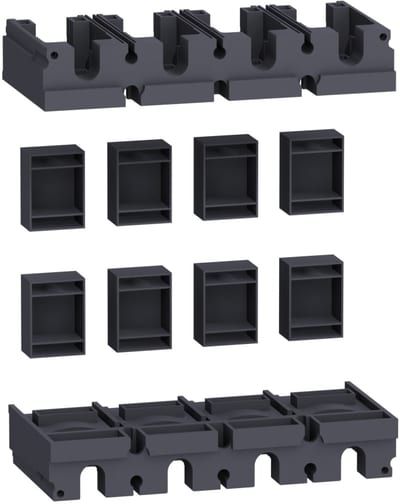

Connection Adapter PI-BASE 4P (LV429307)
Schneider Electric

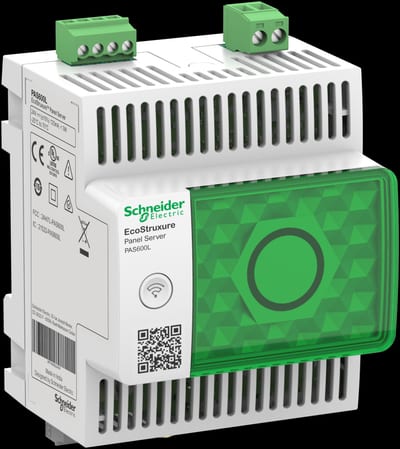

Schneider Electric EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC PAS600L
Schneider Electric

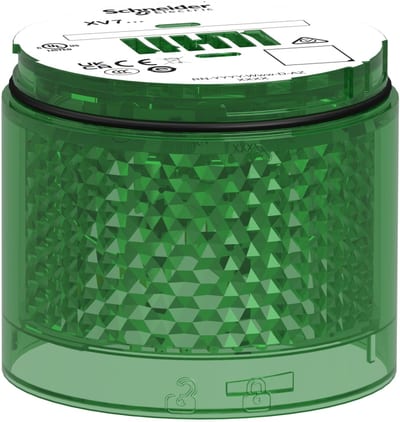

Light Unit with fast LED in green
