Light Unit with fast LED in green
Pricing
Request a quote
We reply within 24 hours
Product Description

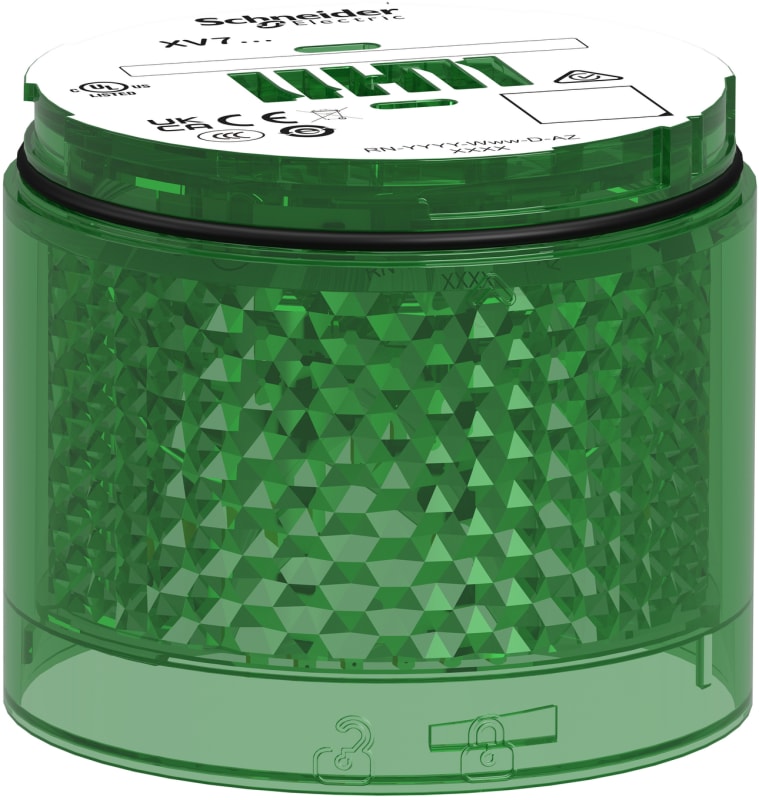

Schneider Electric XVB7C23 — Light Module, Harmony XVB7 Modular Tower Light, Green, Ø70mm, Steady, Colored Lens.
Technical Specifications
- Manufacturer part number (MPN)
- XVB7C23
- EAN / GTIN
- 3606487129288
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- Harmony XVB7
- Product or component type
- Light module
- Device composition
- Standard lens
- Device short name
- XVB7
- Mounting diameter
- 70 mm
- Signalling type
- Steady
- Light color
- LED, green
- Material
- PC (polycarbonate)
- Product weight
- 0.105 kg
- Mounting position
- Upright/inverted
- Service life in hours
- 50000 h
- [Ue] rated operational voltage
- 24 V AC/DC
- Rated operational voltage limits
- 21.6...26.4 V AC/DC
- Current consumption
- 35 mA at 24 V AC; 40 mA at 24 V DC
- Inrush current
- 0.5 A
- Electrical shock protection class
- Class II
- [Ui] rated insulation voltage
- 50 V
- [Uimp] rated impulse withstand voltage
- 0.5 kV
- Pollution degree
- 2
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…70 °C
- IP degree of protection
- IP66
- Environmental Type ratings
- UL type 4X/13
- Vibration resistance
- 6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation
- Shock resistance
- 30 gn (duration = 6 ms) for in operation
- Standards
- UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1
- Product certifications
- cULus; CCC; RCM; UKCA; CE
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.500 cm
- Package 1 Width
- 7.300 cm
- Package 1 Length
- 7.500 cm
- Package 1 Weight
- 105.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.763 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 480
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 61.000 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Colour
- Green
- Outer diameter
- 70 mm
- Function
- Continuous light
- Housing colour
- Green
- Voltage type
- AC/DC
- Lamp type
- LED
- Degree of protection (IP)
- IP66
- Operating voltage AC 50 Hz
- 21.6–26.4 V
- Operating voltage AC 60 Hz
- 21.6–26.4 V
- Operating voltage DC
- 21.6–26.4 V
- Repetition frequency settable
- No
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606487129288
- SAP 1200846256
- Code 84041243
