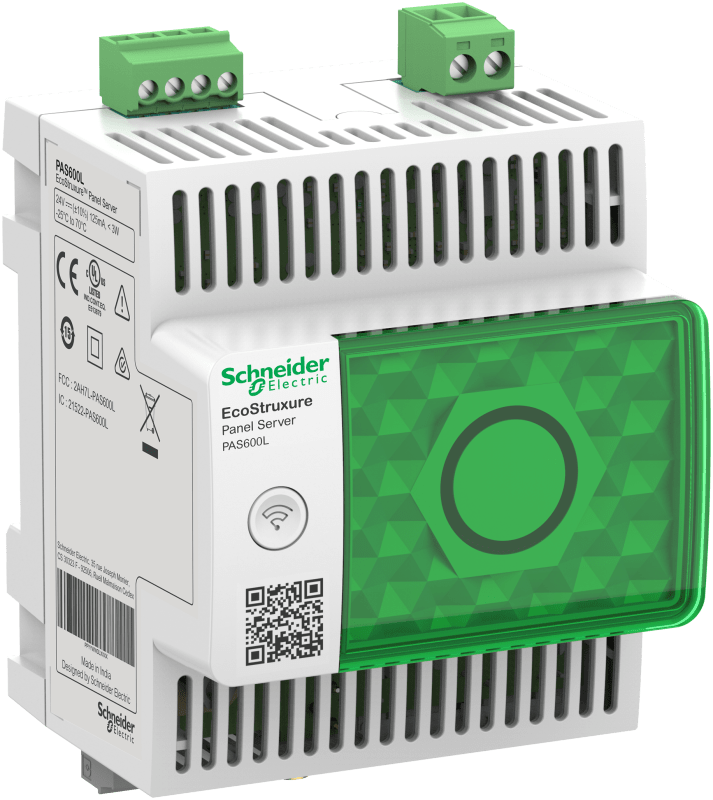

Schneider Electric EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC PAS600L

Schneider Electric PAS600L Panel Server - universal wireless, konsentrator modbus gateway 24 VDC.

Manufacturer part number (MPN)

PAS600L

EAN / GTIN

3606481014320

Sales unit

pcs

Package quantity

27 pcs

Voltage

24 V DC

Range

EcoStruxure

Product name

Panel Server Universal

Product or component type

Gateway

Device short name

PAS600L

Device application

Gateway

[Us] rated supply voltage

24 V DC

Communication gateway

Ethernet TCP/IP to wireless devices; Ethernet/serial

Product compatibility

Wireless access point

Communication port protocol

Modbus TCP; DHCP; HTTPS; NTP/SNTP; IPv4; IPv6; TCP/IP

Communication port support

2 RJ45: ETHERNET; Screw terminal block: RS485

Number of server device(s)

32 Modbus RTU product(s) ; 128 Modbus TCP/IP product(s) ; 40 wireless (IEEE 802.15.4) product(s) - mixed; 85 wireless (IEEE 802.15.4) product(s) - depending on configuration

Number of devices

64 Modbus TCP/IP

Number of inputs

2 digital

Connections - terminals

Discrete I/O: screw terminal block (top) 0.14…1.5 mm² cable(s) ; Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) ; Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s)

Tightening torque

Discrete I/O: 0.25 N.m; Power supply: 0.6 N.m; Communication: 0.25 N.m

Wire stripping length

Power supply: 7 mm; Communication: 7 mm; Discrete I/O: 7 mm

mounting mode

Clip-on

Mounting support

DIN rail

Product certifications

CE; cULus; CB; RCM; UKCA; FCC; IC; DNV Marine; ANSI RF; IACS E10

Standards

IEC 61010; IEC 61010-1; IEC 61010-2-201; UL 61010; UL 61010-1; UL 61010-2-201; EN 61010-1; EN 61010-2-201; CAN/CSA C22.2 No. 61010-1-12; CAN/CSA C22.2 No. 61010-2-201; IEC 62974-1; IEC 61326-1; EN 61326-1; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 301-893; EN 55032; CISPR 11; ETSI EN 300 328; IEEE 802.15.4; IEEE 802.11a/b/g/n; IEEE 802.3 of/at; FCC CFR 47 part 15 class A; EN 62311; IEC 62311; ANSI C63.10; IEC 60945; EN 62974-1; DNVGL-GC-0339

Depth

70.2 mm

Height

93 mm

Width

72 mm

Product weight

181 g

Data recording

Real time data monitoring

Function available

Embedded web page for configuration and upgrade; Diagnosis capabilities; Diagnostic report; Diagnostics on communication; Energy management; With integrated web server; Firmware update; Backup/restore configuration; Configurable event

Product specific application

Wireless Schneider Electric devices ecosystem

Topology

Separated Ethernet network; Switched Ethernet network

Web services

HTTPS server; SFTP publication (CSV / JSON); HTTPS publication (CSV / JSON)

Communication service

Device Profile for Web Services (DPWS); Modbus TCP client; Modbus TCP server; SNTP client; DHCP client; RSTP

Commissioning interface

EcoStruxure Power Commission desktop; EcoStruxure Power Commission Mobile (through Wi-Fi Access point); EcoStruxure Power Commission web (for third party device integration); Web page

Realtime clock

With RTC-battery set; With user calibration

Time synchronisation protocol

NTP; SNTP

Range compatibility

EcoStruxure Facility Expert; EcoStruxure Building Operation; EcoStruxure Power Operation; EcoStruxure Power Monitoring Expert; EcoStruxure Asset Advisor; EcoStruxure Energy Hub; EcoStruxure Resource Advisor; Third party SCADA

Communication iinterface

Modbus and wireless (IEEE802.15.4) product

Relative humidity

5…95 %

IP degree of protection

IP40 (front face); IP20 (casing)

Ambient air temperature for operation

-25…70 °C at < 2000 m; -25…60 °C at 2000...4000 m

Derating factor

With temperature derating of -1 °C per 200 m 4000...5000 m

Ambient air temperature for storage

-40…85 °C

Pollution degree

3

Operating altitude

< 5000 m

Number of Units in Package 1

1

Number of Units in Package 2

27

Number of Units in Package 3

216

Country of origin

IN

Warranty (in months)

18

Mounting method

Built-in installation

Operating voltage

24 V

Voltage type

DC

Number of channels

1

Power consumption

3 W

Bus system KNX

No

Bus system radio frequency

Yes

Bus system Powernet

No

Width in number of modular spacings

4

Bus system LON

No

Demounting protection

No

Radio interface

Yes

IR interface

No

Protocol

TCP/IP

Provider dependent

No

Updateable

Yes

Visualization

No

Web-Server

Yes

Degree of protection (IP)

IP30

With LED indication

Yes

Bus system KNX-RF (Radio Frequency)

No

Radio frequency bidirectional

Yes

Max. number of devices per channel

128

HS Code

8517.62
