Schneider Electric
Parallell Kablingsmodul MOD. U
Part numberLUFC00EAN / GTIN3389110365504HS code9028.30
Control & Automation
Fieldbus I/O
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

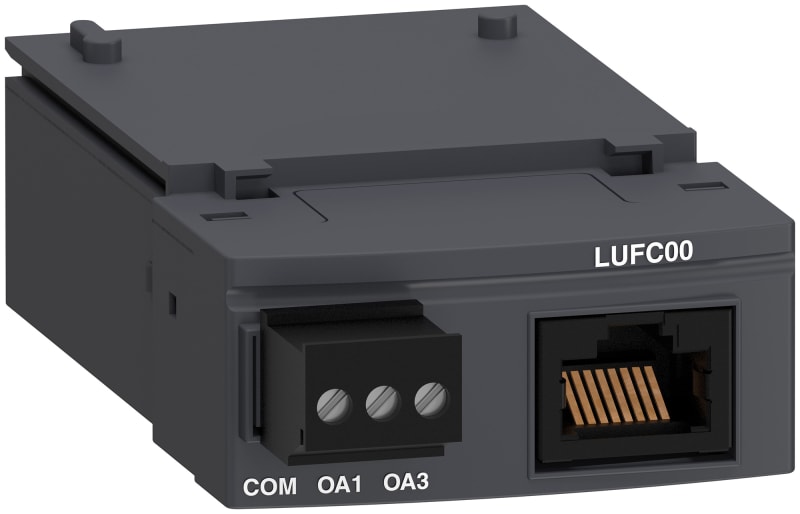

Schneider Electric LUFC00 Parallell Kablingsmodul MOD. U.
Technical Specifications
- Manufacturer part number (MPN)
- LUFC00
- EAN / GTIN
- 3389110365504
- Sales unit
- pcs
- Package quantity
- 62 pcs
- Range
- TeSys
- Device short name
- LUF
- Product or component type
- Parallel wiring module
- Product compatibility
- LUCM; LUCD; LUCA; LUCL; LUCB; LUCC
- mounting mode
- Plug-in
- Mounting location
- Front side
- main function available
- Parallel wiring module
- Bus type
- Parallel
- Current consumption
- 1 mA
- Product weight
- 0.045 kg
- IP degree of protection
- IP20 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.3 cm
- Package 1 Width
- 4.8 cm
- Package 1 Length
- 9.5 cm
- Package 1 Weight
- 46.0 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 62
- Package 2 Height
- 15.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 3.167 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard eGPRS
- No
- Radio standard GSM
- No
- Radio standard LTE
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- With potential separation
- Yes
- Fieldbus connection over separate bus coupler possible
- No
- Suitable for rail mounting
- No
- Wall mounting/direct mounting
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 45 mm
- Height
- 25 mm
- Depth
- 85 mm
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 3389110365504
- SAP 1000061455
- Code 8919562
