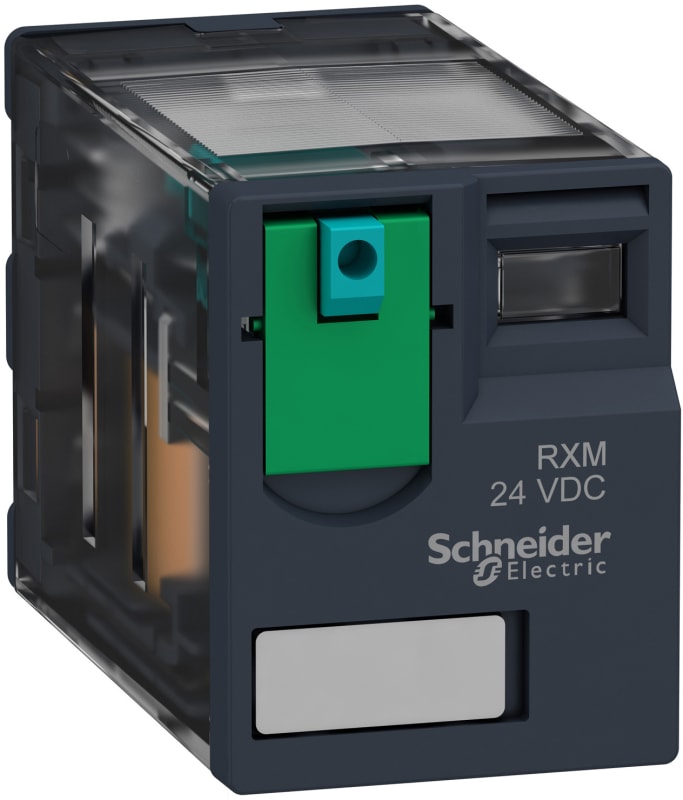

Schneider Electric Miniature plug-in relay, 6 A, 4 CO, 24 V DC RXM4AB1BD

With their compact size these relays are very versatile and easy to integrate into existing applications.

Manufacturer part number (MPN)

RXM4AB1BD EAN / GTIN: 3389119403719 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 24 V DC Range of product: Harmony Electromechanical Relays Series name: RXM series Product or component type: Plug-in relay Relay type: Miniature relay Contacts type and composition: 4 C/O status LED: Without Control type: Lockable test button [Uc] control circuit voltage: 24 V DC [Ithe] conventional enclosed thermal current: 6 A Continuous output current: 5 A [Uimp] rated impulse withstand voltage: 2.5 kV during 1.2/50 µs [Ie] rated operational current: 3 A at 28 V (DC) NC conforming to IEC; 3 A at 250 V (AC) NC conforming to IEC; 6 A at 28 V (DC) NO conforming to IEC; 6 A at 250 V (AC) NO conforming to IEC; 6 A at 277 V (AC) conforming to UL; 8 A at 30 V (DC) conforming to UL minimum switching capacity: 170 mW at 10 mA, 17 V Electrical durability: 100000 cycles for resistive load Rated operational voltage limits: 19.2...26.4 V DC [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL Maximum switching voltage: 250 V conforming to IEC Drop-out voltage threshold: >= 0.1 Uc Load current: 6 A at 250 V AC; 6 A at 28 V DC Operating time: 20 ms Maximum switching capacity: 1500 VA/168 W Average resistance: 650 Ohm at 20 °C +/- 10 % Average coil consumption: 0.9 W Mechanical durability: 10000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 1200 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % CAD overall height: 79 mm CAD overall depth: 78.45 mm Reset time: 20 ms Dielectric strength: 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation Compatibility code: RXM Protection category: RT I Pollution degree: 2 Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Contacts material: AgNi Shape of pin: Flat (faston type) Product weight: 0.037 kg Ambient air temperature for operation: -40…55 °C IP degree of protection: IP40 conforming to IEC 60529 Standards: UL 508; IEC 61810-1; CSA C22.2 No 14 Product certifications: UL; Lloyd's; CE; CSA; GOST; IECEE CB Scheme Ambient air temperature for storage: -40…85 °C Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation; 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating Shock resistance: 10 gn for in operation; 30 gn for not operating Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3389119403719
• SAP 1000056322
• Code 8848125
