AC Nettdrossel 0,3MH 100A

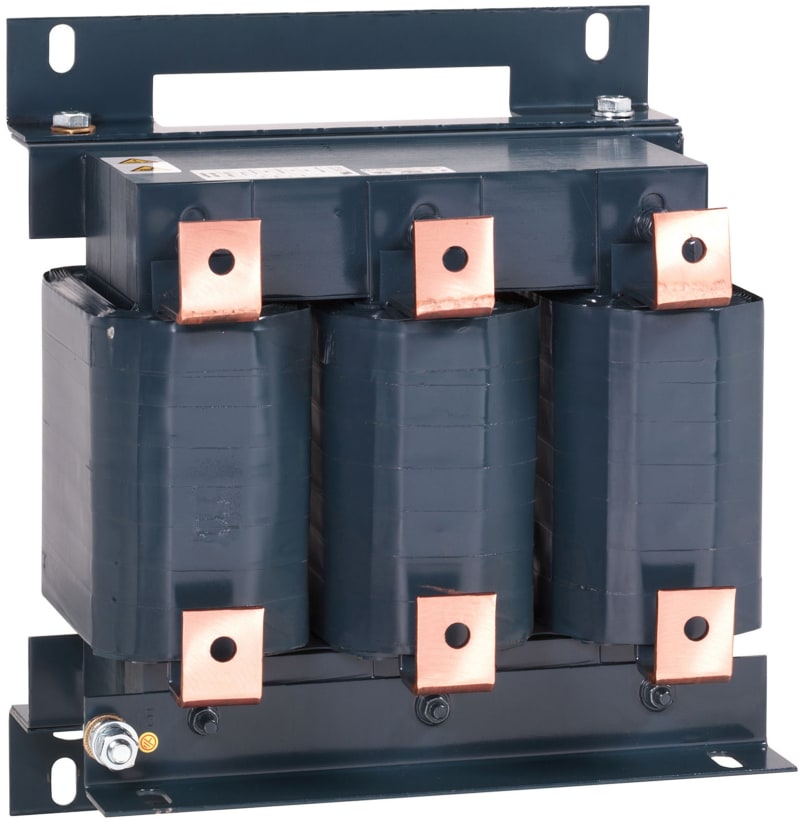

Schneider Electric VW3A4556 AC nettdrossel 0,3MH 100A.

Manufacturer part number (MPN)

VW3A4556 EAN / GTIN: 3389118066045 Sales unit: pcs Rated current: 100 A Range of product: Altivar Product or component type: Line/motor choke Product compatibility: ATV71HD75Y - line choke - 1 per drive; Variable speed drive ATV340 motor: 22 kW 380...480 V - line choke - 1 per drive; ATV61HD15M3X - line choke - 1 per drive; ATV61HD30N4 - line choke - 1 per drive; ATV61HD37N4 - line choke - 1 per drive; ATV61HD45N4 - line choke - 1 per drive; ATV61HD55N4 - line choke - 1 per drive; ATV61HD55Y - line choke - 1 per drive; ATV61HD75Y - line choke - 1 per drive; ATV61HD90Y - line choke - 1 per drive; ATV61WD30N4 - line choke - 1 per drive; ATV61WD30N4C - line choke - 1 per drive; ATV61WD37N4 - line choke - 1 per drive; ATV61WD37N4C - line choke - 1 per drive; ATV61WD45N4 - line choke - 1 per drive; ATV61WD45N4C - line choke - 1 per drive; ATV61WD55N4 - line choke - 1 per drive; ATV61WD55N4C - line choke - 1 per drive; ATV71HD15M3X - line choke - 1 per drive; ATV71HD30N4 - line choke - 1 per drive; ATV71HD37N4 - line choke - 1 per drive; ATV71HD45N4 - line choke - 1 per drive; ATV71HD55N4 - line choke - 1 per drive; ATV71HD55Y - line choke - 1 per drive; ATV71HD90Y - line choke - 1 per drive; ATV71WD30N4 - line choke - 1 per drive; ATV71WD37N4 - line choke - 1 per drive; ATV71WD45N4 - line choke - 1 per drive; ATV71WD55N4 - line choke - 1 per drive; Variable speed drive ATV320 motor: 11 kW 200...240 V - three phase - motor choke - 1 per drive; Variable speed drive ATV320 motor: 15 kW 200...240 V - three phase - motor choke - 1 per drive; Variable speed drive ATV630 motor: 55 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 75 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 90 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 55 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 75 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV930 motor: 90 kW 500...690 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 75 hp - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 100 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 100 hp - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 75 hp - 1 per drive number of phases: Three phase Range compatibility: Altivar Machine ATV340; Altivar Machine ATV320; Altivar 71; Altivar 61; Altivar Process ATV600; Altivar Process ATV900; Easy Altivar 310 Device application: Reduction of current harmonics; Reduction of overvoltages at motor terminals Value of inductance: 0.3 mH [In] rated current: 107 A Thermal losses: 260 W Electrical connection: Bare wires diameter: 6.5 mm power supply frequency: 50...60 Hz Max current: 1.65 x nominal current (duration = 60 s) Maximum voltage drop at rated load: 5 % Electrical insulation class: Class F minimum clearance distance: 5.5 mm IEC 60664 Leakage distance: 11.5 mm conforming to IEC 60664 Product weight: 16 kg Width: 270 mm Height: 210 mm Depth: 180 mm Standards: EN 50178; IEC 60076 (with HD398); VDE 0160 level 1 IP degree of protection: Choke: IP00; Terminals: IP00 Environmental characteristic: 3B1 conforming to IEC 721-3-3; 3C2 conforming to IEC 721-3-3; 3S1 conforming to IEC 721-3-3 Pollution degree: 2 conforming to EN 50178 Vibration resistance: 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 0…95 % Ambient air temperature for operation: 45…55 °C (with current derating of 2 % per °C); 0…45 °C (without current derating) Ambient air temperature for storage: -25…70 °C Operating altitude: <= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m Number of Units in Package 1: 1 Number of Units in Package 2: 2 Country of origin: CZ Warranty (in months): 18 Suitable as interference suppression reactance coil: No Suitable as net reactance coil: Yes Suitable as commutation reactance coil: No Suitable as ripple filter choke: No Suitable as output reactance coil: Yes Number of poles, primary side: 3 Rated operating frequency: 50–60 Hz Max. rated operation voltage Ue: 690 V Rated current AC: 100 A Rated inductance: 0.3 mH Degree of protection (IP): IP00 Relative short circuit voltage: 0 %
