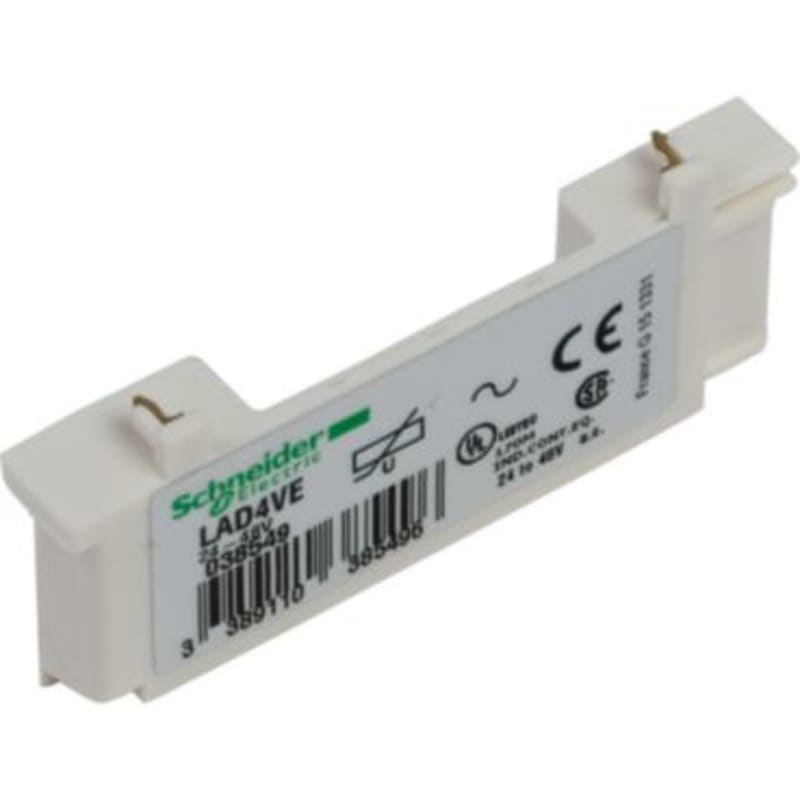

Schneider Electric TeSys D - suppressor module - varistor - 24...48 V AC LAD4VE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LAD4VE Varistor 24-48VAC.
Technical Specifications
- Manufacturer part number (MPN)
- LAD4VE
- EAN / GTIN
- 3389110385496
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24-48 V AC
- Range
- TeSys
- Device short name
- LAD4
- Product or component type
- Suppressor module
- Product compatibility
- 3P LC1D09...D38; 4P LC1DT20...DT40; 4P LC1D098...D258; CAD32, CAD50
- Mounting location
- Front; Front; Front; Front; Front; Front; Front; Front; Front; Front; Front; Front; Front
- mounting mode
- By clips
- Suppressor technology
- Varistor (peak limiting)
- [Uc] control circuit voltage
- 24...48 V AC
- Maximum peak voltage
- 2 Uc
- Product weight
- 0.012 kg
- Standards
- IEC 60947-5-1; EN 60947-5-1; CSA C22.2 No 60947-5-1; UL 60947-5-1; GB/T 14048.5
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to IEC 60529
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Number of Units in Package 3
- 1120
- Country of origin
- FR
- Warranty (in months)
- 18
- Function
- Varistor (voltage-sensitive resistor)
- Voltage type (operating voltage)
- AC
- With LED indication
- No
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389110385496
- SAP 1000016733
- Code 8488002
Product Documentation
More from Schneider Electric
Schneider Electric
PUSH-Button Pressure/Pressure Yellow
ZB5AH5
Schneider Electric
Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 2 cut-outs 22mm, 80 x 80 x 77, UL cULus XAPD1502
Schneider Electric

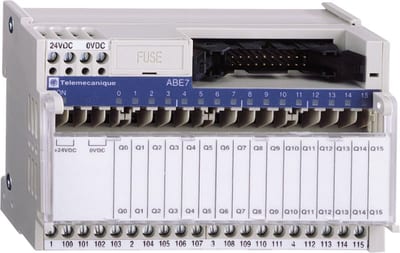

16 O, 4PR.GR, 5mm RELAY,LED
ABE7P16T111
Schneider Electric

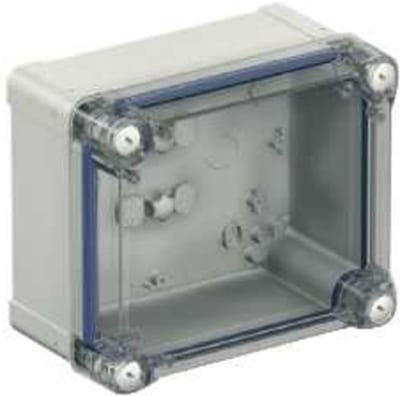

Schneider Electric PC box IP66 IK08 RAL7035 INT.H275W225D160 EXT.H291W241D168 Transparent cover H60 NSYTBP292416HT
Schneider Electric

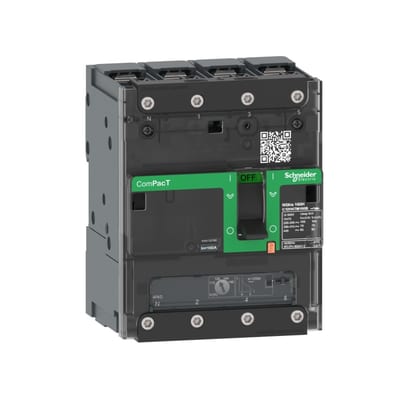

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 40A, lugs/busbars C11B4TM040B
Schneider Electric

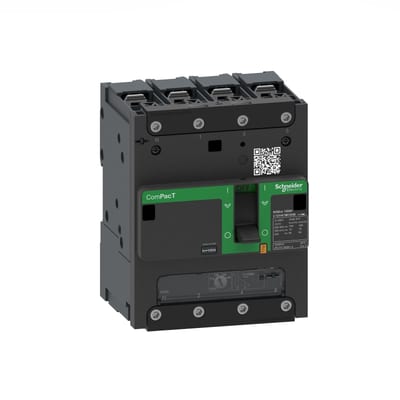

Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 80A, lugs/busbars C11N4TM080B
Schneider Electric

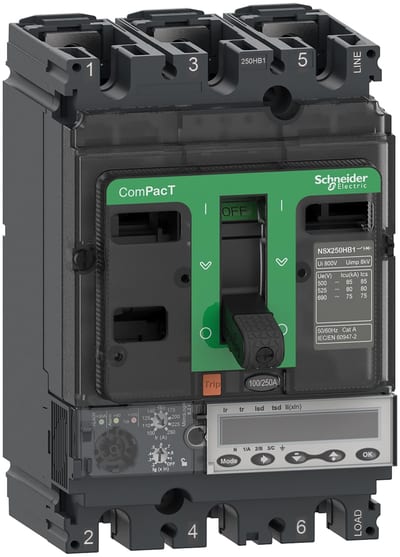

Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, MicroLogic 6.2E trip unit 40A C10W36E040
Schneider Electric

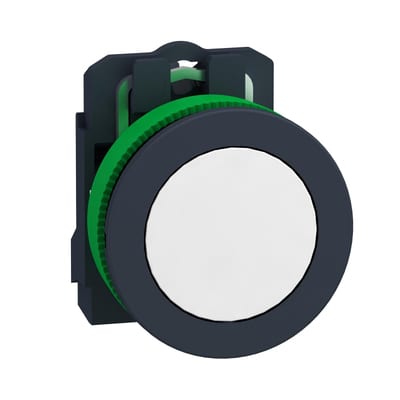

Schneider Electric Pilot light, Harmony XB5, grey plastic, white flush mounted, 30mm, universal LED, 230...240V AC XB5FVM1
