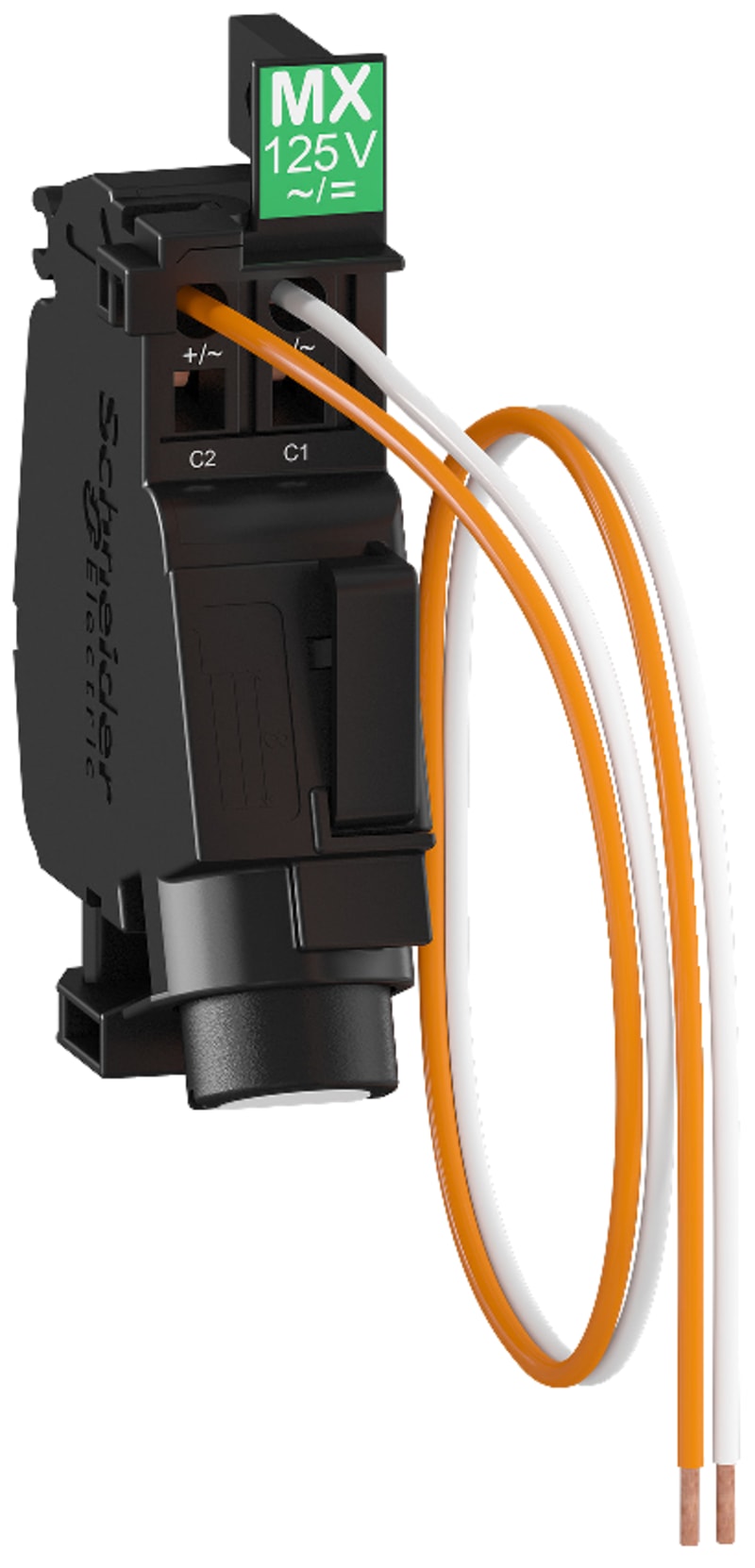

Schneider Electric shunt trip (pre-wired) MX-208...240V AC 60HZ-220…240V AC 50HZ-277V~ 60HZ-250V DC LV426864
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV426864 Shunttrippspole MX with 1m cable208-277V 50/60Hz for ComPact NSXm circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- LV426864
- EAN / GTIN
- 3606485413204
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 120 pcs
- Voltage
- 208-277 V AC
- Range
- ComPact
- Range of product
- ComPacT NSXm
- Device short name
- MX
- Product or component type
- Voltage release
- Device application
- Control
- Voltage release type
- Opening coil; Shunt trip release
- Control type
- Standard
- [Uc] control circuit voltage
- 220...240 V AC 50 Hz; 208...240 V AC 60 Hz; 277 V AC 60 Hz; 250 V DC
- Range compatibility
- ComPact ComPacT NSXm; ComPact ComPact NSXm; PowerPact PowerPact B
- Operating threshold
- 0.7 Un opening
- Response time
- < 50 ms
- Control signal type
- Impulse; Maintained
- Impulse duration
- >= 20 ms
- Auxiliary connection terminal
- Pre-wired 0…0.8 mm² (18 AWG)stranded copper
- Wire stripping length
- 8 mm
- Cable length
- 1 m
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606485413204
- SAP 1200323259
- Code 82306374
