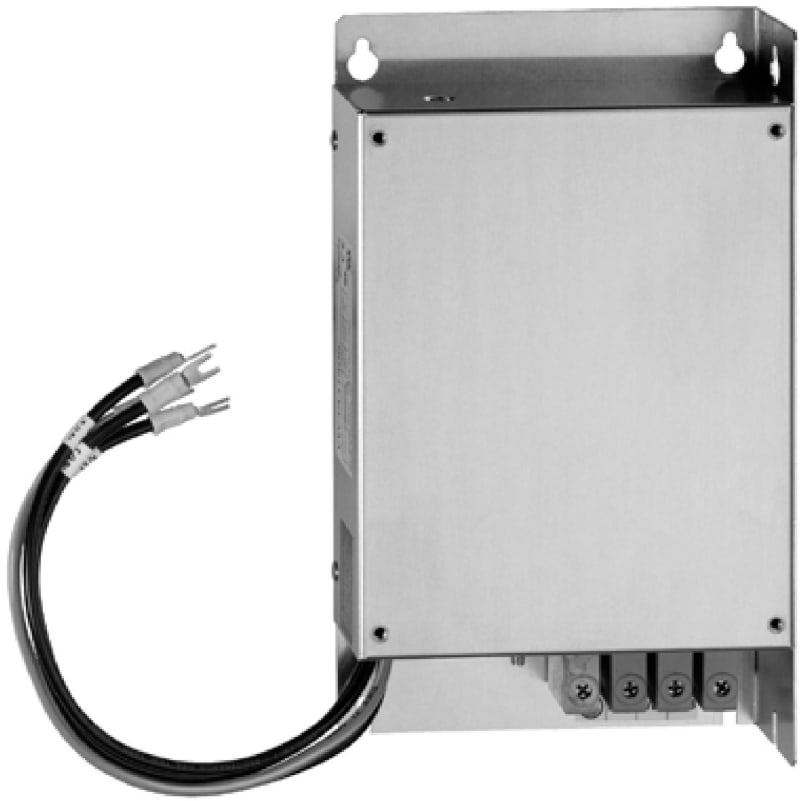

Schneider Electric additionnal EMC input filter - 3-Phase supply - 92 A VW3A4407

Schneider Electric VW3A4407 S7A EMC Footprint filter.

Manufacturer part number (MPN)

VW3A4407

EAN / GTIN

3389118065642

Sales unit

pcs

Range of product

Altivar

Product or component type

EMC input filter

Range compatibility

Altivar 61; Altivar 71; Altivar 212

Product compatibility

ATV212HD37N4; ATV212HD45N4; ATV21HD37N4; ATV21HD45N4; ATV61HD30N4; ATV61HD37N4; ATV71HD30N4; ATV71HD37N4; ATV71WD30N4; ATV71WD37N4

Product specific application

Radio interference input filter

[In] rated current

92 A

Thermal losses

16 W for ATV21HD37N4; 23 W for ATV21HD45N4; 30 W

Network number of phases

Three phase

Electrical connection

Terminal 50 mm² 0 AWG

Tightening torque

6 N.m

maximum earth leakage current

60 mA at 400 V 50 Hz; 106 mA at 480 V 60 Hz

power supply voltage

200…240 V; 380…500 V

Tolerance

10 %

Product weight

17 kg

IP degree of protection

IP20; IP41 (upper part)

Relative humidity

0…93 % conforming to IEC 68-2-3

Ambient air temperature for operation

-10…50 °C

Ambient air temperature for storage

-40…65 °C

Operating altitude

<= 1000 m without current derating; <= 1000 m without derating; 1000...3000 m with current derating 1 % per 100 m

Vibration resistance

1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Standards

IEC 61800-3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

20.000 cm

Package 1 Width

91.000 cm

Package 1 Length

48.000 cm

Package 1 Weight

15.166 kg

Unit Type of Package 2

P06

Number of Units in Package 2

3

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

54.000 kg

Country of origin

TH

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

8548.00
