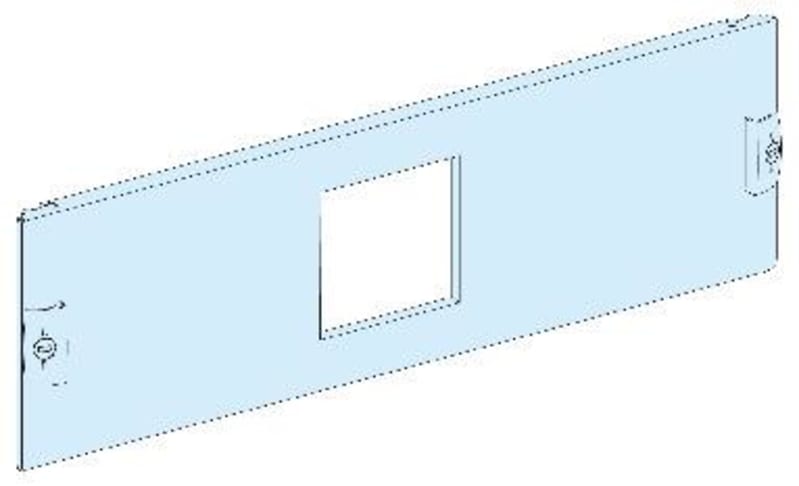

Front plate for 1 pcs 96X96, PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03913 Front plate for 1 pcs 96X96mm instrument-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03913
- EAN / GTIN
- 3606481874085
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Human-switchboard interface: 96 x 96 mm device; PowerLogic: PM5500; Human-switchboard interface: HSI; PowerLogic: PM400...800; PowerLogic: PM5100; PowerLogic: PM5300; PowerLogic: PM5563RD; Enerlin'X: FDM121
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 150 mm
- Product weight
- 0.62 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 1 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 96 x 96 mm device 1 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 1 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 1 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 1 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 1 3; 600 mm PrismaSeT G floor-standing enclosure PowerLogic 1 3; 600 mm PrismaSeT G wall-mounted enclosure PowerLogic 1 3; 650 mm 400 mm PrismaSeT P cubicle PowerLogic 1 3; 600 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 1 3; 600 mm 10 G wall-mounted enclosure Enerlin'X FDM121 1 3; 650 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 1 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Number of Units in Package 3
- 128
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 3
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481874085
- SAP 1200546772
- Code 82879624
Product Documentation
More from Schneider Electric
Schneider Electric
Push-Button Head BLUE,NEDSENKET
ZB4BA66
Schneider Electric
Schneider Electric spreader set - 35 mm pitch - 4 poles LV426941
Schneider Electric
Schneider Electric PanelSeT SF/SM door cross rails - nominal width: 1000 mm NSYSDCR10
Schneider Electric

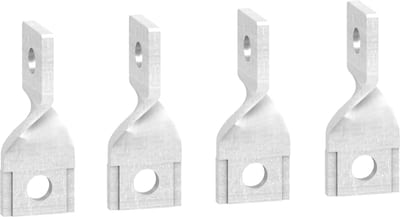

Schneider Electric edgewise terminal extensions, ComPact NSX 400/630, set of 4 parts LV432487
Schneider Electric

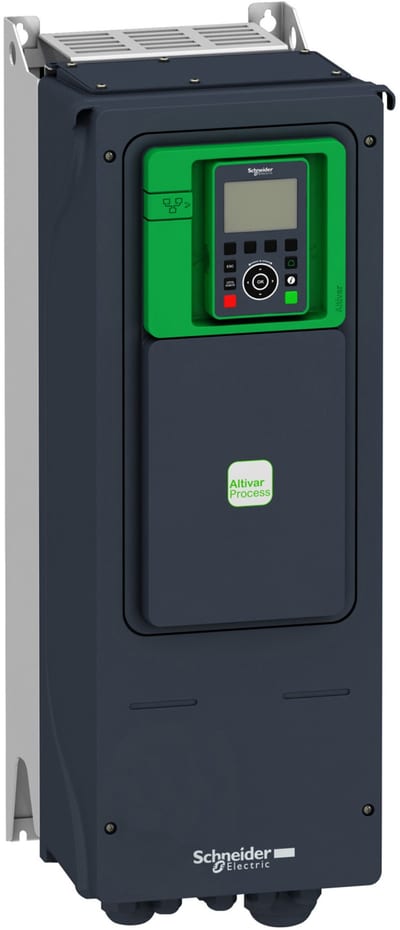

Schneider Electric variable speed drive, Altivar Process ATV900, ATV950, 22kW, 400 to 480V, with braking unit, IP55 ATV950D22N4
Schneider Electric

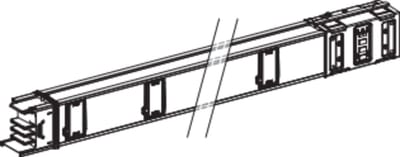

RAIL 500A 3L 5M 10 Outlet
KSA500ED35010
Schneider Electric

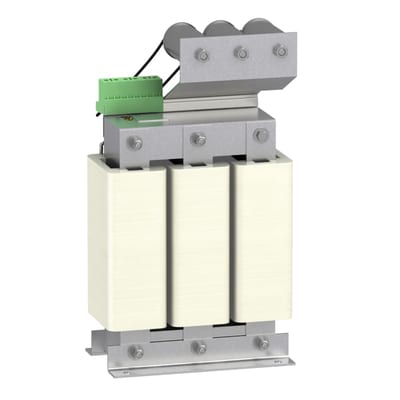

Sinusfilter 28A 690V 11-22kW IP20
VW3A5216
Schneider Electric

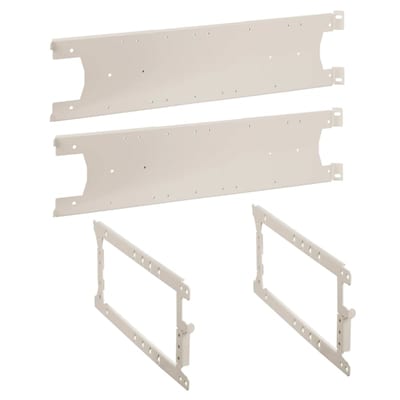

Mounting plate NSXm-vert. B650MM-PRISMASET P
