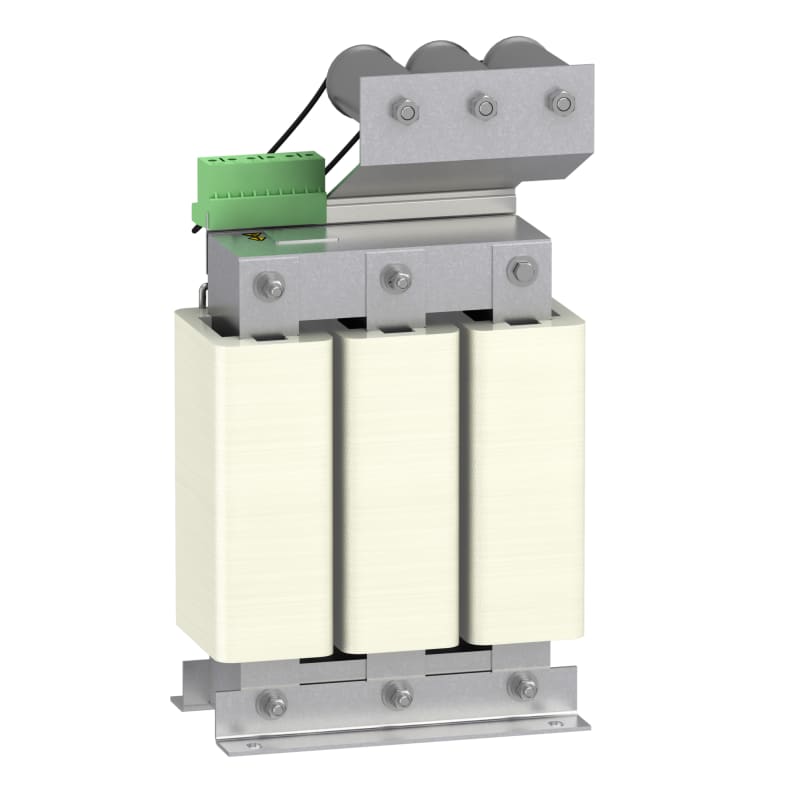

Sinusfilter 28A 690V 11-22kW IP20

Schneider Electric VW3A5216 Sinusfilter 28A 690V 11-22kW IP20.

Manufacturer part number (MPN)

VW3A5216

EAN / GTIN

3606480659812

Sales unit

pcs

Voltage

690 V

IP rating

IP20

Product or component type

Sinus filter

Range compatibility

Altivar Process ATV900; Altivar Process ATV600

Product specific application

Output filter

[In] rated current

28 A

Thermal losses

280 W, 115 °C

Product compatibility

ATV630 variable speed drive wall mount - 11 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 15 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 18.5 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 22 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 11 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 15 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 18.5 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 22 kW, 500...690 V three phase; ATV630 variable speed drive wall mount, 15 hp, 600 V three phase; ATV630 variable speed drive wall mount, 20 hp, 600 V three phase; ATV630 variable speed drive wall mount, 25 hp, 600 V three phase; ATV630 variable speed drive wall mount, 30 hp, 600 V three phase; ATV930 variable speed drive wall mount, 15 hp, 600 V three phase; ATV930 variable speed drive wall mount, 20 hp, 600 V three phase; ATV930 variable speed drive wall mount, 25 hp, 600 V three phase; ATV930 variable speed drive wall mount, 30 hp, 600 V three phase

Switching frequency

2 kHz

Maximum output frequency

70 Hz

maximum permissible voltage

690 V AC

Electrical connection

Terminal

Max current

1.5 x nominal current (duration = 60 s)

Product weight

25.4 kg

IP degree of protection

IP00

Pollution degree

2 conforming to EN 50178

Vibration resistance

1 gn (f= 13…200 Hz) conforming to IEC 60068-2; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Relative humidity

0…95 %

Ambient air temperature for operation

-10…45 °C

Ambient air temperature for storage

-40…65 °C

Operating altitude

<= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m

Standards

UL 508

Warranty (in months)

18

Suitable as sinus filter

Yes

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

2 kHz

Rated operating frequency

70 Hz

Max. rated operation voltage Ue

690 V

Rated current AC

28 A

Degree of protection (IP)

IP00

Country of origin

China

HS Code

8548.90
