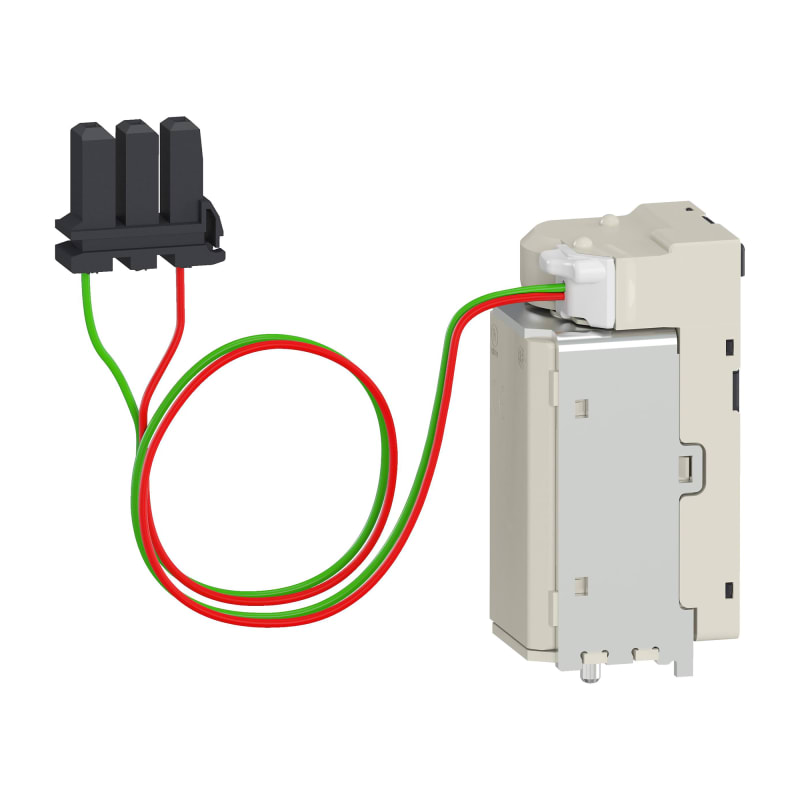

Schneider Electric XF or MX voltage release, standard, Masterpact MTZ1/2/3, 48 VAC 50/60 Hz, 48/60 VDC, spare part LV833660SP

Schneider Electric LV833660SP In-or Out coil, MX-XF - 48 V AC 48/60 V DC for Masterpact MTZ - spare part.

Manufacturer part number (MPN)

LV833660SP

EAN / GTIN

3606480932526

Sales unit

pcs

Package quantity

5 pcs

Voltage

48 V AC

Range

MasterPact

Product or component type

Voltage release

Device application

Control

Range compatibility

Masterpact MasterPact MTZ2 circuit-breaker; Masterpact MasterPact MTZ3 circuit-breaker; Masterpact MasterPact MTZ1 circuit-breaker

Voltage release type

Closing coil; Opening coil

[Un] voltage power supply

48 V AC 50/60 Hz; 48...60 V DC

Threshold tripping voltage

0.7...1.1 Un on opening; 0.85...1.1 Un on closing

Holding power consumption

4.5 W

Circuit breaker mounting mode

Fixed/drawout

Maximum response time

60 ms on opening for MasterPact MTZ1; 60 ms on opening for MasterPact MTZ2; 60 ms on opening for MasterPact MTZ3; 65 ms on closing for MasterPact MTZ1; 80 ms on closing for MasterPact MTZ2; 90 ms on closing for MasterPact MTZ3

Provided equipment

1 instruction sheet

Offer type

Spare part

Country of origin

FR

Warranty (in months)

18

Power consumption

4.5 W

Suitable for off-load switch

Yes

Suitable for overload relay

No

Type of electric connection

Flat plug-in connection

Rated control supply voltage AC 50 Hz

48 V

Rated control supply voltage AC 60 Hz

48 V

Rated control supply voltage DC

48–60 V

Suitable for motor safety switch

No

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC/DC

HS Code

8536.30
