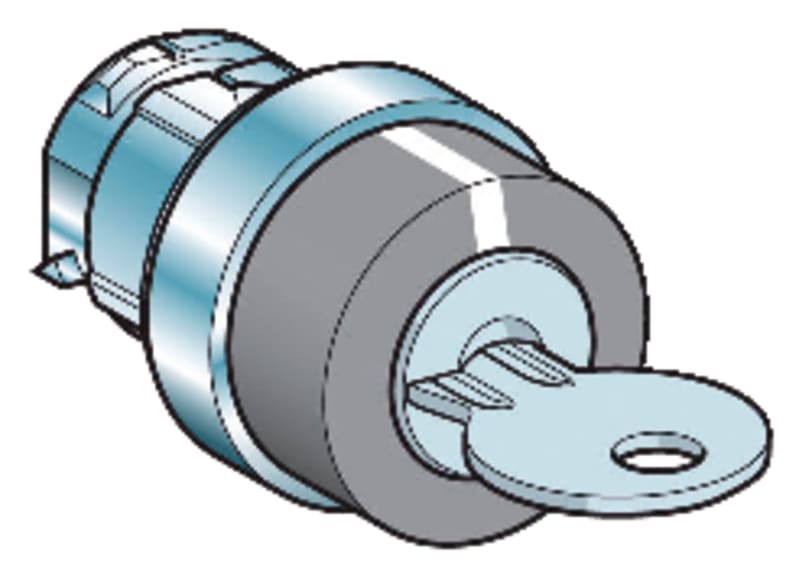

Schneider Electric Harmony K Key-Operated Selector Head 90 Degrees for KZ127

Schneider Electric KAXZ1S191 is a key-operated cam-switch head for Harmony Series K, mounting a KZ127 key with a 90 degree switching angle. The metal bezel is chrome-finished, mounts in a 22.5 mm cut-out and is rated IP65/IP67. The head is tested to 1,000,000 mechanical cycles and operates from -25 to 55 degrees C.

Manufacturer part number (MPN)

KAXZ1S191

EAN / GTIN

3389110980820

Sales unit

pcs

Package quantity

24 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAX

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With bezel Ø 28.5 mm, metal

Type of operator

key key 455

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Switching angle

90 °

Mechanical durability

1000000 cycles

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

21 mm

Product weight

0.065 kg

Compatibility code

KAX

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

1600

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP65/IP67

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Switching function latching

No

HS Code

8538.90
