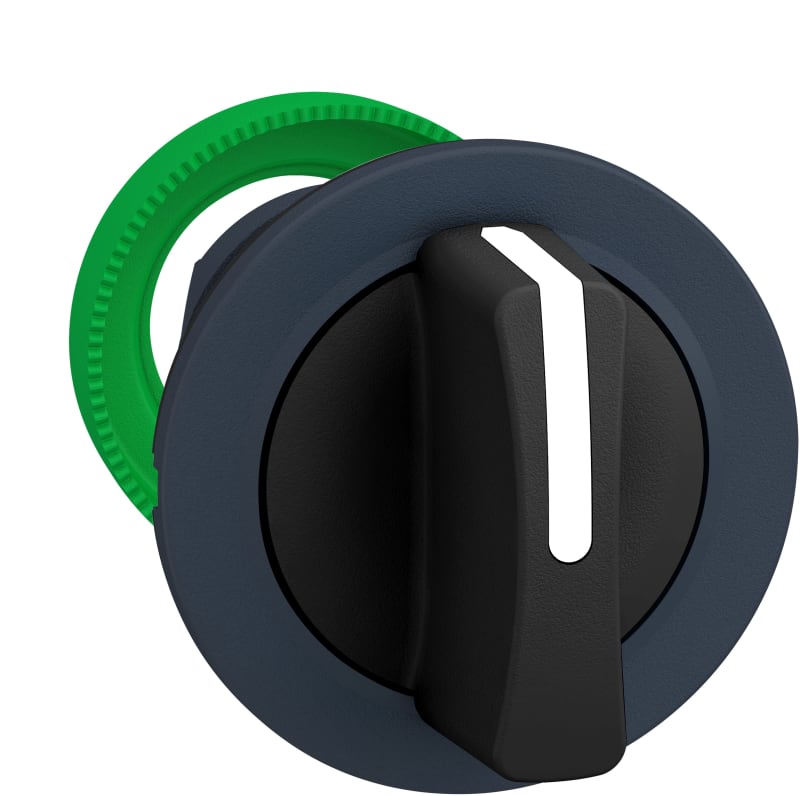

Schneider Electric flush mounted black selector switch head 3 pos return right to center ZB5FD8

Schneider Electric ZB5FD8 Selector Switch Head flush in plastic with 3 positions and spring return from H for M in black colour.

Manufacturer part number (MPN)

ZB5FD8

EAN / GTIN

3606481339300

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Head for selector switch

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

30.5 mm

Head type

Built-in-flush

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

Right to centre spring return

Operator profile

Black standard handle

Operator position information

3 positions +/- 45°

CAD overall width

37 mm

CAD overall height

37 mm

CAD overall depth

46 mm

Product weight

0.031 kg

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69K; IP69

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

IEC 60947-5-4; IEC 60947-5-1; JIS C8201-5-1; CSA C22.2 No 14; UL 508; IEC 60947-1; JIS C8201-1; ISO 21702; ISO 22196:2011

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.600 cm

Package 1 Width

5.400 cm

Package 1 Length

6.200 cm

Package 1 Weight

28.000 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

31 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Black

Degree of protection (IP), front side

IP66

Width opening

37 mm

Height opening

37 mm

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Colour control element

Black

Switching function latching

No

Degree of protection (NEMA)

13

HS Code

8538.90

• EAN 3606481339300
• SAP 1200094650
• Code 81957902
