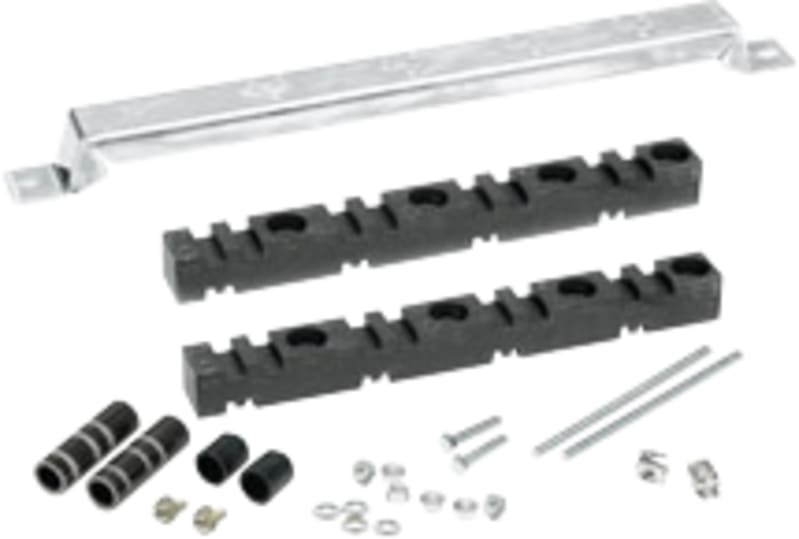

Schneider Electric Vertical bar support up to 3200 A 600X600 mm NSYBVS600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYBVS600 Vert.Support Inntakskinne L=600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYBVS600
- EAN / GTIN
- 3606480063008
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Busbar accessory
- Product or component type
- Busbar support
- Anwendung
- Multi-purpose; Prisma application
- Enclosure nominal dimensions
- -
- Mounting location
- On structure of enclosure
- Busbar position
- Vertical
- Range compatibility
- PanelSeT PanelSeT SF; Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma POLAR WHITE
- Cubicle-device connection
- Linergy LGYE lateral busbar - fixed; Linergy BS lateral busbar - fixed
- Device composition
- fixing elements; 1 metal support; 2 insulating bar support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element
- Width
- Fixing centers: 550 mm; Nominal: 600 mm
- Depth
- 39 mm
- [In] rated current
- 3200 A
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 1.772 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 50
- Package 2 Height
- 48.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 102.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 3200 A
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480063008
- SAP 1000088940
- Code 8881308
Product Documentation
