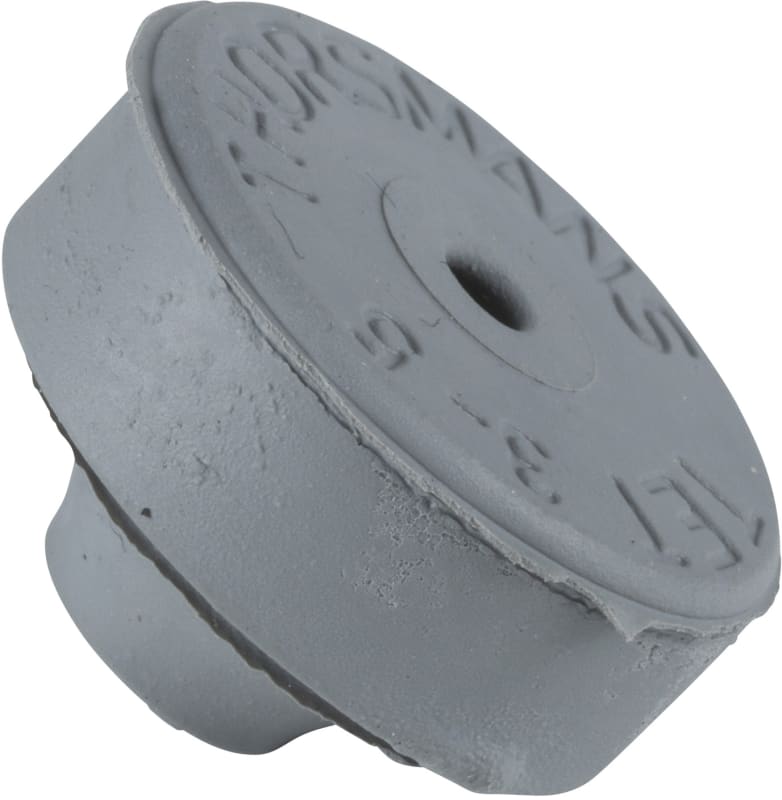

Schneider Electric Thorsman TET - grommet - grey - ISO M25 - diameter 10 to 14 IMT36182
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT36182 Membrane Gland, suitable for wall between 1 for 4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- IMT36182
- EAN / GTIN
- 3606480163814
- Sales unit
- pcs
- Package quantity
- 50 pcs
- IP rating
- IP67
- product range
- Thorsman TET
- product type
- Grommet
- colour
- Grey
- quantity per package
- Set of 50
- Material
- Rubber
- ISO thread
- M25
- Cable outer diameter
- 10…14 mm
- Drilling diameter
- 25.3 mm
- Height
- 25 mm
- Width
- 38 mm
- Length
- 38 mm
- Main colour tint
- Grey
- Colour tint
- Grey
- IP-Class
- IP67
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Number of Units in Package 3
- 1350
- Country of origin
- SE
- Warranty (in months)
- 18
- Model
- Closed
- Halogen free
- Yes
- Surface protection
- Untreated
- Cable entry
- Round
- With strain relief
- No
- Material quality
- Ethylene-propylene diene monomer rubber (EPDM)
- Thread size (metric)
- 25
- Angle model
- No
- Suitable for cable diameter
- 10–14 mm
- Degree of protection (IP)
- IP67
- Bore diameter
- 25 mm
- For wall thickness
- 1–4 mm
- Shrink technique
- No
- Number of cables
- 1
- Suitable for cable gland
- No
Standards & Compliance
- HS Code
- 4016.99
Cross References
- EAN 3606480163814
- SAP 1000090394
- Code 8846869
Product Documentation
