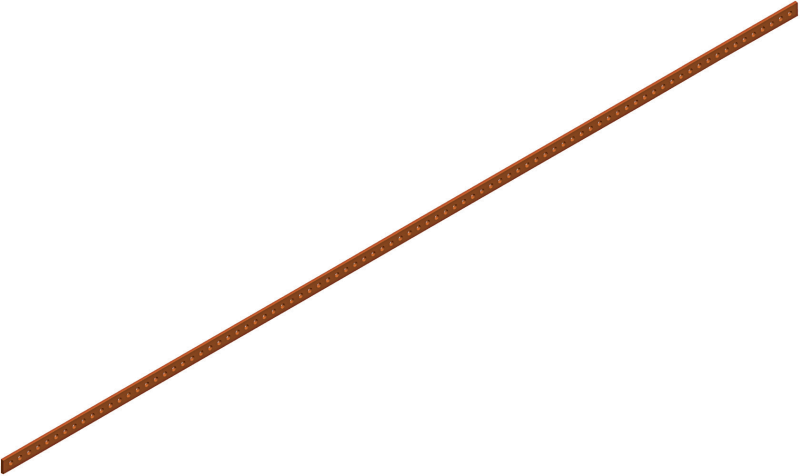

Schneider Electric Earthing strip connection with 87 points - M5 - lenght 1M NSYECB1M153
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYECB1M153 — Earthing strip connection with 87 points - M5 - lenght 1m.
Technical Specifications
- Manufacturer part number (MPN)
- NSYECB1M153
- EAN / GTIN
- 3606480148705
- Sales unit
- pcs
- Range
- PanelSeT
- Anwendung
- Multi-purpose
- Product or component type
- Earthing strip
- Device composition
- fixing elements; 1 bar
- Material
- Brass
- Fixing mode
- By fixing element
- Length
- 1000 mm
- Height
- 15 mm
- Width
- 3 mm
- ISO thread
- M5
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 4.000 cm
- Package 1 Length
- 121.000 cm
- Package 1 Weight
- 956.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 200
- Package 2 Height
- 65.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 211.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Direct mounting
- Thickness
- 15 mm
- Number of connections
- 87
- Insulated mounting
- No
- Busbar thickness
- 3 mm
- Rail width
- 15 mm
- Surface of the contact rail
- Untreated
- Horizontal mounting
- Yes
- Rail length
- 1000 mm
- Clearance from back plate
- 1000 mm
- Connection size, connection facility
- M5
- Vertical mounting
- No
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 3606480148705
- SAP 1000317493
- Code 8342337
Product Documentation
