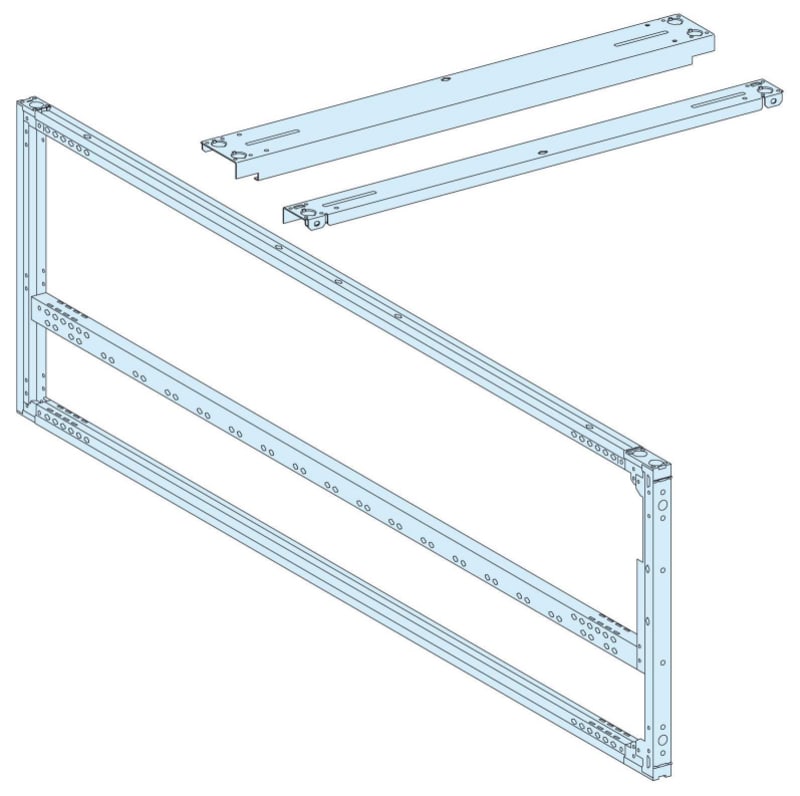

Schneider Electric PrismaSet P Framework, W = 650 mm, D = 600 mm LVS08606
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08606 Frame PrismaSeT P width 650mm- depth 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08606
- EAN / GTIN
- 3606481879288
- Sales unit
- pcs
- Width
- 650 mm
- Depth
- 600 mm
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Framework
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Provided equipment
- Four cross-pieces; Mounting hardware; Side-by-side combination kit; Two frames
- Additional information
- Can be combined side by side and back to back
- Enclosure/cubicle description
- Cubicle - width 650 mm
- Quantity per set
- Set of 1
- Height
- 2000 mm
- Product weight
- 24 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Standards
- IEC 62208
- Mechanical robustness
- Seismic tests structure reinforcement - 2G conforming to IEC 60068-2-57
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879288
- SAP 1200547307
- Code 82880704
Product Documentation
