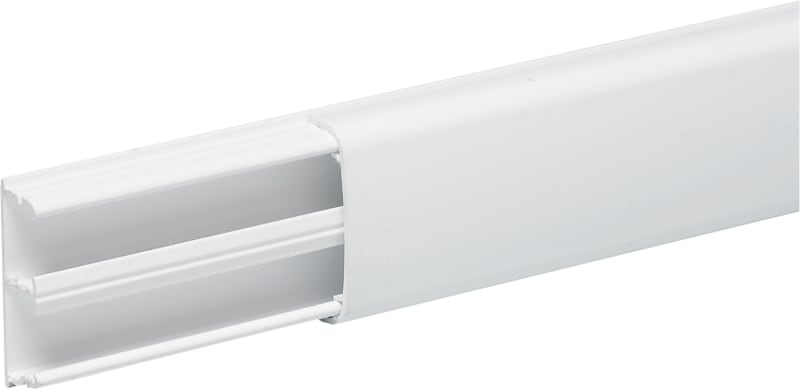

Schneider Electric ISM14200 OptiLine - minitrunking - 12 x 30 mm - PVC - white
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ISM14200 OptiLine - minitrunking - 12 x 30 mm - PVC - white is listed under Control & Automation / Conduit & Trunking. Sales unit: pcs; Package quantity: 20 pcs; Range of product: Optiline; Cabling installation system: Trunking; product type: Mini trunking; trunking type: Mini trunking.
Technical Specifications
- Manufacturer part number (MPN)
- ISM14200
- EAN / GTIN
- 3606480310911
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- Optiline
- Cabling installation system
- Trunking
- product type
- Mini trunking
- trunking type
- Mini trunking
- Trunking material
- Plastic
- Compartment partitioning
- 2 compartments
- colour
- White (RAL 9010)
- trunking dimension
- 12 x 30 mm
- Fixing mode
- Pre-punched fixing hole 100 mm; Power cable: screw-fixed
- Material
- PVC (polyvinyl chloride)
- quantity per package
- 42 m
- operating temperature
- -25…60 °C
- Length
- 2100 mm
- Height
- 30 mm
- Width
- 12 mm
- Standards
- 73/23/EEC; EN 50085-1:2005; EN 50085-2-1:2006
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3 cm
- Package 1 Width
- 1.2 cm
- Package 1 Length
- 210 cm
- Package 1 Weight
- 80 g
- Warranty (in months)
- 18
- Halogen free
- No
- RAL-number
- 9010
- Surface protection
- Untreated
- Pre-stamping
- No
- Material quality
- Polyvinyl chloride (PVC)
- Type of fastening
- Bottom perforation
- Impact strength
- IK07
- Number of permanent partitions
- 1
- With cable fixing clip
- No
- With duct connector
- No
- Usable cross section
- 230 mm²
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Delivery on roll
- No
- Transparent
- No
- Suitable for circuit integrity
- No
- Cover model
- Loose
- Anti-bacterial treatment
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480310911
- SAP 1000096496
- Code 8886828
Product Documentation
More from Schneider Electric
Schneider Electric
THORSMAN Digi. Multimeter CAT3
IMT23102
Schneider Electric
Schneider Electric differential thermal overload relay, TeSys K, 2.6...3.7A, class 10A LR2K0310
Schneider Electric
Schneider Electric RSLZ2 bus jumper (20 poles)
Schneider Electric
Busbar-vertical-Linergy-LGYE 1000A (LVS04504)
Schneider Electric
Schneider Electric ClimaSys forced vent. IP54, 300M3/h, 24V DC, with outlet grille and filter G2 NSYCVF300M24DPF
Schneider Electric
Schneider Electric ZB4BA4 Harmony XB4 Push-Button Head — Ø22 mm, Red, flush, spring return, non-illuminated, metal bezel
Schneider Electric
Schneider Electric A9F94432 ACTI9 IC60L Miniature Circuit Breaker 4P 32 A, Curve C
Schneider Electric
FED-K5630 AN Channel 2.5M L=2,5
5435100
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ISM14200?
- ISM14200 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ISM14200.
- What is the HS code for ISM14200?
- The customs tariff (HS) code for ISM14200 is 3925.90.
- Who manufactures ISM14200?
- ISM14200 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for ISM14200?
- Yes — the ISM14200 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ISM14200?
- The minimum order quantity is 1.
- Is ISM14200 available?
- Yes — ISM14200 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
