THORSMAN Digi. Multimeter CAT3
Pricing
Request a quote
We reply within 24 hours
Product Description

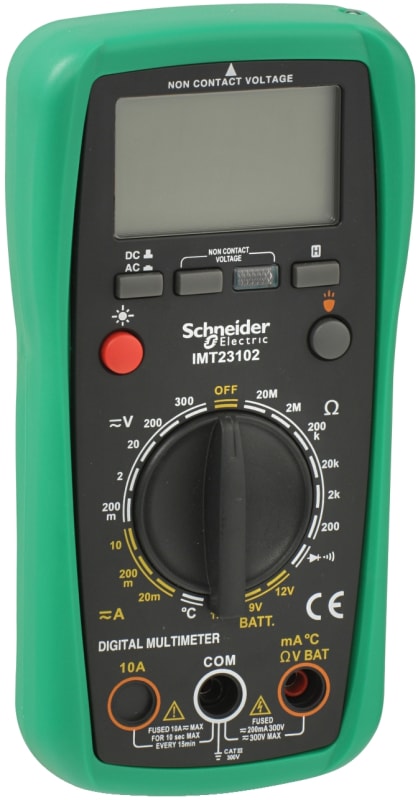

Schneider Electric IMT23102 THORSMAN Digital Multimeter Cat3.
Technical Specifications
- Manufacturer part number (MPN)
- IMT23102
- EAN / GTIN
- 3606481275639
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Measured value memory
- No
- Indication
- Digital
- Measuring range selection
- Manual
- True RMS measurement
- No
- Continuity test
- Yes
- Interface
- No
- Capacitance measurement
- No
- Frequency measurement
- No
- With decibel measurement (dB)
- No
- Data hold
- Yes
- IR interface
- No
- Explosion-tested version
- No
- Bluetooth interface
- No
- Resistance test/diode test
- Yes
- Inductance measurement
- Yes
- With conductivity measurement
- Yes
- Max. voltage measuring range AC
- 300 V
- Max. voltage measuring range DC
- 300 V
- Max. current measuring range, AC
- 10 A
- Max. current measuring range, DC
- 10 A
- Max. resistance measuring range
- 20 MOhm
- Measuring circuit category
- CAT III
- Nominal test voltage 100 V
- No
- Nominal test voltage 1000 V
- No
- Nominal test voltage 250 V
- No
- Nominal test voltage 500 V
- No
- Relative value measurement
- No
- Peak value memory
- No
- Duty cycle measurements
- No
- Max. temperature measuring range
- 1000 °C
- Analogue bar graph display analogue/logarithmical
- No
- Temperature measurement RTD
- No
- Temperature measurement TC
- Yes
- Nominal test voltage 10 V
- No
- Nominal test voltage 50 V
- No
- Cable length measurement
- No
- Cable symmetry testing for two wire connections a-b-E
- No
- Power and energy measurement
- No
- Harmonics analysis/power quality
- No
- Rotational speed measuring
- No
- Automatic circuit breaker
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.31
Cross References
- EAN 3606481275639
- SAP 1200503089
- Code 82636601
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric differential thermal overload relay, TeSys K, 2.6...3.7A, class 10A LR2K0310
Schneider Electric
Schneider Electric RSLZ2 bus jumper (20 poles)
Schneider Electric

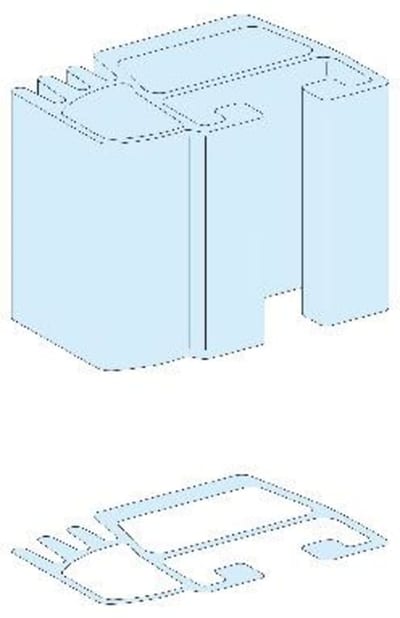

Busbar-vertical-Linergy-LGYE 1000A (LVS04504)
Schneider Electric

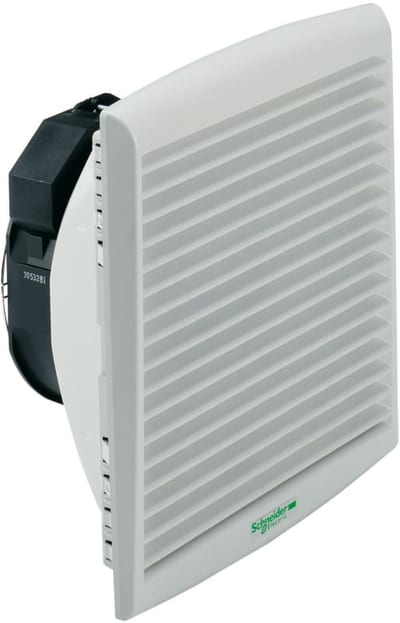

Schneider Electric ClimaSys forced vent. IP54, 300M3/h, 24V DC, with outlet grille and filter G2 NSYCVF300M24DPF
Schneider Electric

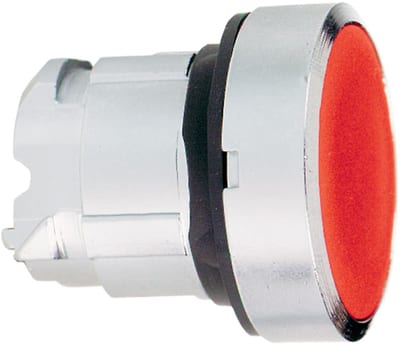

Schneider Electric ZB4BA4 Harmony XB4 Push-Button Head — Ø22 mm, Red, flush, spring return, non-illuminated, metal bezel
Schneider Electric

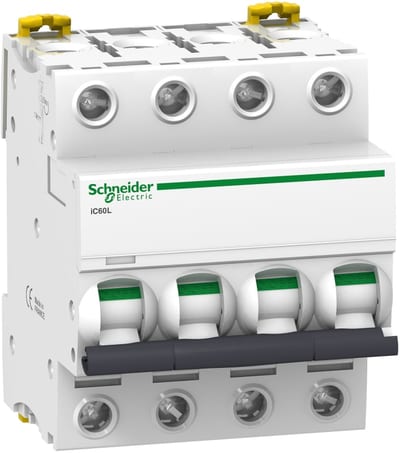

Schneider Electric A9F94432 ACTI9 IC60L Miniature Circuit Breaker 4P 32 A, Curve C
Schneider Electric

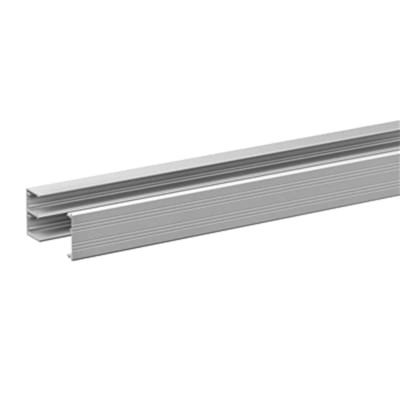

FED-K5630 AN Channel 2.5M L=2,5
5435100
Schneider Electric

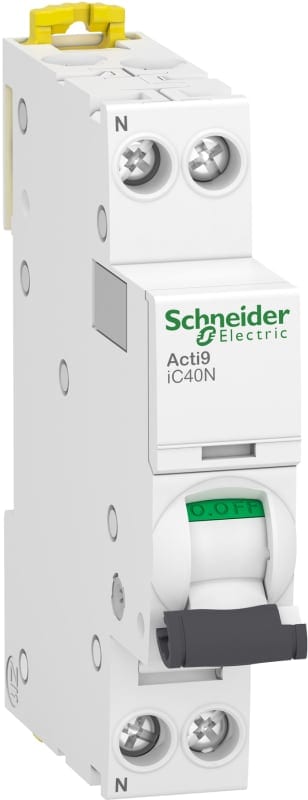

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 1P+N, 10A, C curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P54610
