Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 750X500X320 IP44 NSYPLAT753G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLAT753G THLSA RAIN HOOD 7035 750X500X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAT753G
- EAN / GTIN
- 3606480775512
- Sales unit
- pcs
- Dimensions
- 750×500×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAT
- Nominal height
- 750 mm
- Nominal width
- 500 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 canopy
- Body type
- Open top and sealed bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points handle lock, 5 mm double-bar
- Accessibility for operation
- Top; Rear; Front
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 750 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 759 N
- Max. permitted load of the door(s) according to IEC 62208
- 108 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480775512
- SAP 1000752521
- Code 8489473
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets AP8841
Schneider Electric
Schneider Electric Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 110 V AC RSL1PVFU
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 25A, Icu 100KA, thermal magnetic, Everlink terminals GV4PE25S
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB5, orange, 30mm, universal LED, 1NO + 1NC, 110...120V AC XB5FW35G5
Schneider Electric
Push Button Cap flush black (ZBAF235)
Schneider Electric

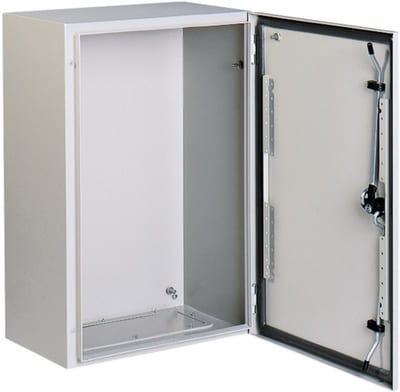

Schneider Electric PanelSet S3DEX (ATEX certified) H800XW600XD300 .IP66 IK10 RAL7035. NSYS3DEX8630
Schneider Electric

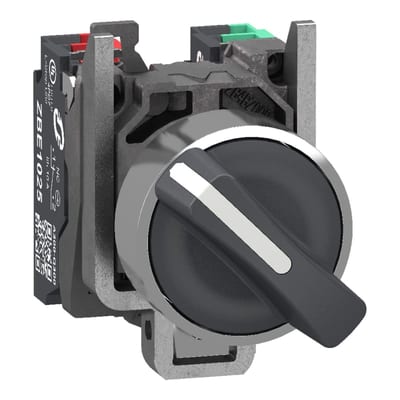

Schneider Electric Selector switch, Harmony XB4, metal, black, 22mm, 2 positions, stay put, 1 NO + 1 NC, compact push in terminals XB4BD255
