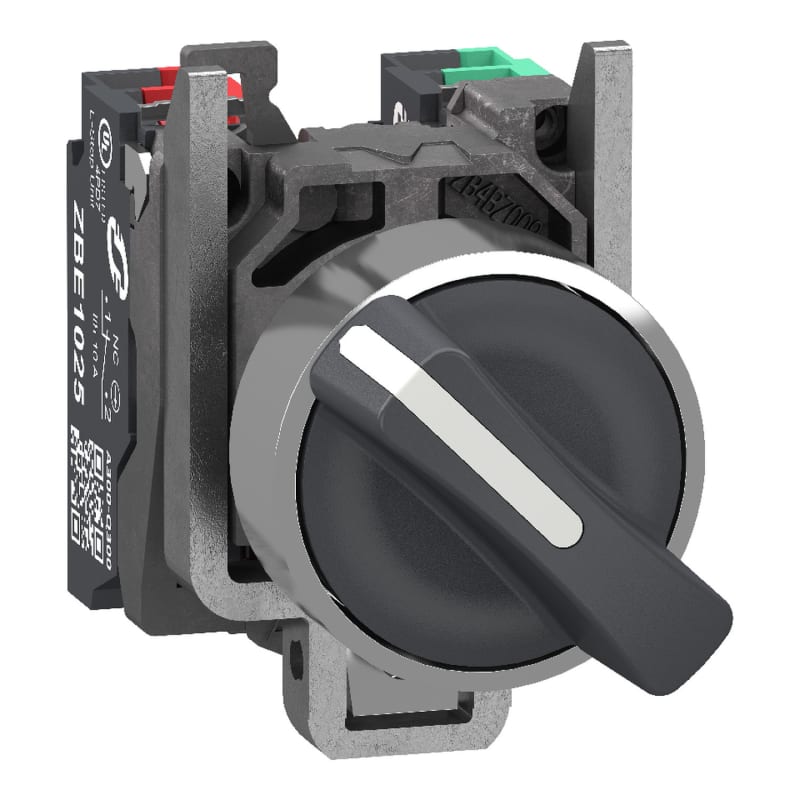

Schneider Electric Selector switch, Harmony XB4, metal, black, 22mm, 2 positions, stay put, 1 NO + 1 NC, compact push in terminals XB4BD255

Schneider Electric XB4BD255 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Selector switch complete with 2 fixed positionsitions 1xNO+1xNC with push-in.

Manufacturer part number (MPN)

XB4BD255

EAN / GTIN

3606486341629

Sales unit

pcs

Range of product

Harmony XB4

Product or component type

Selector switch

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black standard handle

Operator position information

2 positions 90°

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

Height

47 mm

Width

30 mm

Depth

59.2 mm

Terminals description ISO n°1

(13-14)NO; (21-22)NC

Product weight

0.096 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Contacts usage

Standard contacts

Positive opening

With conforming to EN/IEC 60947-5-1 appendix K

Torque value

0.14 N.m NO changing electrical state; NC changing electrical state

Mechanical durability

1000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69; IP69K; IP67

Enclosure Type

UL type 4X/13

IK degree of protection

IK04

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.2 cm

Package 1 Width

3.3 cm

Package 1 Length

8.6 cm

Package 1 Weight

96 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black

Number of switch positions

2

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP)

IP66

With light source

No

Material front ring

Metal

With front ring

Yes

Switching function latching

Yes

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

HS Code

8536.50
