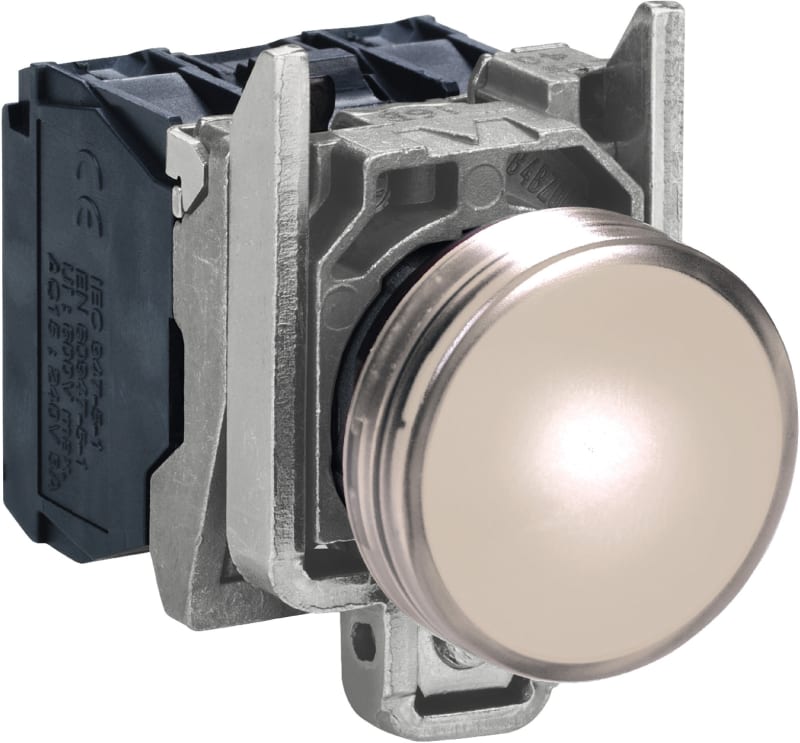

Schneider Electric Pilot light, Harmony XB4, metal, white, 22mm, plain lens with BA9S bulb, lt 250V XB4BV61

Schneider Electric XB4BV61 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Indicator lamp White < 250V BA9S.

Manufacturer part number (MPN)

XB4BV61

EAN / GTIN

3389110887174

Sales unit

pcs

Package quantity

5 pcs

Voltage

250 V

Range of product

Harmony XB4

Product or component type

Pilot light

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

White

Operator additional information

With plain lens

Light source

Bulb not included

Bulb base

BA 9s

Light block supply

Direct <2.4 W

[Us] rated supply voltage

<= 250 V

Height

47 mm

Width

30 mm

Depth

55 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.075 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…55 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

JIS C8201-5-1; UL 508; IEC 60947-5-5; IEC 60947-5-4; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; UL listed

Vibration resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

Hole diameter

22.5 mm

Voltage type

AC/DC

Colour lens

White

Number of indicator lights

1

Rated operating voltage Ue

0–250 V

Colour front ring

Chrome

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

With light source

Yes

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of lamp socket

BA9s

Type of lens

Flat

Country of origin

France

HS Code

8531.80
