Front plate NSXm-hor./dreieh. B850-G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

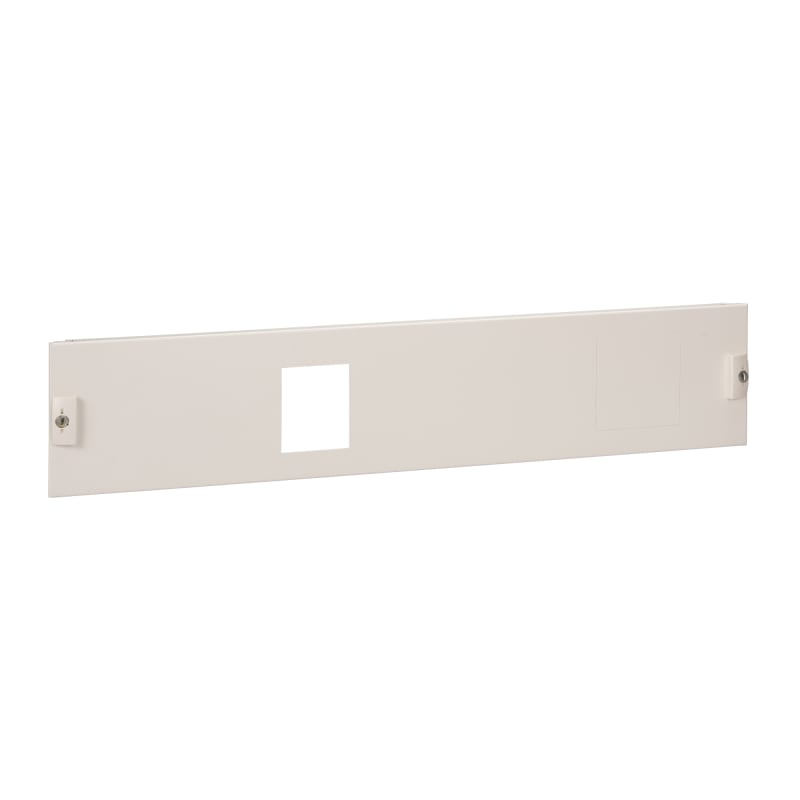

Schneider Electric LVS03333 Front plate for NSXm-horizontal mounting-dreiehandtak-in 850mm section-3 modules-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03333
- EAN / GTIN
- 3606481871763
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation
- Poles description
- 1 x 3P or 4P: mounting plate support: NSXm horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Height
- 150 mm
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 15
- Warranty (in months)
- 18
- Width
- 750 mm
- Suitable for enclosure building width
- 850 mm
- Material
- Steel
- Number of height units
- 3
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481871763
- SAP 1200547263
- Code 82880155
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F93150 ACTI9 IC60L Miniature Circuit Breaker 1P 50 A, Curve B
Schneider Electric
NG125L/D 80-3 Modular Power Switch
18856
Schneider Electric
2 Ronis 1 key + kit MTZ2/3 spare
LV864938SP
Schneider Electric
Varistor + LED 24/60VAC
RZM021BN
Schneider Electric
Zelio Logic Extension 6I/4O 24V (SR3XT101B)
Schneider Electric
Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M25, 4 cut-outs 22mm, 80 x 220 x 77 XAPD4504
Schneider Electric
SOPP Push-Button Head Green Ø30mm
ZB4BC34
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, pushbutton red with boot and legend insertion XB4BP482GEX
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS03333?
- LVS03333 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS03333.
- What is the HS code for LVS03333?
- The customs tariff (HS) code for LVS03333 is 8538.90.
- Who manufactures LVS03333?
- LVS03333 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS03333?
- Yes — the LVS03333 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS03333?
- The minimum order quantity is 1.
- Is LVS03333 available?
- Yes — LVS03333 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
