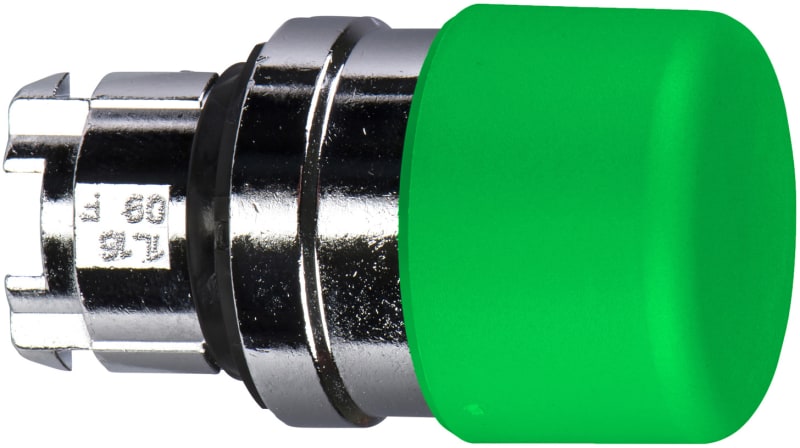

SOPP Push-Button Head Green Ø30mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB4BC34 Mushroom Push-Button Head Green Ø30mm.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BC34
- EAN / GTIN
- 3389110888393
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Diameter
- 30 mm
- Range of product
- Harmony XB4
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB4
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Green mushroom Ø 30 mm, unmarked
- Cap/operator or lens colour
- Green
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 52 mm
- Mechanical durability
- 5000000 cycles
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; UL 508; JIS C8201-5-1; EN/IEC 60947-5-5; CSA C22.2 No 14; JIS C8201-1
- Product certifications
- CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Green
- Suitable for lighting
- No
- Unlocking method
- None
- Spring-return
- Yes
- Diameter cap
- 30 mm
- Suitable for emergency stop
- No
- Type of button
- High
- Colour front ring
- Chrome
- With lighting
- No
- Degree of protection (IP)
- IP66
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110888393
- SAP 1000086859
- Code 8578967
Product Documentation
