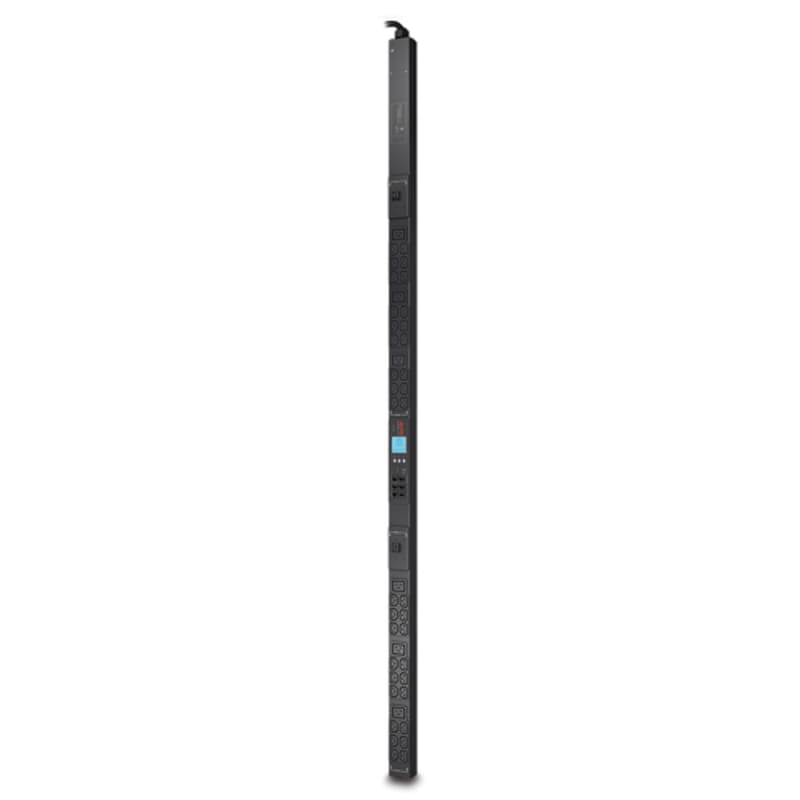

Schneider Electric APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets AP8841

Schneider Electric AP8841 APC by Schneider Electric.

Manufacturer part number (MPN)

AP8841

EAN / GTIN

0731304277002

Sales unit

pcs

Presentation

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.

Colour

Black

Product or component type

PDU

PDU type

Metered

Cord length

2.9 m

Number of cables

1

Provided equipment

Installation guide; Rack mounting brackets; Serial configuration cable; Safety guide

Input Voltage

200 V; 208 V

Height

1791 mm

Width

56 mm

Output Voltage

200 V; 208 V

Depth

44 mm

Product weight

6.84 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

NEMA L6-30P

mounting mode

Rack-mounted

Rack units

0U

USB compatible

No

Mounting position

Vertical

[In] rated current

24 A

permissible voltage

200…240 V

Input current limits

30 A

Load capacity

4992 VA

Network frequency

50/60 Hz

Outlet type and quantity

36 IEC 60320 C13 ; 6 IEC 60320 C19

Product certifications

METI Denan; PSE; VDE

Standards

CSA C22.2 No 60950; IEC 60950; UL 60950-1

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

200 cm

Package 1 Width

10.7 cm

Package 1 Length

16.2 cm

Package 1 Weight

8.47 kg

Country of origin

IN

Warranty (in months)

24

Nominal current

30 A

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Cable length

3 m

Number of C13 socket outlets

36

Number of C19 socket outlets

6

Length

44 mm

Supply voltage

208 V

Overvoltage category

1

Interface ethernet

Yes

HS Code

8537.10
