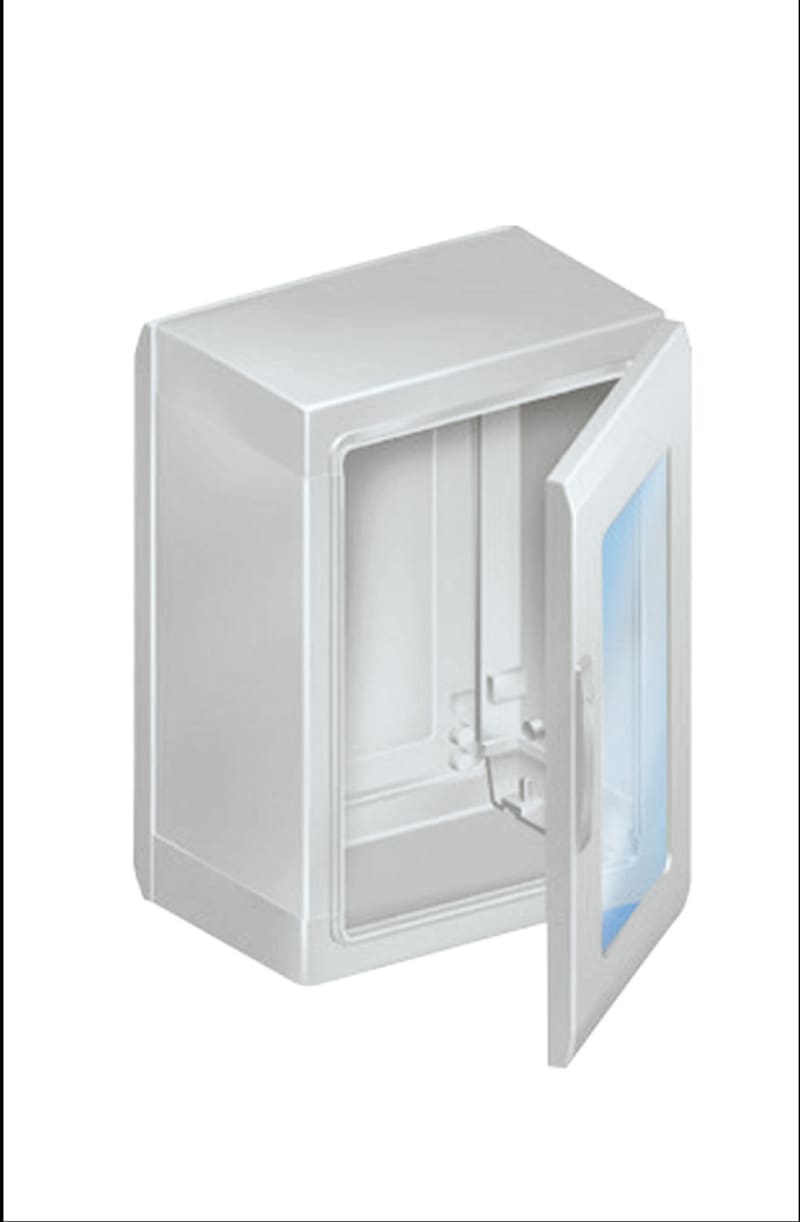

Schneider Electric Floor standing encl. polyester vers.PLA compl.sealed 500X750X320 IP65 glazed NSYPLA573TG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLA573TG THALASSA 7035 500x750x320 IP65 gl.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLA573TG
- EAN / GTIN
- 3606480774966
- Sales unit
- pcs
- IP rating
- IP65
- Dimensions
- 500×750×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLA
- Nominal height
- 500 mm
- Nominal width
- 750 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door
- Body type
- Sealed top and bottom part assembled with side parts
- Door type
- Transparent front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points lock, 5 mm double-bar
- Accessibility for operation
- Rear; Front
- Removable parts
- Door by hinges; Rear panel by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- UL 508 A; IEC 62208
- NEMA degree of protection
- NEMA 3R; NEMA 3; NEMA 12; NEMA 3S; NEMA 2; NEMA 5; NEMA 1; NEMA 3X; NEMA 13
- Product certifications
- UL/cUL listed; Veritas; DNV Marine
- Electrical insulation class
- Class II
- IP degree of protection
- IP65 conforming to IEC 60529 (completely sealed)
- IK degree of protection
- IK08 conforming to IEC 62262 (glazed door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 9
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 500 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK08
- Degree of protection (IP)
- IP65
- Suitable for outdoor set-up
- Yes
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Untreated
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480774966
- SAP 1000752466
- Code 8489388
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric standard analog input kit - Modicon STB - +/- 10 V - 2 I -11 bits + sign STBAVI1270K
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge, VRLA, 7AH, 12V DC, 2-Year warranty APCRBCV210
Schneider Electric
Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M25, 6 cut-outs 22mm, 80 x 175 x 51,5 XAPD3206
Schneider Electric
Schneider Electric Socket, mixed contact, 16 A, relay type RPM4, screw clamp terminals, 250 V AC RPZF4
Schneider Electric
Schneider Electric Motor circuit breaker,TeSys Deca frame 3,3P,9-13A,thermal magnetic,EverLink terminals GV3P13
Schneider Electric
Cablepl. 7035 FOR1250X320 PLA
NSYECPLAZ123G
Schneider Electric
Schneider Electric braking resistor - 16 ohms - 2.2 kW - IP20 VW3A7743
Schneider Electric
Schneider Electric LC2D09BNE TeSys Deca Reversing Contactor, 3-Pole 9 A AC-3, 24–60 V AC/DC Coil
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYPLA573TG?
- NSYPLA573TG can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYPLA573TG.
- What is the HS code for NSYPLA573TG?
- The customs tariff (HS) code for NSYPLA573TG is 9403.70.
- Who manufactures NSYPLA573TG?
- NSYPLA573TG is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYPLA573TG?
- Yes — the NSYPLA573TG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYPLA573TG?
- The minimum order quantity is 1.
- Is NSYPLA573TG available?
- Yes — NSYPLA573TG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
