Schneider Electric Cable passage IP65 w/o connectors, 17 entries. NSYTSA2417SE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTSA2417SE Cable felns sys24/17e u.plug.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTSA2417SE
- EAN / GTIN
- 3606480168239
- HS code
- 8544.42
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Quick entrance plate
- Accessory / separate part category
- Cable management accessory
- Device application
- Multi-purpose
- Range compatibility
- PanelSeT S3D compact enclosure; PanelSeT CRN compact enclosure; PanelSeT S3CM control enclosure; PanelSeT SBM SBM industrial box; PanelSeT PLA PLA suitable enclosure; PanelSeT PHD suitable enclosure; PanelSeT PLM PLM compact enclosure; PanelSeT PLS PLS insulating modular box; PanelSeT S3HD compact enclosure
- Device composition
- 1 fixing elements; 1 plate
- Quantity per set
- Set of 1
- Mounting support
- Cable gland plate; Body of enclosure
- Material
- Polyamide
- Fixing mode
- By fixing element
- Total cable entry number
- 17
- Cable entry number
- 17 x 5…9.2 mm
- Height
- Real: 14 mm
- Width
- Real: 146 mm; Cut-out: 112 mm; Fixing center: 130 mm
- Depth
- Real : 58 mm; Cut-out : 36 mm; Fixing centre : 32 mm
- Product weight
- 0.164 kg
- IP degree of protection
- IP65
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 400
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480168239
- SAP 1000470324
- Code 8579919
Product Documentation
More from Schneider Electric
Schneider Electric
Stainless belegg for cover floor (INS52157)
Schneider Electric
Schneider Electric motor-mechanism - MCH - 200..240 V AC 48527
Schneider Electric
Schneider Electric Modicon TM3 - 4 analog / temperature inputs (screw) 24VDC TM3TI4
Schneider Electric
FDP kartskap A3 (FFS00704650)
Schneider Electric
Phase isolasjonsplat 4P50/80MM
LA9G4803
Schneider Electric
Schneider Electric Auxiliary terminal shield, MasterPact MTZ1 drawout, 4P, 630A-1600A, spare part LV833764SP
Schneider Electric
Schneider Electric discrete input module X80 - 16 inputs - 48 V AC BMXDAI1603
Schneider Electric

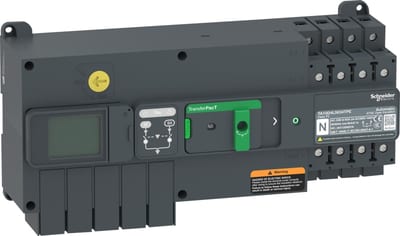

Schneider Electric transfer switch, TransferPacT Active automatic, 32A, 400V, 4P, LCD,frame 100A TA10D4L0324TPE
