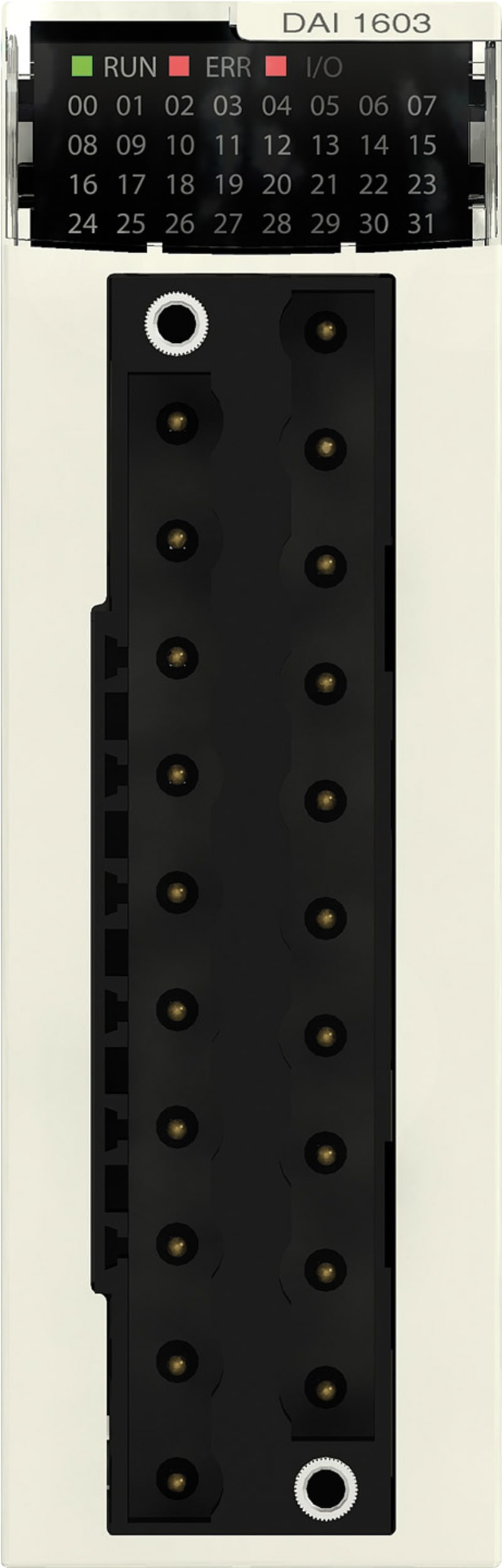

Schneider Electric discrete input module X80 - 16 inputs - 48 V AC BMXDAI1603

Schneider Electric BMXDAI1603 M340 16 in 48VAC, FTB20x0.

Manufacturer part number (MPN)

BMXDAI1603

EAN / GTIN

3595863966923

Sales unit

pcs

Voltage

48 V AC

Range of product

Modicon X80

Product or component type

Discrete input module

Device application

Industrial application

Discrete input number

16

Discrete input voltage

48 V AC for isolated

Discrete input logic

Positive logic (sink)

Input wiring mode

2 or 3 wires

Discrete input current

5 mA at 48 V AC

Voltage state 1 guaranteed

>= 34 V

Voltage state 0 guaranteed

<= 10 V

Current state 1 guaranteed

>= 2 mA

Current state 0 guaranteed

<= 1 mA

Discrete input frequency

50 Hz (47…63 Hz); 60 Hz (47…63 Hz)

Input impedance

9000 Ohm

Insulation resistance

> 10 MOhm 500 V DC

AC activation response time

10 ms

AC deactivation response time

20 ms

Sensor power supply

: 40…52 V

Typical current consumption

76 mA DC

Current consumption

<= 107 mA at 3.3 V DC

Power dissipation in W

4 W

Isolation between channels and bus

1500 V for 1 minute

MTBF reliability

1132000 H

Voltage detection threshold

36 V AC sensor OK

Local signalling

1 LED (green) for module operating (RUN); 1 LED per channel (green) for channel diagnostic; 1 LED (red) for module error (ERR); 1 LED (red) for module I/O

Height

103.7 mm

Width

32 mm

Depth

86 mm

Product weight

0.115 kg

IP degree of protection

IP20

Protective treatment

Standard version

Marking

CE; UKCA; CULus; EAC; RCM

Standards

IEC 61131-2

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 min

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

5…95 % at 55 °C without condensation

Operating altitude

0...2000 m; 2000...5000 m with derating

Pollution degree

2

Vibration resistance

3 gn

Shock resistance

30 gn

Number of Units in Package 1

1

Number of Units in Package 2

15

Warranty (in months)

18

Power consumption

4 W

Supply voltage AC 50 Hz

48 V

Supply voltage AC 60 Hz

48 V

Supply voltage DC

3.3 V

Voltage type (supply voltage)

AC

Number of digital inputs

16

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

5 mA

Permitted voltage at input

48 V

Type of voltage (input voltage)

AC

Type of digital output

None

Permitted voltage at output

48 V

Type of output voltage

AC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

10–20 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Country of origin

France

HS Code

8538.90

• EAN 3595863966923
• SAP 1000204122
• Code 8736304
