Schneider Electric motor-mechanism - MCH - 200..240 V AC 48527
Pricing
Request a quote
We reply within 24 hours
Product Description

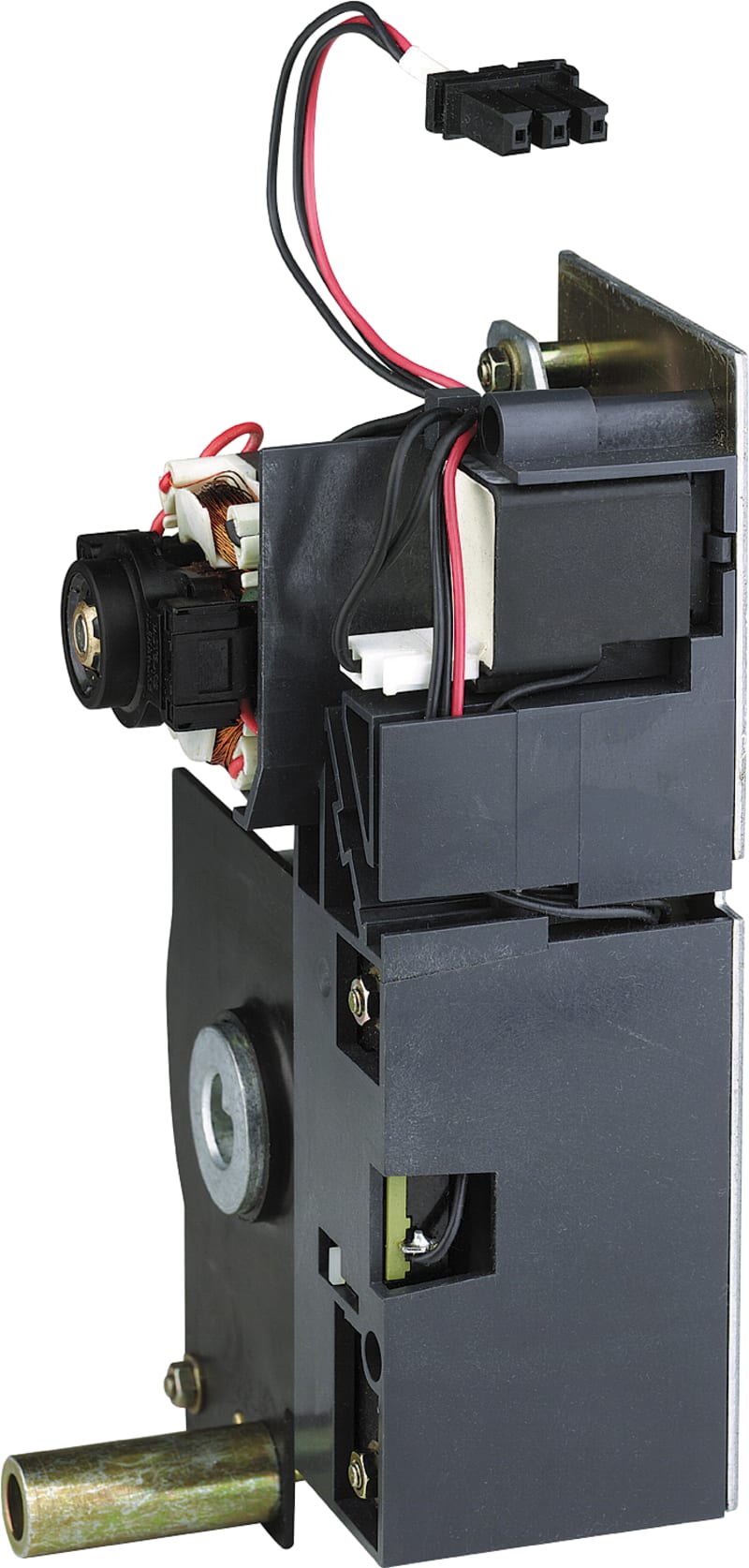

Schneider Electric 48527 Motor mechanism. 200/240V AC For Withdrawable Bry.
Technical Specifications
- Manufacturer part number (MPN)
- 48527
- EAN / GTIN
- 3303430485278
- Sales unit
- pcs
- Device short name
- gear motor MCH
- Product or component type
- Gear motor mechanism MCH
- Device application
- Automatic spring charging
- Range compatibility
- MasterPact NW circuit breaker
- Control type
- Motor mechanism
- [Uc] control circuit voltage
- 200...240 V AC 50/60 Hz
- circuit breaker mounting mode
- Drawout
- Maximum charging time
- 4 s
- Maximum power consumption in VA
- 180 VA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.500 cm
- Package 1 Width
- 14.000 cm
- Package 1 Length
- 38.000 cm
- Package 1 Weight
- 1.917 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 4
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 7.928 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 64
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 138.848 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 200–240 V
- Rated control supply voltage AC 60 Hz
- 200–240 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3303430485278
- SAP 1000419899
- Code 834946
