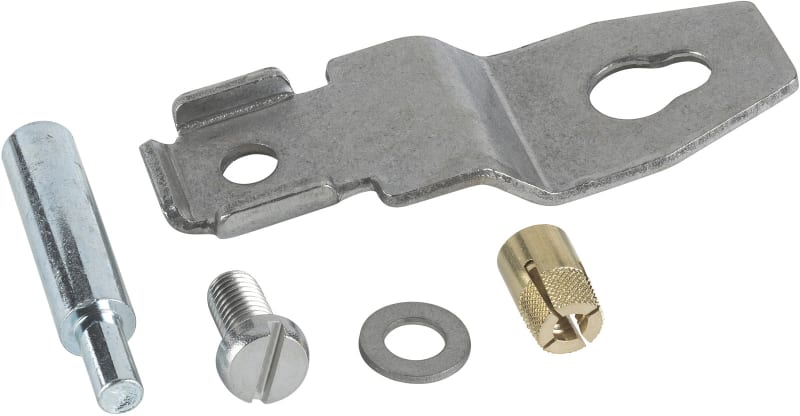

Schneider Electric NSYPFXPLM set of 4 stainless steel wall mounting lugs for PLM3025 to 108
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYPFXPLM set of 4 stainless steel wall mounting lugs for PLM3025 to 108 is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Package quantity: 50 pcs; Range: PanelSeT; Product or component type: Wall fixing support; Device application: Multi-purpose; Mounting location: Top and bottom, on rear of the enclosure.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPFXPLM
- EAN / GTIN
- 3606480191978
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Fixing accessory
- Product or component type
- Wall fixing support
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Top and bottom, on rear of the enclosure
- Range compatibility
- PanelSeT PLM
- Device composition
- fixing screws; 4 lug
- Material
- Stainless steel
- Fixing mode
- Screwed - from the outside location
- Permanent permissible load
- 100 kg horizontal position; 200 kg vertical position
- Height
- 40 mm
- Width
- 155 mm
- Depth
- 80 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 15.500 cm
- Package 1 Length
- 8.000 cm
- Package 1 Weight
- 380.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 50
- Package 2 Height
- 42.500 cm
- Package 2 Width
- 32.000 cm
- Package 2 Length
- 23.000 cm
- Package 2 Weight
- 19.200 kg
- Unit Type of Package 3
- PAM
- Number of Units in Package 3
- 1000
- Package 3 Height
- 85.000 cm
- Package 3 Width
- 100.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 397.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Fastening parts/-set
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480191978
- SAP 1000317942
- Code 8823829
