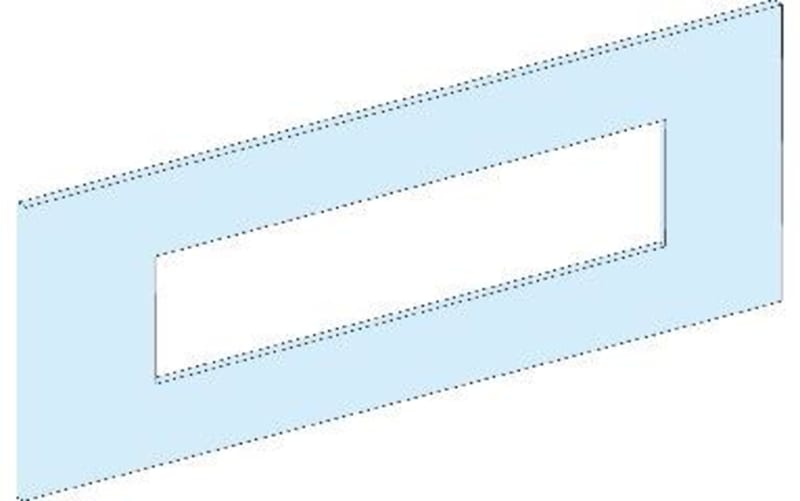

Front plate NSX100-250 Vertical PrismaSeT G/P

Schneider Electric LVS03243 — FR.PL.3-4 NSX/CVS250 V.FIXED TOG/ROT 5M.

Manufacturer part number (MPN)

LVS03243

EAN / GTIN

3606481872944

Sales unit

pcs

Package quantity

10 pcs

Range

PrismaSeT

Range of product

PrismaSeT G; PrismaSeT P

Product or component type

Front plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

Type of front plate

Cut-out

Installed device

ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation

Poles description

4 x 3P: mounting plate support: CVS100...160 vertical installation; 3 x 4P: mounting plate support: CVS100...160 vertical installation; 4 x 3P: mounting plate support: CVS250 vertical installation; 3 x 4P: mounting plate support: CVS250 vertical installation; 4 x 3P: mounting plate support: NSX100...160 vertical installation; 3 x 4P: mounting plate support: NSX100...160 vertical installation; 4 x 3P: mounting plate support: NSX250 vertical installation; 3 x 4P: mounting plate support: NSX250 vertical installation; 2 x 3P: mounting plate support: NSX100...160 vertical installation; 2 x 4P: mounting plate support: NSX100...160 vertical installation; 2 x 3P: mounting plate support: NSX250 vertical installation; 2 x 4P: mounting plate support: NSX250 vertical installation

Operating position

Vertical

Enclosure/cubicle description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm

Connection position

Linergy FC; Direct connection

Number of vertical modules [50 mm]

5

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Material

Steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

500 mm

Height

250 mm

Product weight

0.82 kg

Quantity per set

Set of 1

functional unit

650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed toggle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed toggle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 3P 4 Linergy FC 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 3 Linergy FC 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 3P 4 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 3 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 3P 4 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 3P 4 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 4P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 4P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle vertical 3P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle vertical 4P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle vertical 3P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle vertical 4P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism vertical 3P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism vertical 4P 2 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 4 Linergy FC 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 3P 4 Linergy FC 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 3 Linergy FC 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 4P 3 Linergy FC 6; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 4 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 3 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 3P 4 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism vertical 4P 3 direct 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 3P 4 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 4P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 3P 4 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 4P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 3P 4 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 3P 4 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 4P 3 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 4P 3 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 3P 4 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 4P 3 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle vertical 3P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle vertical 4P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle vertical 3P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle vertical 4P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism vertical 3P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism vertical 4P 2 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 3P 4 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 3P 4 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 4P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 4P 3 Linergy FC 7; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 3P 4 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism vertical 4P 3 direct 9; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 3P 4 Linergy FC 8; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 4P 3 Linergy FC 8; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 without fixed toggle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 without fixed toggle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS100...160 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS100...160 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 without fixed toggle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 without fixed toggle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 without fixed toggle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 without fixed toggle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS250 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS250 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 without fixed toggle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed toggle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 without fixed toggle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX100...160 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 9; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed toggle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 without fixed toggle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed toggle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 without fixed toggle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 without fixed direct front rotary handle vertical 3P 4 direct with long terminal shield 11; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 11; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX250 without fixed direct front rotary handle vertical 4P 3 direct with long terminal shield 11

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

30.500 cm

Package 1 Length

51.000 cm

Package 1 Weight

886.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

9

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

8.858 kg

Unit Type of Package 3

P12

Number of Units in Package 3

108

Package 3 Height

102.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

117.000 kg

Country of origin

FR

Warranty (in months)

18

Suitable for enclosure building width

600 mm

Number of height units

5

Surface finishing

Powder coating

HS Code

8538.90
