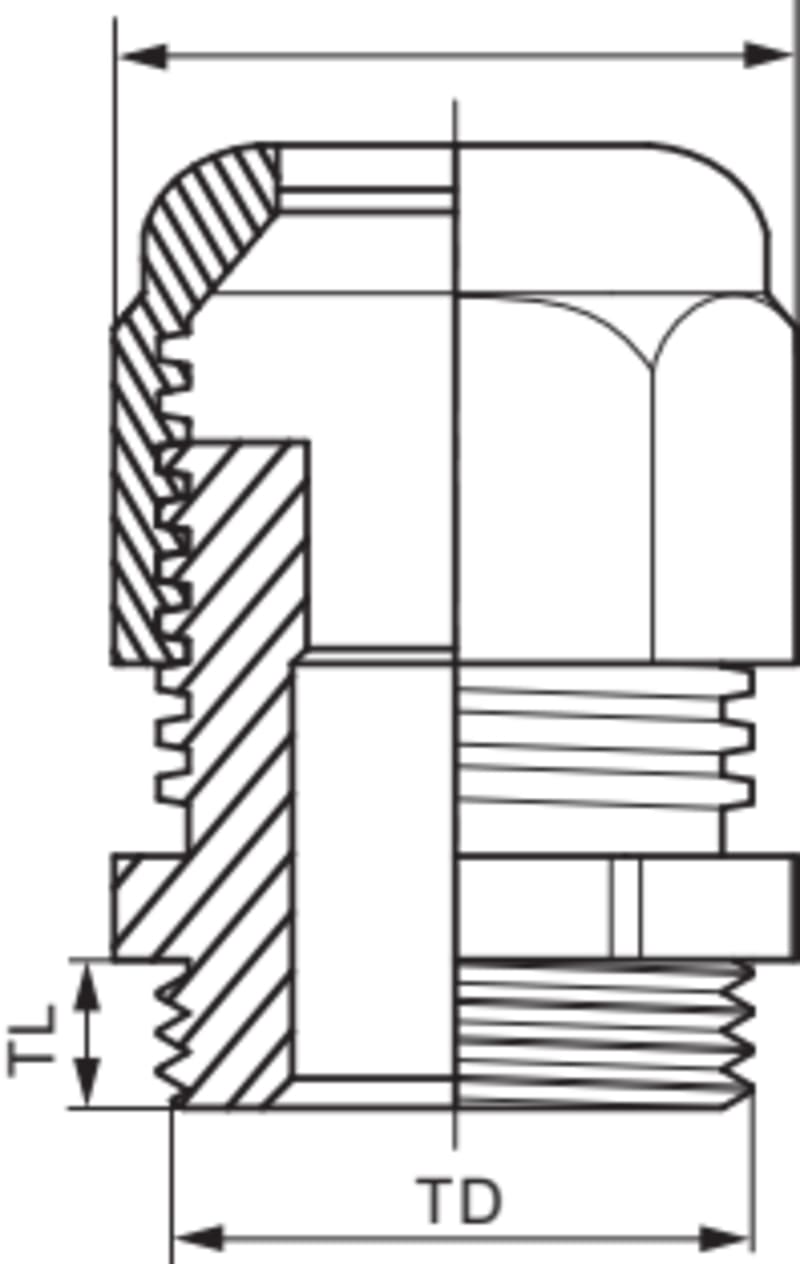

Schneider Electric Thorsman Glands - cable gland - grey - M16 - diameter 4 to 8 ISM71502
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM71502 Thorsman Nipple, M16, 6-12mm, grey.
Technical Specifications
- Manufacturer part number (MPN)
- ISM71502
- EAN / GTIN
- 3606480077197
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP68
- Thread size
- M16
- product range
- Thorsman Glands
- product type
- Cable gland
- colour
- Grey (RAL 7035)
- quantity per package
- Set of 20
- Material
- PA6
- ISO thread
- M16
- Cable outer diameter
- 4…8 mm
- IP-Class
- IP68
- operating temperature
- -30…80 °C permanently; -30…150 °C intermittently
- Warranty (in months)
- 18
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 16
- Pitch thread
- 2 mm
- Thread length
- 9 mm
- Wrench width
- 16 mm
- Hexagon angular dimension
- 12 mm
- Suitable for cable diameter
- 4–8 mm
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Halogen free
- Yes
- Glass-fibre reinforced
- Yes
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- Yes
- With locknut
- Yes
- Snapping in opening
- No
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Type of sealing
- Membrane
- Separable screw gland
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480077197
- SAP 1200058193
- Code 81900128
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Actassi - mixing drawer - 50 dB - 312 M3/h NSYAVD1U312T
Schneider Electric

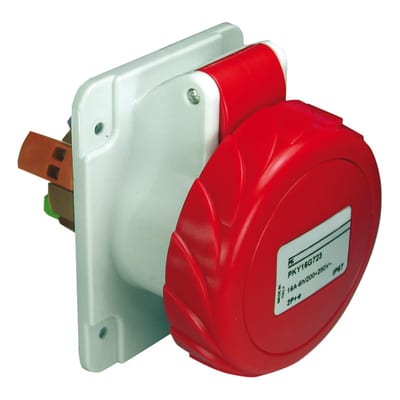

Schneider Electric PratiKa socket - fast - straight - 16A - 3P + E - 380...415 V AC - panel PKY16G734
Schneider Electric

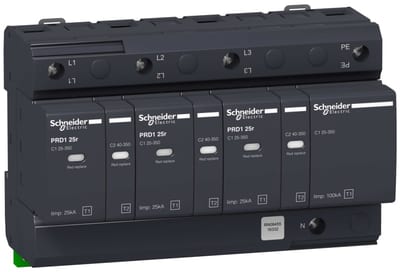

Ov.sp.protection PRD1 25R
16332
Schneider Electric

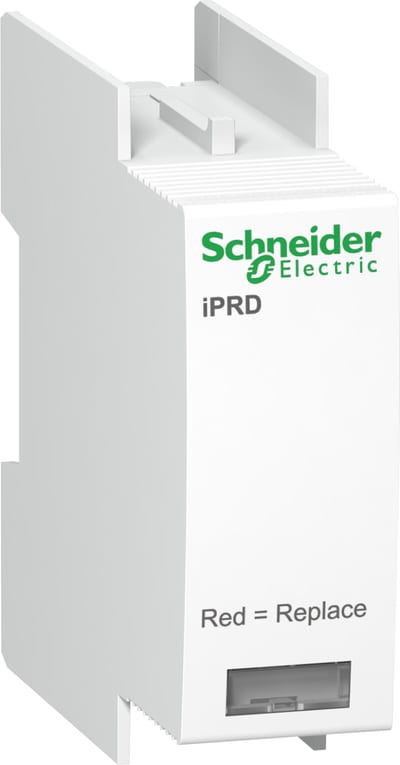

C465 RES.Plug IPRD65 IT 460V
A9L65122
Schneider Electric

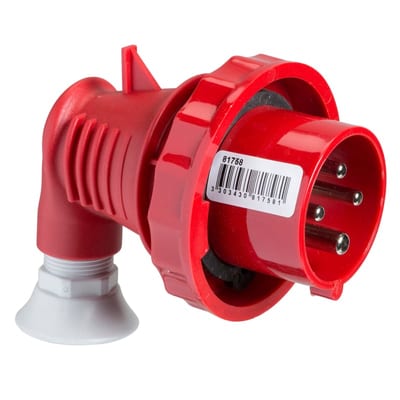

Plug, 90O 16A 4P+J 400VIP67
81759
Schneider Electric

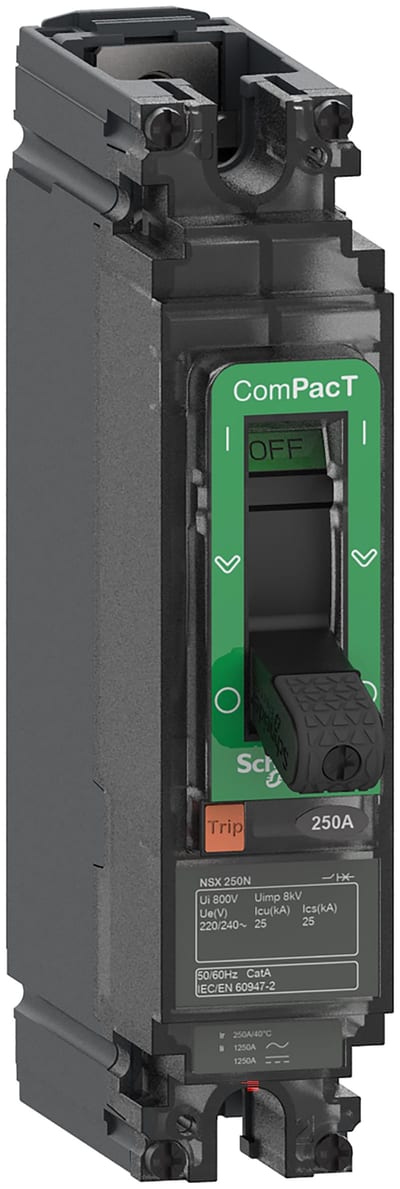

Schneider Electric Circuit breaker, ComPacT NSX160F AC/DC, 18KA/240VAC, 1 pole, TMD trip unit 160A C16F1TM160
Schneider Electric

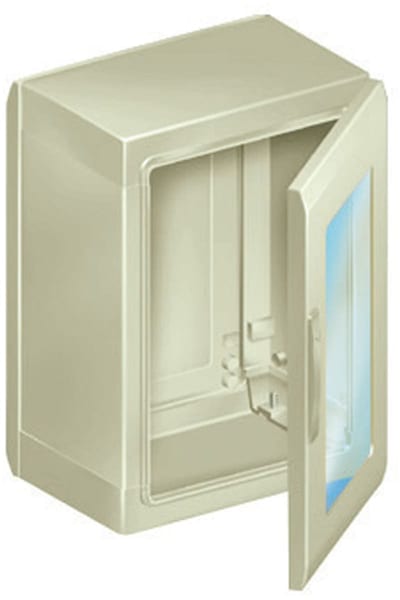

Schneider Electric PLS box, polyester rear, transparent PC cover IP65 18X27X18CM NSYPLS1827G
Schneider Electric

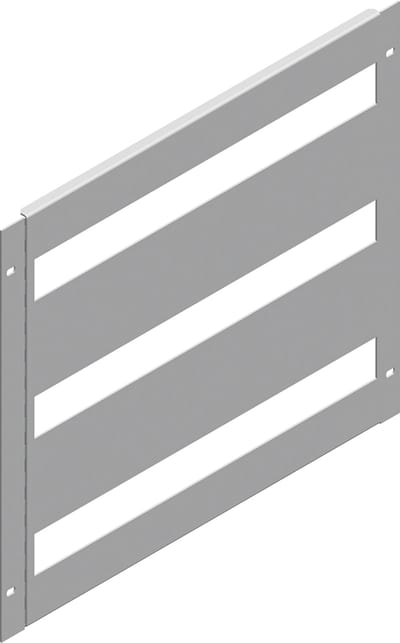

Modular Cover with Hinge (NSYMUCH206)
