Product Description

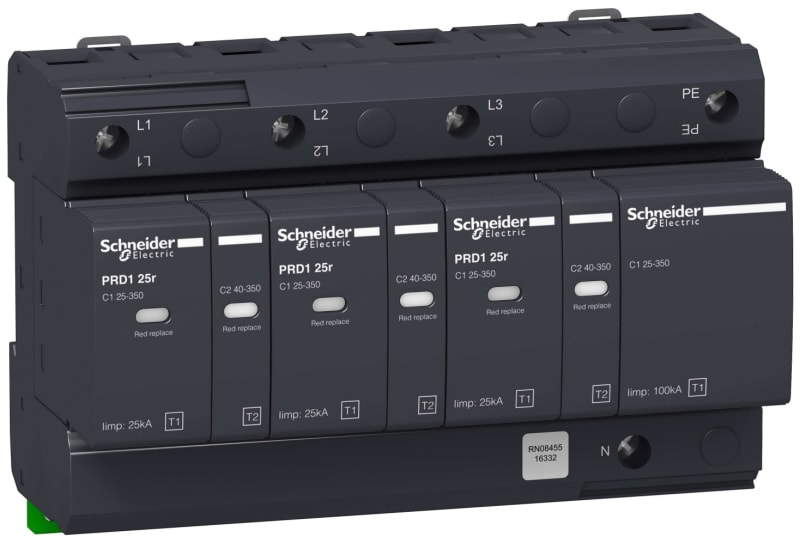

Schneider Electric 16332 Surge protection device Type 2 25kA 3P+N 350V.
Technical Specifications
- Manufacturer part number (MPN)
- 16332
- EAN / GTIN
- 3606480060427
- Sales unit
- pcs
- Package quantity
- 7 pcs
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 100 kA
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- No
- Nominal voltage AC
- 400 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level
- 1.5 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 8 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 35 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480060427
- SAP 1000327059
- Code 8878862
Product Documentation
