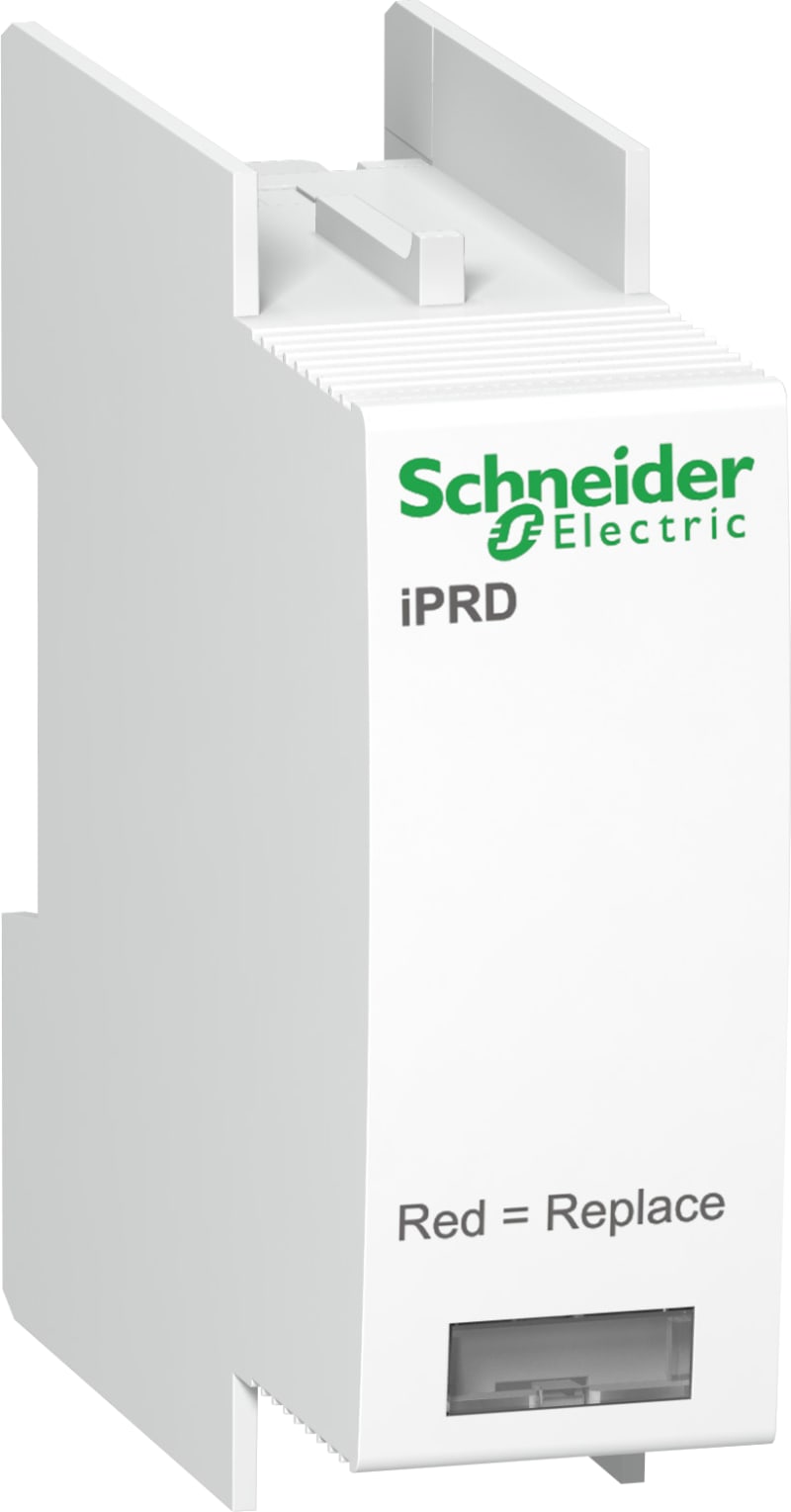

C465 RES.Plug IPRD65 IT 460V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9L65122 C465 Spare Plug iPRD65 IT 460V.
Technical Specifications
- Manufacturer part number (MPN)
- A9L65122
- EAN / GTIN
- 3606480801754
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 460 V
- range of product
- Acti9
- Product or component type
- Cartridge
- Device short name
- C65-460
- Range compatibility
- Acti9 iPRD65r
- Surge arrester type
- Electrical distribution network
- Standards
- EN 61643-11; IEC 61643-11: 2011
- Quality labels
- CE
- Surge arrester class type
- Type 2
- Surge arrester technology
- MOV
- Product destination
- Surge protection device iPRD65r 1P; Surge protection device iPRD65r 3P
- Earthing system
- IT
- [Ue] rated operational voltage
- 230...400 V AC 50 Hz
- Nominal discharge current
- 20 kA
- Maximum discharge current
- 65 kA
- [Uc] maximum continuous operating voltage
- 460 V
- Maximum [Up] voltage protection level
- 2 kV
- Local signalling
- Flag (white/red)
- mounting mode
- Plug-in
- Mounting support
- Into SPD module
- 9 mm pitches
- 2
- Height
- 60 mm
- Width
- 18 mm
- Depth
- 60 mm
- Colour
- White (RAL 9003)
- Material
- PBT (polybutylene terephthalate)
- Response time
- < 25 ns
- IP degree of protection
- IP20 front face:
- Relative humidity
- 5…90 %
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- System configuration
- IT
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 65 kA
- Short-circuit-proof
- Yes
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 460 V
- Max. PV-voltage
- 400 V
- Voltage protection level
- 2.3 kV
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480801754
- SAP 1000708021
- Code 8667297
