Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1800MM, 3 rows, set of 2 NSYSUCR90180
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSUCR90180 Spacial SF/SM - 2 universal rails - Cross-arm - B:90 mm - H:1800 - 3 rows.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSUCR90180
- EAN / GTIN
- 3606485133607
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Universal cross rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - H: 1800 mm
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- On structure of enclosure; Between cross rails
- Mounting support
- Adaptation profile, on SM enclosures
- Installation direction
- Vertical
- Device composition
- fixing elements; 2 cross rails; 4 supports
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 3
- Height
- Nominal: 1800 mm; Useful: 1707 mm
- Width
- 90 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building height
- 1800 mm
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485133607
- SAP 1000470376
- Code 8924034
Product Documentation
More from Schneider Electric
Schneider Electric
Modular blank plate (NSYMPC456)
Schneider Electric
WALL-Mount Cabinet S3D without PL 12X10X3 (NSYS3D121030)
Schneider Electric
Schneider Electric connection sub-base accessory - snap-on terminal block - 10 screw terminals ABE7BV10
Schneider Electric
Neoprene-Button (XACB9214)
Schneider Electric
Fr.connection.top MTZ16 4P fast res
LV847991SP
Schneider Electric
Schneider Electric Muti-function Off-delay Timing Relay - 0.05S…300S - 24…240V AC/DC - 1C/O RE22R1MKMR
Schneider Electric
Schneider Electric additionnal EMC filter S7 M2 - 1-Phase supply - 22 A VW3A31405
Schneider Electric

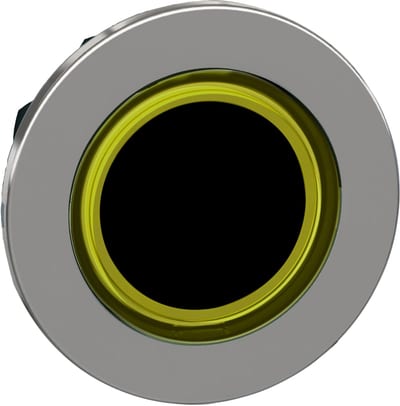

Illuminated Push Button flush yellow ring (ZB4FW983)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
