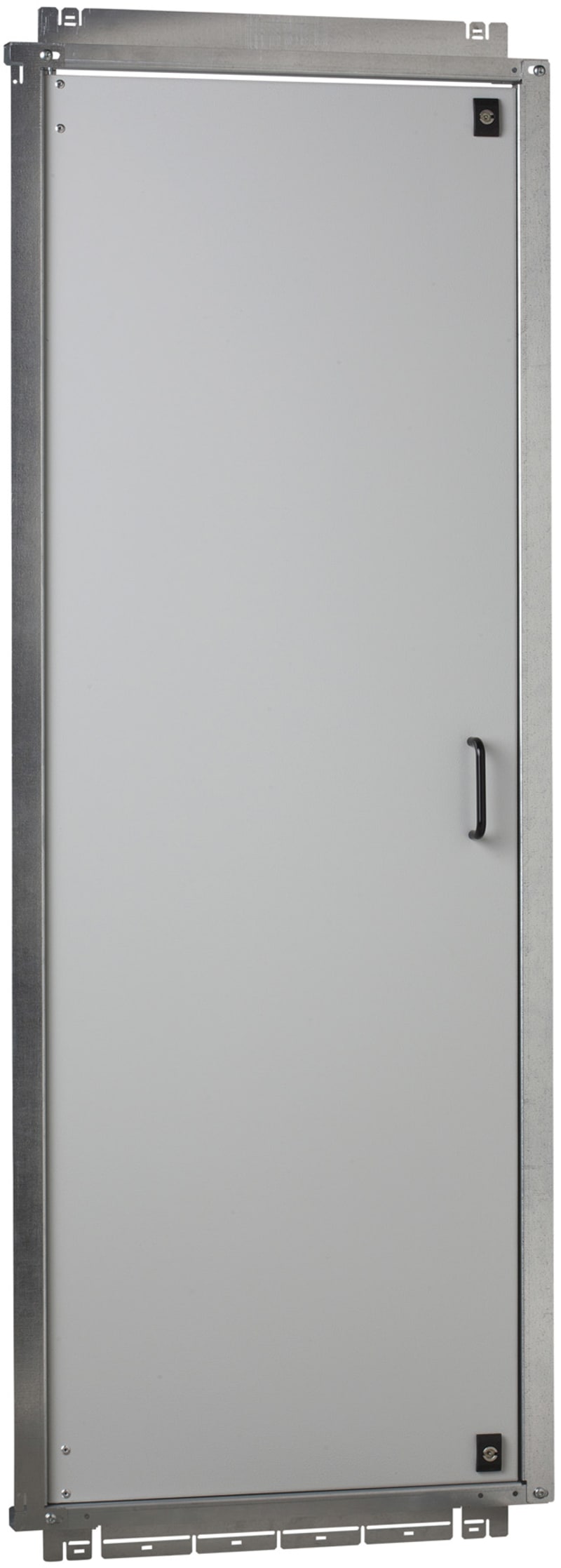

Innerdoor SF SM 1600X800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYID168 Inner door SF SM 1600x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYID168
- EAN / GTIN
- 3606485127002
- Sales unit
- pcs
- Dimensions
- 1600×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front
- Range compatibility
- PanelSeT SMX; PanelSeT SF; PanelSeT SM
- Device composition
- 1 door; 2 lock with 3 mm double bar insert; 1 handle; fixing elements
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 3 mm double bar
- Number of locks
- 2
- Adjustment
- Adjustable in depth every 25 mm
- Door type
- Internal plain
- Door opening side
- Reversible
- Maximum load
- 15 kg/m²
- Height
- Nominal: 1600 mm; Real: 1465 mm
- Width
- Nominal: 800 mm; Real: 700 mm
- Depth
- 19.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Inner door
- EMC-version
- No
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606485127002
- SAP 1000317503
- Code 8775826
Product Documentation
