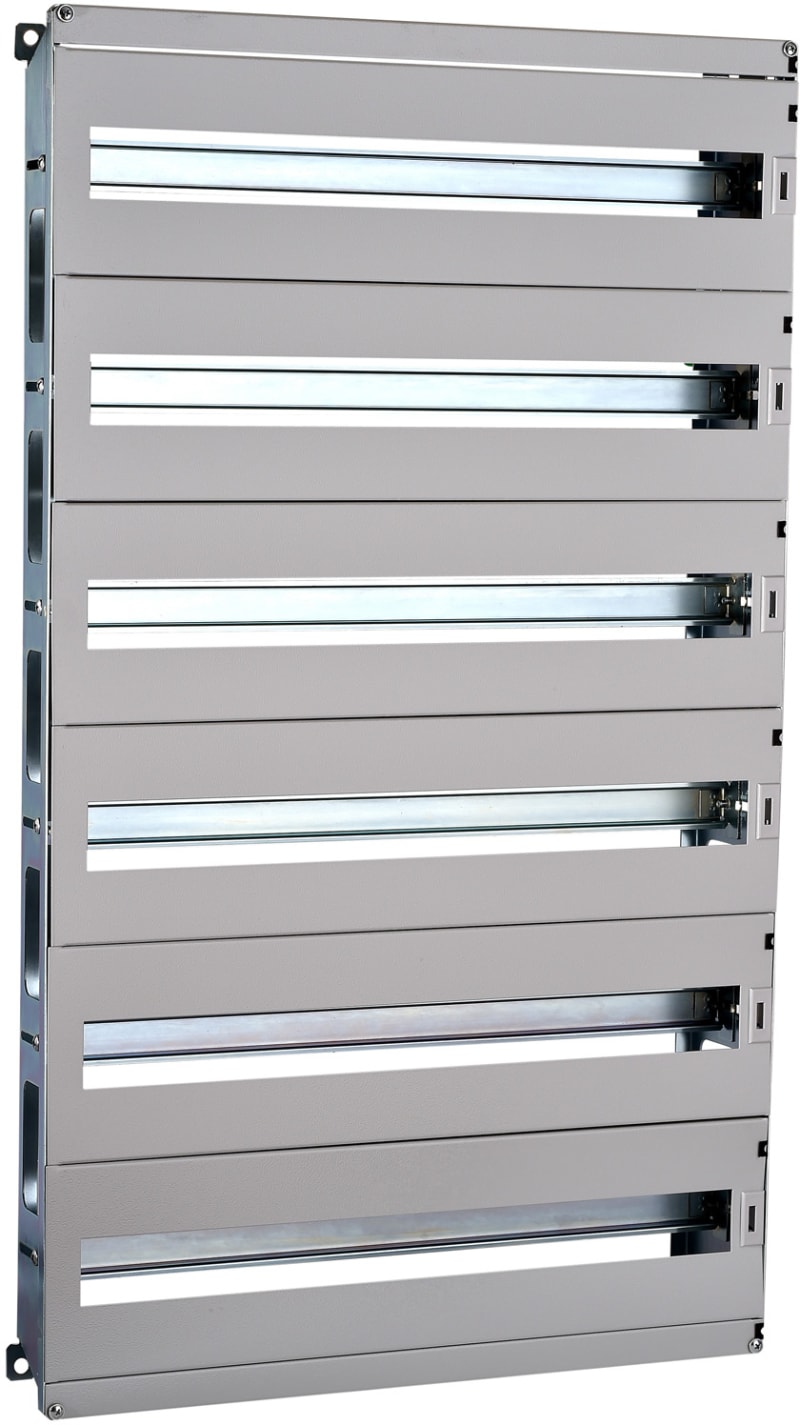

Modular frame 112M H800XW600
Pricing
Request a quote
We reply within 24 hours
Product Description
Modular frame 112 M H800XW600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLM112 EAN / GTIN: 3606480162589 Sales unit: pcs Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Modular distribution application; Multi-purpose Product or component type: Chassis Device short name: DLM For enclosure nominal dimensions: - Mounting location: Step slide; Front of enclosure Range compatibility: PanelSeT S3D; PanelSeT CRN Device composition: 1 chassis structure; 4 front panels with 35 mm DIN rail; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on front and back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 4 Total number of 18 mm modules: 112 Type of front plate: Plain and cut-out plates Number of cut-out: 4 cut-outs Height: 753 mm Width: 555 mm Depth: 101.5 mm Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 11.500 cm Package 1 Width: 57.000 cm Package 1 Length: 77.500 cm Package 1 Weight: 7.932 kg Unit Type of Package 2: P12 Number of Units in Package 2: 20 Package 2 Height: 120.000 cm Package 2 Width: 80.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 172.000 kg Country of origin: ES Warranty (in months): 18 Type of covering: With notch Number of DIN-rails: 4 Number of modular spacings per DIN-rail: 28
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480162589
- SAP 1000470570
- Code 8580126
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Transport handle of PLS NSYATM27
Schneider Electric
Sealed Front plate 4MOD B850MM PrismaSeT G
LVS03854
Schneider Electric
Levelling piece US161 White
5590075
Schneider Electric
END Ferrule 2,5 mm² with Plastic Collar
DZ5CA025
Schneider Electric
Schneider Electric Trip unit TM32D, ComPacT NSX100/160, 3 poles, thermal magnetic protections, 32A rating C103TM032
Schneider Electric
Mounting Plate 18X8 (NSYMP188)
Schneider Electric
Voltagesfors.modVPS M.logic X
LV850060
Schneider Electric
WALL-Mount Cabinet S3D without PL 4X3X2
NSYS3D4320
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDLM112?
- NSYDLM112 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDLM112.
- What is the HS code for NSYDLM112?
- The customs tariff (HS) code for NSYDLM112 is 9403.99.
- Who manufactures NSYDLM112?
- NSYDLM112 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDLM112?
- Yes — the NSYDLM112 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDLM112?
- The minimum order quantity is 1.
- Is NSYDLM112 available?
- Yes — NSYDLM112 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
