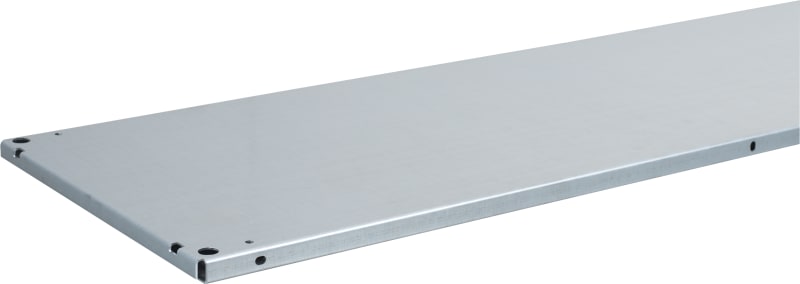

Mounting Plate 18X8 (NSYMP188)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP188 Mounting plate 18X8.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP188
- EAN / GTIN
- 3606485126845
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1800 mm W: 800 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1650 mm; Nominal: 1800 mm; Real: 1697 mm
- Width
- Nominal: 800 mm; Fixing centers: 650 mm; Real: 696 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 71.500 cm
- Package 1 Length
- 172.000 cm
- Package 1 Weight
- 27.500 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 84.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 582.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126845
- SAP 1000089215
- Code 8581553
Product Documentation
More from Schneider Electric
Schneider Electric
Voltagesfors.modVPS M.logic X
LV850060
Schneider Electric
WALL-Mount Cabinet S3D without PL 4X3X2
NSYS3D4320
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X800X500MM, IP55 NSYSFN20850
Schneider Electric
Push-Button Head WHITE, Black PIL
ZB4BA334
Schneider Electric
OL MINI 1835 Internal corner Pure white
ISM14401P
Schneider Electric
Schneider Electric ZB5AA5 Harmony XB5 Push-Button Head — Ø22 mm, Yellow, flush, spring return, non-illuminated, plastic bezel
Schneider Electric

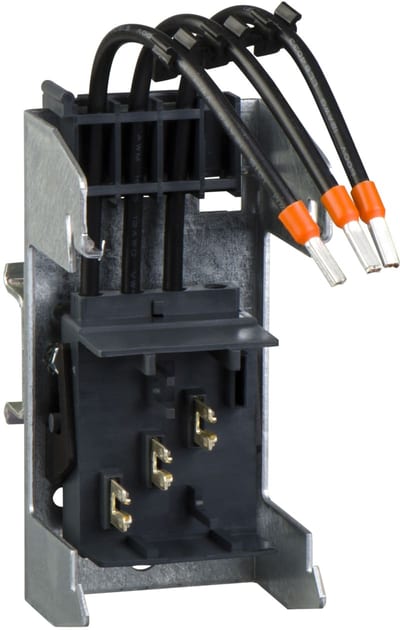

MOUNTING PLATE Single 3P
AK5PA231
Schneider Electric

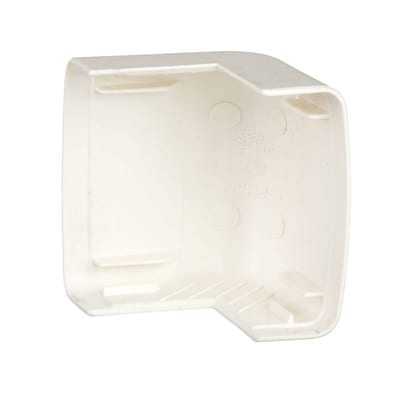

OL External corner 1845 HF PC/ABS Pure white
