MOUNTING PLATE Single 3P
Pricing
Request a quote
We reply within 24 hours
Product Description

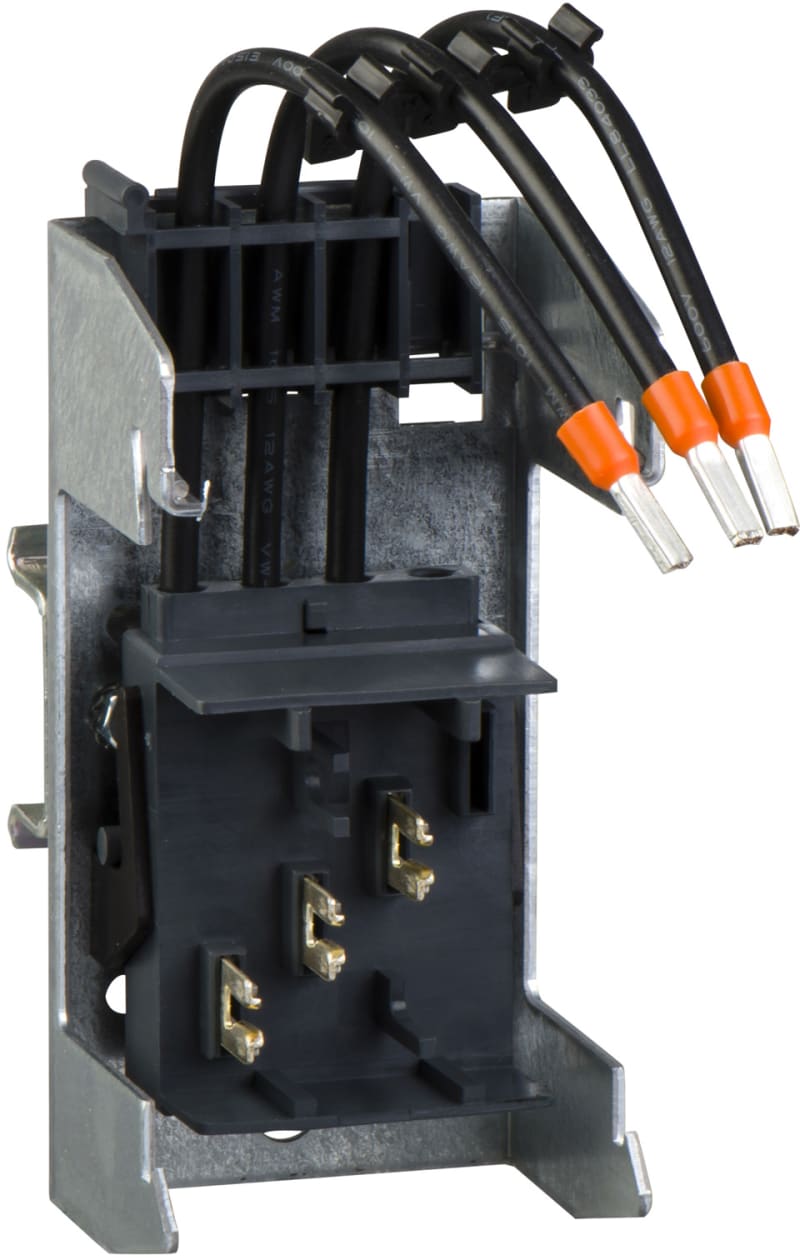

Schneider Electric AK5PA231 Busbar Mounting plate 3P.
Technical Specifications
- Manufacturer part number (MPN)
- AK5PA231
- EAN / GTIN
- 3389110576702
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Number of poles
- 3P
- Range
- Linergy
- Product name
- HK
- Product or component type
- Mounting plate
- Poles description
- 3P
- I²t on activation
- 200000 A².s
- Number of cables
- 3 cable(s) 4 mm² at 105 °C
- [Ith] conventional free air thermal current
- 25 A
- Width
- 54 mm
- Height
- 105 mm
- Depth
- 61 mm
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60439-1
- 9 mm pitches
- 6
- Product weight
- 0.145 kg
- Standards
- IEC 60439
- Product certifications
- DNV; LROS (Lloyds register of shipping); UL; CSA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 40
- Number of Units in Package 3
- 320
- Country of origin
- FR
- Warranty (in months)
- 18
- Colour
- Grey
- RAL-number
- 7021
- With locking
- Yes
- Protection
- None
- Number of conductors (without earthing)
- 3
- Phase selection
- No
- Length
- 54 mm
- Degree of protection (IP)
- IP20
- Branch off type
- Cable
- Rated voltage AC 50 Hz
- 400–690 V
- Rated current AC 50 Hz
- 25 A
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3389110576702
- SAP 1000008879
- Code 8476827
Product Documentation
More from Schneider Electric
Schneider Electric
OL External corner 1845 HF PC/ABS Pure white
ISM14502P
Schneider Electric

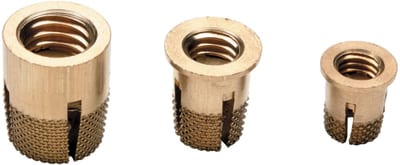

Schneider Electric Expandable M8 nuts to be installed in the bosses of the polyester enclosures NSYTEX8
Schneider Electric

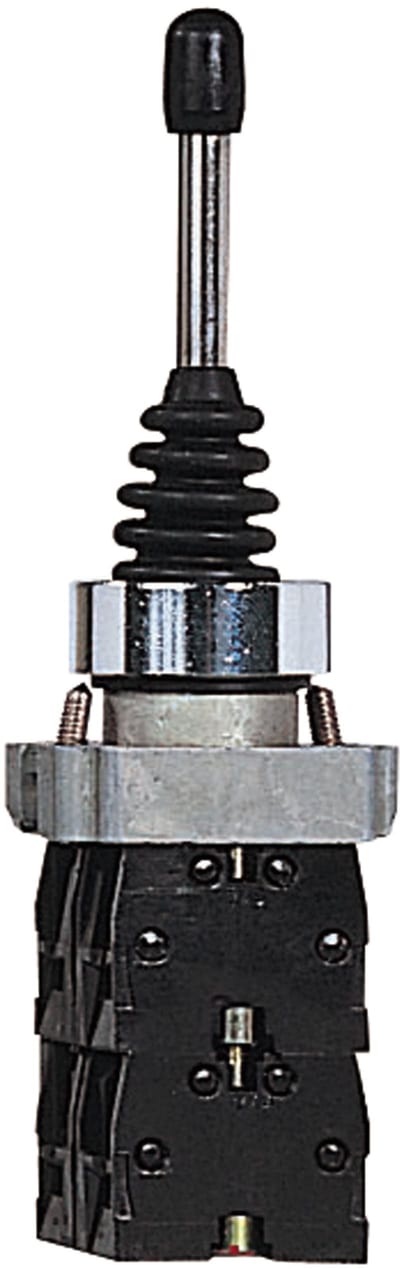

KONTROLLER,Ø22 MM,Metal (XD2PA12)
Schneider Electric

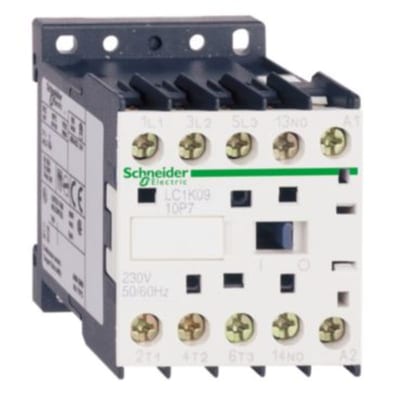

Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3E,440V 12A, 1NO aux, 24V AC coil, screw clamp terminals LC1K1210B7
Schneider Electric

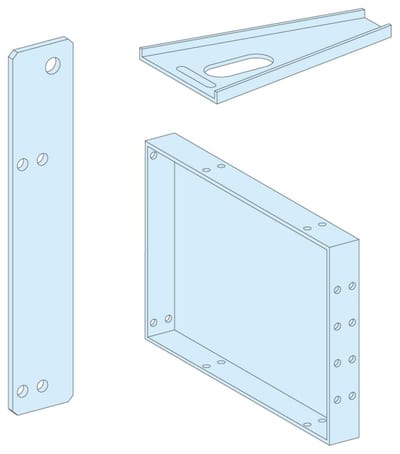

Schneider Electric PrismaSeT G IP55 Lateral Plinth Support H150
LVS08392
Schneider Electric

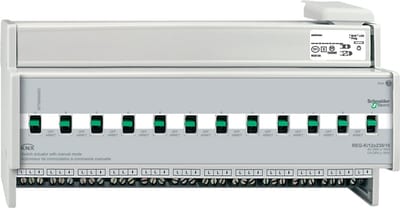

Schneider Electric Switch actuator REG-K/12X230/16 with manual mode, light grey MTN648493
Schneider Electric

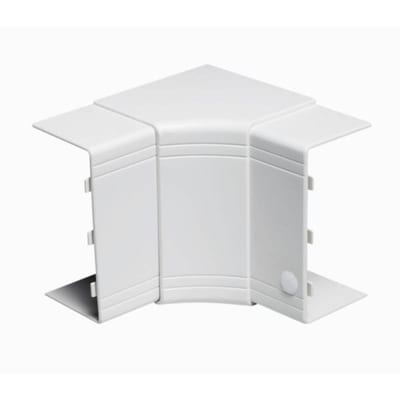

Schneider Electric Inner Corner TIR+ IH100/60 White PVC RAL 9010
5427080
Schneider Electric

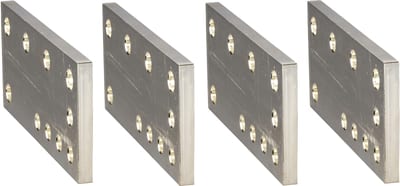

Cableskoadapt. MTZ1 4P
