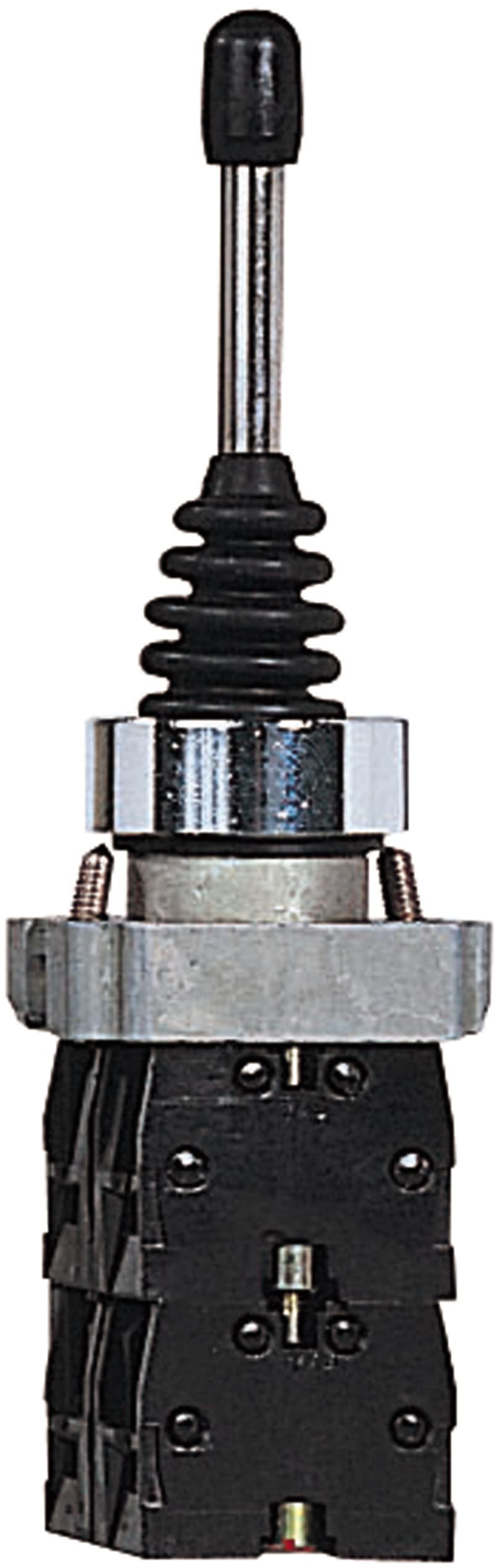

KONTROLLER,Ø22 MM,Metal (XD2PA12)

Schneider Electric XD2PA12 Joystik 2 Direction Without Spring return.

Manufacturer part number (MPN)

XD2PA12

EAN / GTIN

3389110611502

Sales unit

pcs

Package quantity

48 pcs

Diameter

22 mm

Range of product

Harmony XD2

Product or component type

Complete joystick controller

Device short name

XD2

Mounting diameter

22 mm

Bezel material

Chromium plated metal

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 600 V (pollution degree 3) conforming to UL 508; 600 V (pollution degree 3) conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Operator position information

All positions

Notch per direction

1

Operator direction information

2 directions

Contacts type and composition

1 NO for time delayed

Short-circuit protection

10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1

Connections - terminals

Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 0.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 2.5 mm² with or without cable end

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Contact code designation

A600-Q600

Overvoltage category

Class I conforming to IEC 61140

Mechanical durability

1000000 cycles

fixing center

30 x 85 mm

Return

without

Height

122 mm

Depth

40 mm

Product weight

0.115 kg

[Ie] rated operational current

0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300

Standards

IEC 60947-5-1

Product certifications

CSA; UL; LROS (Lloyds register of shipping)

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

5 gn (f= 40…500 Hz) conforming to IEC 60068-2-6

Shock resistance

20 gn conforming to IEC 60068-2-27

IP degree of protection

IP66 conforming to IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

48

Country of origin

FR

Warranty (in months)

18

Number of switch positions

2

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

22 mm

Number of actuation directions

2

Number of normally open contacts per actuation direction

1

With retraction in 0-position

No

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP66

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

79 mm

HS Code

8536.50

• EAN 3389110611502
• SAP 1000014278
• Code 8119284
