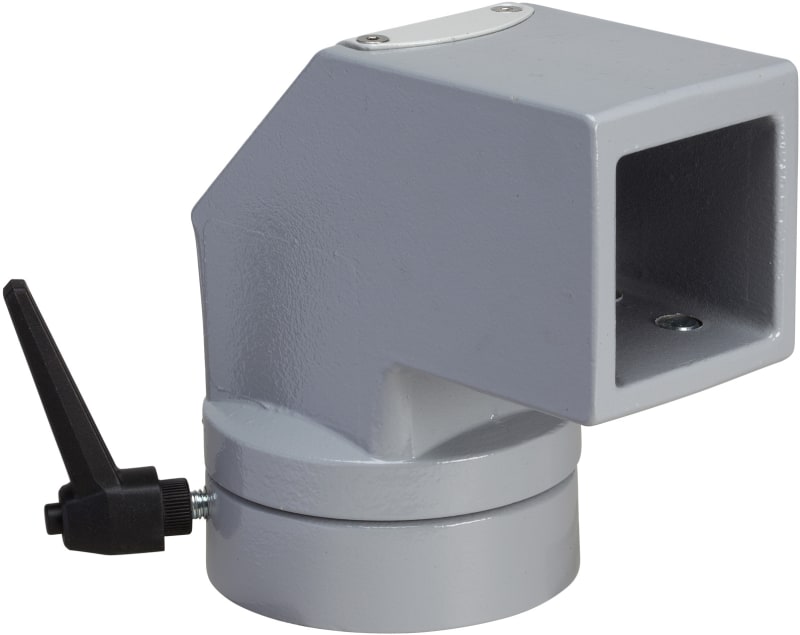

83261 HORR. Roter Bracket 50X50
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCMUCC50 83261 HORR. ROTER BRACKET 50X50.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCMUCC50
- EAN / GTIN
- 3606480213113
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Cable management accessory
- Product or component type
- Bent and rotating enclosure fixing
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- On enclosure, in horizontal position
- Mounting support
- For 50 mm square tube; Option of passing cables through the inside
- Range compatibility
- PanelSeT S3CM
- Device composition
- fixing elements; 1 rotating fixing
- Quantity per set
- Set of 1
- Material
- Aluminium
- Colour
- Grey (RAL 7040)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- Fixing through the support surface by 4 screws - screw type M6
- Operating angle
- 310 °
- Permanent permissible load
- 2 kg
- Height
- 147 mm
- Width
- 154 mm
- Depth
- 180 mm
- Diameter
- 96 mm
- Product weight
- 2 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.000 cm
- Package 1 Width
- 17.000 cm
- Package 1 Length
- 19.000 cm
- Package 1 Weight
- 1.916 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Model
- Component for supporting bracket
- Max. load capacity
- 2 kg
- RAL-number
- 7040
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480213113
- SAP 1000151120
- Code 8117826
