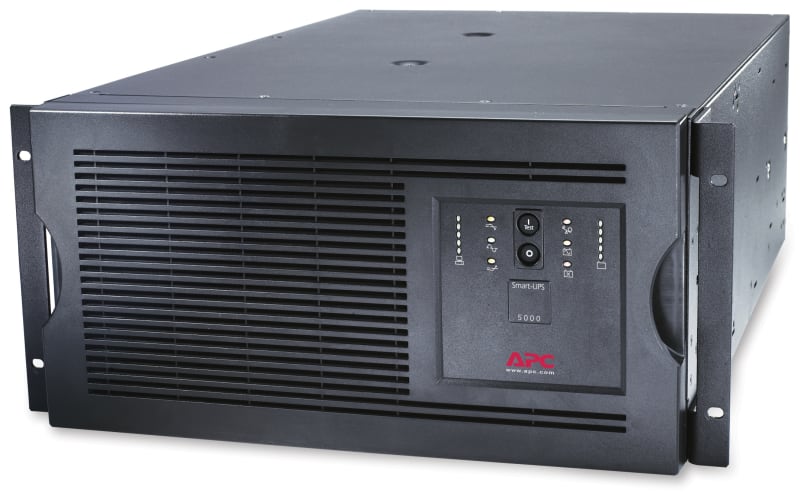

Schneider Electric APC Smart-UPS 5000VA 230V Rackmount/Tower SUA5000RMI5U

Schneider Electric SUA5000RMI5U UPS Line Interactive.

Manufacturer part number (MPN)

SUA5000RMI5U

EAN / GTIN

0731304255321

Sales unit

pcs

Package quantity

4 pcs

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

230 V AC 1 phase

Efficiency at full load

151...302 V adjustable; 160...286 V

Input connection

1 hard wire 3-wire

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Other output voltage

220 V; 240 V

Rated power in W

4000 W

Rated power in VA

5000 VA

Output connection

8 IEC 60320 C13; 4 IEC Jumpers; 2 IEC 60320 C19

Crest factor

3 : 1

Harmonic distortion

Less than 5 % at full load

Maximum configurable power in VA

5000 VA

Maximum configurable power in W

4000 W

Transfer time

2 ms typical : 4 ms maximum

UPS topology

Line interactive

Waveform type

Its wave

Efficiency

96 % (full load)

Output frequency

47...53 Hz for 50 Hz nominal sync to mains

Replacement battery

RBC55

Run Time

View Runtime Graph

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Battery type

Lead-acid internal included

Free slot

0

Preinstalled device

Network management card

Control panel

LED status display with on line : on battery : replace battery and overload indicators

UPS connectivity

Serial port; USB port; Available expansion slot

Surge energy rating

480 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

5U

Color

Black

Height

222 mm

Width

483 mm

Depth

660 mm

Product weight

97.73 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

No

Provided equipment

CD with software; Documentation CD; Installation guide; Rack mounting hardware; Rack mounting support rails; Smart UPS signalling RS-232 cable; User manual; Web/SNMP management card

Number of power modules

0

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; GOST; VDE

Marking

GS Mark

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

53 dBA

Heat dissipation

430 Btu/h

Operating altitude

0...10000 ft

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

3 h

RBC quantity

2

Battery life

3…5 year(s)

Battery charging power

542 W rated

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

PH

Warranty (in months)

24

HS Code

8504.40
