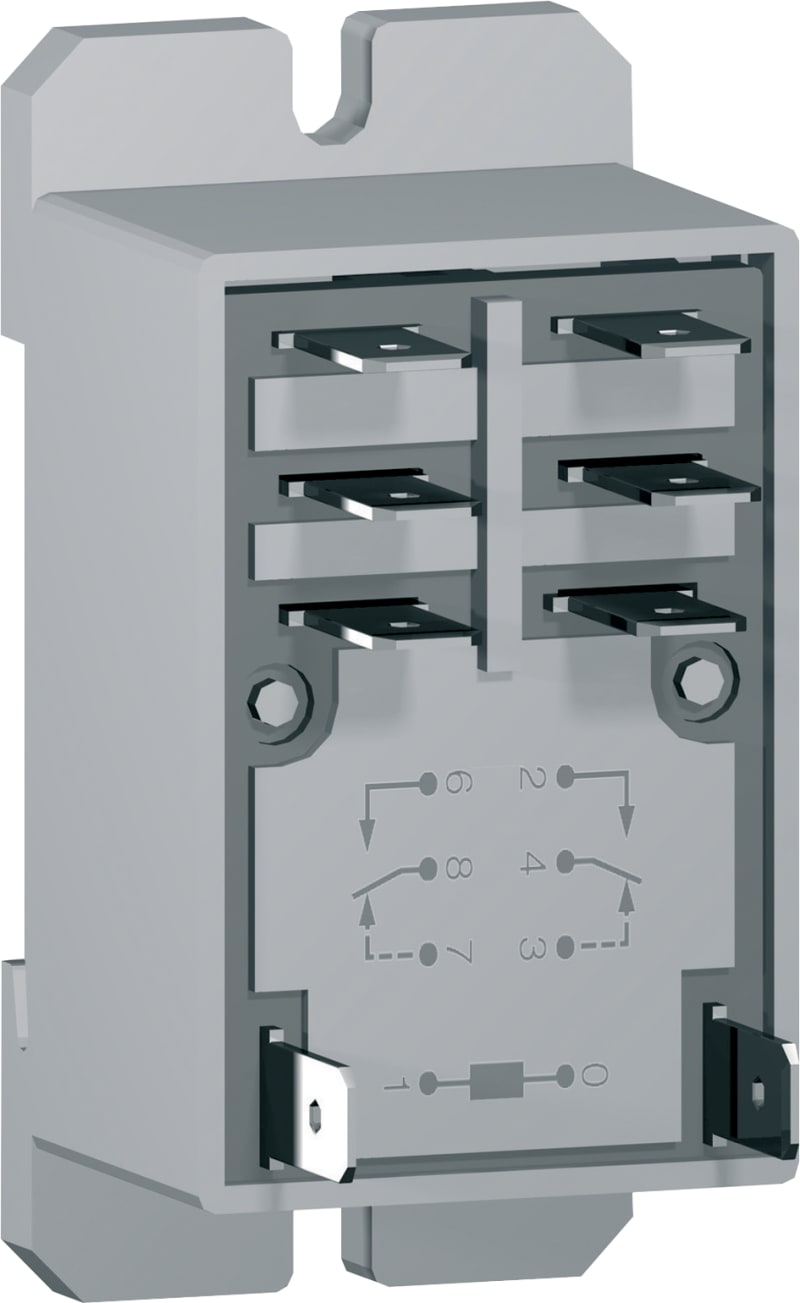

Schneider Electric power relay plug-in - Harmony RPF - 2 CO - 120 V AC - 30 A RPF2BF7

Schneider Electric RPF2BF7 Wattage relay 2CO 120VAC.

Manufacturer part number (MPN)

RPF2BF7 EAN / GTIN: 3389119401609 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 120 V AC Range of product: Harmony Electromechanical Relays Series name: RPF series Product or component type: DIN rail/panel mount relay Contacts type and composition: 2 C/O Relay type: Power relay [Uc] control circuit voltage: 120 V AC 50/60 Hz status LED: Without Control type: Without lockable test button [Ithe] conventional enclosed thermal current: 25 A at -40…55 °C relays side by side without a gap; 30 A at -40…55 °C 13 mm gap between two relays Control circuit voltage limits: 96...132 V [Ie] rated operational current: 30 A at 277 V (AC) NO conforming to UL; 20 A at 28 V (DC) NO conforming to UL; 30 A at 250 V (AC) NO conforming to IEC; 25 A at 28 V (DC) NO conforming to IEC; 3 A at 277 V (AC) NC conforming to UL; 3 A at 28 V (DC) NC conforming to UL; 3 A at 250 V (AC) NC conforming to IEC; 3 A at 28 V (DC) NC conforming to IEC Average consumption: 4 VA at 60 Hz CAD overall width: 33.7 mm CAD overall height: 68.5 mm CAD overall depth: 39.2 mm Compatibility code: RPF [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to UL Maximum switching voltage: 250 V conforming to IEC Drop-out voltage threshold: >= 0.15 Uc minimum switching current: 500 mA Maximum switching capacity: 7500 VA/700 W Average resistance: 4250 Ohm at 20 °C +/- 15 % Mechanical durability: 5000000 cycles Electrical durability: 100000 cycles for resistive load Safety reliability data: B10d = 100000 Operating rate: <= 1200 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 10 % Dielectric strength: 2000 V AC between poles with basic; 4000 V AC between coil and contact with reinforced; 1500 V AC between contacts with micro disconnection [Uimp] rated impulse withstand voltage: 4 kV during 1.2/50 µs Protection category: RT II Pollution degree: 3 Mounting support: DIN rail; Panel Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Contacts material: Silver tin oxide Shape of pin: Flat (faston type) Product weight: 0.082 kg Ambient air temperature for operation: -40…55 °C IP degree of protection: IP40 conforming to IEC 60529 Standards: IEC 61810-1; UL 508; CSA C22.2 No 14 Product certifications: UL; GOST; CE; CSA Ambient air temperature for storage: -40…85 °C Vibration resistance: 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation; 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating Shock resistance: 10 gn for in operation; 30 gn for not operating Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3389119401609
• SAP 1000004923
• Code 831721
